Mount the Outdoor Unit for Wall-Mounted SystemsUpdated a day ago

Introduction

This article explains how to mount the outdoor unit for wall-mounted systems.

This article is for the following articles:

Diamante Essenza (WYT-17)
Diamante Pro (WYT-20)
Quantum Ultra High-Wall (WYT-24)
Quantum Hyperformance (WYT-25)
Quantum Fresh (WYT-FA)

Mount the Outdoor Unit

Install the outdoor unit either on a pad or solid wall using suitable mounting brackets. The anchoring dimensions for the brackets vary per system. Refer to the section below for the anchoring dimensions.

Decide the best position on the wall or ground and leave enough space in order to carry out maintenance easily.

If wall mounting, fasten the supporting brackets to the wall using hardware that is particularly suited for the type of wall. Use the appropriate amount of hardware for the application as well.

Mount the outdoor unit before connecting any pipes or cables.

For information on selecting the outdoor unit installation location, click here.

Mount the Outdoor Unit on Slabs

If installing the outdoor unit on the ground or a concrete mounting platform, follow these steps:

Note: When drilling into concrete, wear eye protection at all times.

Mark the positions for 4 expansion bolts based on the anchoring dimensions in the section below.
Pre-drill holes for the expansion bolts.
Clean concrete dust away from the holes.
Place a nut on the end of each expansion bolt.
Hammer expansion bolts into each hole.
Remove the nuts from the expansion bolts and place the outdoor unit onto the bolts.
Put washers onto each expansion bolt, then replace each of the nuts.
Use a wrench to tighten each nut until snug.

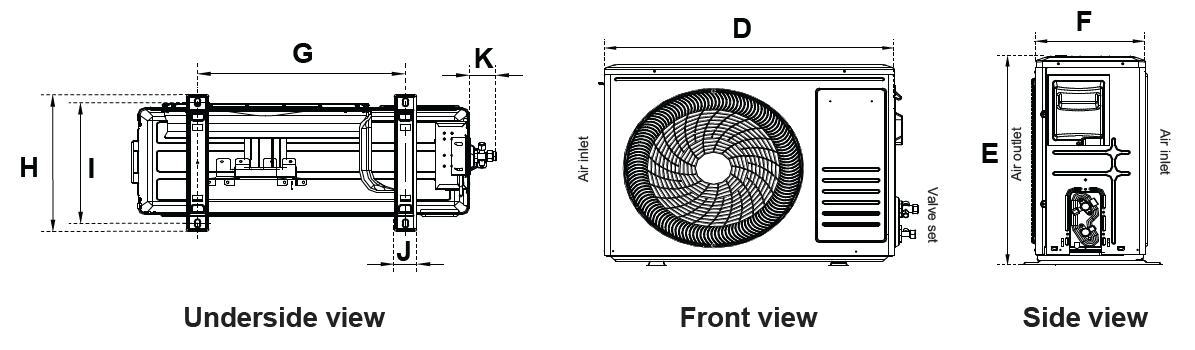

Anchoring Dimensions for Brackets

Diamante Essenza (WYT-17)

Model	D	E	F	G	H	I	J	K
YN012ALUI17RPD (12,000 BTU - 115V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	8-⅞ in	1-⅞ in	2 in
YN012ALUI17RPD (12,000 BTU - 115V)	712 mm	498 mm	234 mm	415 mm	291 mm	225 mm	48.5 mm	52 mm
YN012GLUI17RPD (12,000 BTU - 230V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	8-⅞ in	1-⅞ in	2 in
YN012GLUI17RPD (12,000 BTU - 230V)	712 mm	498 mm	234 mm	415 mm	291 mm	225 mm	48.5 mm	52 mm
YN018GLUI17RPD (18,000 BTU - 230V)	28-⅝ in	21-⅝ in	9-⅞ in	17-⅛ in	12 in	11 in	1-⅞ in	2 in
YN018GLUI17RPD (18,000 BTU - 230V)	726 mm	549 mm	252 mm	434 mm	305 mm	278 mm	48 mm	52 mm
YN024GLUI17RPD (24,000 BTU - 230V)	30-¾ in	23-¾ in	11-⅜ in	20-¼ in	13-¾ in	12-⅜ in	2-⅛ in	2-¼ in
YN024GLUI17RPD (24,000 BTU - 230V)	780 mm	602 mm	288 mm	516 mm	349 mm	314 mm	54 mm	57 mm
YN036GLUI17RPD (36,000 BTU - 230V)	35-⅞ in	31-⅝ in	14-⅛ in	23-⅞ in	16-⅝ in	15-⅜ in	2-⅜ in	2-½ in
YN036GLUI17RPD (36,000 BTU - 230V)	910 mm	803 mm	359 mm	607 mm	421 mm	390 mm	60 mm	63 mm

Diamante Pro (WYT-20)

Model	D	E	F	G	H	I	J	K
YN009ALSI20RPF (9,000 BTU - 115V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	10-⅜ in	1-⅞ in	2-¼ in
YN009ALSI20RPF (9,000 BTU - 115V)	712 mm	498 mm	234 mm	415 mm	290.4 mm	263 mm	48 mm	55.9 mm
YN009GLSI20RPF (9,000 BTU - 230V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	10-⅜ in	1-⅞ in	2-¼ in
YN009GLSI20RPF (9,000 BTU - 230V)	712 mm	498 mm	234 mm	415 mm	290.4 mm	263 mm	48 mm	55.9 mm
YN012ALSI20RPF (12,000 BTU - 115V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	10-⅜ in	1-⅞ in	2-¼ in
YN012ALSI20RPF (12,000 BTU - 115V)	712 mm	498 mm	234 mm	415 mm	290.4 mm	263 mm	48 mm	55.9 mm
YN012GLSI20RPF (12,000 BTU - 230V)	28 in	19-⅝ in	9-¼ in	16-⅜ in	11-½ in	10-⅜ in	1-⅞ in	2-¼ in
YN012GLSI20RPF (12,000 BTU - 230V)	712 mm	498 mm	234 mm	415 mm	290.4 mm	263 mm	48 mm	55.9 mm
YN018GLSI20RPF (18,000 BTU - 230V)	30-¾ in	23-¾ in	11-⅜ in	20-⅜ in	13-¾ in	12-⅜ in	2-⅛ in	2-¼ in
YN018GLSI20RPF (18,000 BTU - 230V)	780 mm	602 mm	288 mm	516 mm	349 mm	314 mm	54 mm	57 mm
YN024GLSI20RPF (24,000 BTU - 230V)	33-¼ in	27-½ in	12-⅞ in	23-⅛ in	14-¾ in	13-¾ in	2-⅛ in	2-¼ in
YN024GLSI20RPF (24,000 BTU - 230V)	845 mm	699 mm	326 mm	586 mm	375 mm	348 mm	55 mm	55.9 mm
YN030GLSI20RPF (30,000 BTU - 230V)	35-⅞ in	31-⅝ in	14-⅛ in	23-⅞ in	16-⅝ in	15-⅜ in	2-⅜ in	2-½ in
YN030GLSI20RPF (30,000 BTU - 230V)	910 mm	803 mm	359 mm	607 mm	421 mm	390 mm	60 mm	63 mm
YN036GLSI20RPF (36,000 BTU - 230V)	35-⅞ in	31-⅝ in	14-⅛ in	23-⅞ in	16-⅝ in	15-⅜ in	2-⅜ in	2-½ in
YN036GLSI20RPF (36,000 BTU - 230V)	910 mm	803 mm	359 mm	607 mm	421 mm	390 mm	60 mm	63 mm

Quantum Ultra High-Wall (WYT-24)

Model	D	E	F	G	H	I	J	K
YN009ALSI24RPG (9,000 BTU - 115V)	29-⅛ in	21-¾ in	10 in	17-⅛ in	12 in	11-¼ in	1-⅞ in	2-¼ in
YN009ALSI24RPG (9,000 BTU - 115V)	741 mm	551 mm	253 mm	434 mm	305 mm	285 mm	48 mm	58 mm
YN009GLSI24RPG (9,000 BTU - 230V)	29-⅛ in	21-¾ in	10 in	17-⅛ in	12 in	11-¼ in	1-⅞ in	2-¼ in
YN009GLSI24RPG (9,000 BTU - 230V)	741 mm	551 mm	253 mm	434 mm	305 mm	285 mm	48 mm	58 mm
YN012ALSI24RPG (12,000 BTU - 115V)	29-⅛ in	21-¾ in	10 in	17-⅛ in	12 in	11-¼ in	1-⅞ in	2-¼ in
YN012ALSI24RPG (12,000 BTU - 115V)	741 mm	551 mm	253 mm	434 mm	305 mm	285 mm	48 mm	58 mm
YN012GLSI24RPG (12,000 BTU - 230V)	29-⅛ in	21-¾ in	10 in	17-⅛ in	12 in	11-¼ in	1-⅞ in	2-¼ in
YN012GLSI24RPG (12,000 BTU - 230V)	741 mm	551 mm	253 mm	434 mm	305 mm	285 mm	48 mm	58 mm
YN018GLSI24RPG (18,000 BTU - 230V)	33-¼ in	27-½ in	12-⅞ in	23-⅛ in	14-¾ in	13-¾ in	2-⅛ in	2-¼ in
YN018GLSI24RPG (18,000 BTU - 230V)	845 mm	699 mm	326 mm	586 mm	375 mm	348 mm	55 mm	55.9 mm
YN024GLSI24RPG (24,000 BTU - 230V)	35-⅞ in	31-⅝ in	14-⅛ in	23-⅞ in	16-⅝ in	15-⅜ in	2-⅜ in	2-½ in
YN024GLSI24RPG (24,000 BTU - 230V)	910 mm	803 mm	359 mm	607 mm	421 mm	390 mm	60 mm	63 mm

Quantum Hyperformance (WYT-25)

Model	D	E	F	G	H	I	J	K
YN009GLSI25RPH (9,000 BTU - 230V)	29-¼ in	21-¾ in	10 in	17-⅛ in	12 in	11 in	1-⅞ in	2-¼ in
YN009GLSI25RPH (9,000 BTU - 230V)	741 mm	551 mm	253 mm	434 mm	305 mm	278 mm	48 mm	56 mm
YN012GLSI25RPH (12,000 BTU - 230V)	31-¼ in	23-¾ in	11-⅜ in	20-⅜ in	13-¾ in	12-⅜ in	2-⅛ in	2 in
YN012GLSI25RPH (12,000 BTU - 230V)	794 mm	602 mm	288 mm	516 mm	349 mm	314 mm	54 mm	51 mm
YN018GLSI25RPH (18,000 BTU - 230V)	33-⅜ in	27-½ in	12-⅞ in	23-⅛ in	14-¾ in	13-⅝ in	2-⅜ in	1-⅞ in
YN018GLSI25RPH (18,000 BTU - 230V)	847 mm	699 mm	326 mm	586 mm	375 mm	347 mm	59 mm	48 mm
YN024GLSI25RPH (24,000 BTU - 230V)	35-⅞ in	31-⅝ in	13-⅞ in	23-⅞ in	16-⅝ in	15-⅜ in	2-½ in	2-⅛ in
YN024GLSI25RPH (24,000 BTU - 230V)	910 mm	804 mm	353 mm	607 mm	421 mm	390 mm	63 mm	54 mm

Quantum Fresh (WYT-FA)

Model	D	E	F	G	H	I	J	K
YN012GLUI25RPQ (12000 BTU - 230V)	29-¼ in	21-¾ in	10 in	17-⅛ in	12 in	11-¼ in	1-⅞ in	2-¼ in
YN012GLUI25RPQ (12000 BTU - 230V)	741 mm	551 mm	253 mm	434 mm	305 mm	285 mm	48 mm	58 mm
