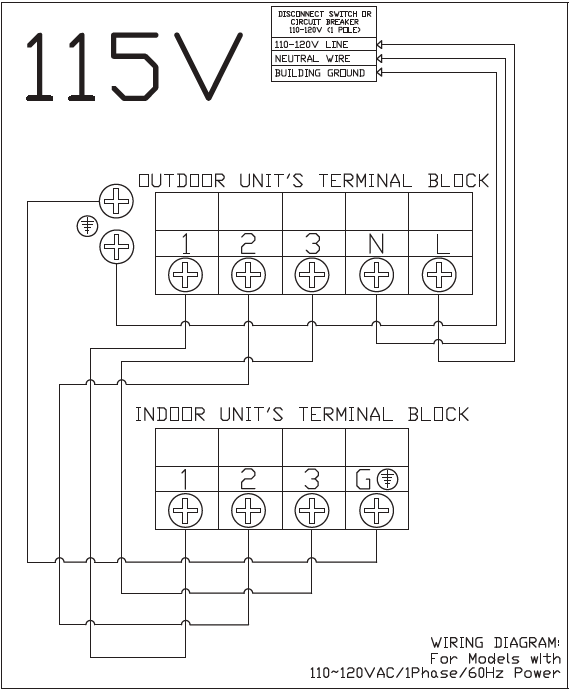

This article provides simplified wiring diagrams for wall-mounted systems.&#xA0;The wiring diagrams are for the following systems:&#xA0;<ul><li id="isPasted"><a href="https://www.pioneerminisplit.com/collections/diamante-essenza-high-wall-series" target="_blank" rel="noopener noreferrer">Diamante Essenza (WYT-17)</a></li><li><a href="https://www.pioneerminisplit.com/collections/diamante-pro-high-wall-series" target="_blank" rel="noopener noreferrer">Diamante Pro (WYT-20)</a></li><li><a href="https://www.pioneerminisplit.com/collections/quantum-ultra-high-wall-series" target="_blank" rel="noopener noreferrer">Quantum Ultra (WYT-24)</a></li><li><a href="https://www.pioneerminisplit.com/collections/quantum-hyperformance-high-wall-series" target="_blank" rel="noopener noreferrer">Quantum Hyperformance (WYT-25)</a></li><li><a href="https://www.pioneerminisplit.com/collections/quantum-fresh-series-breathe-the-difference" target="_blank" rel="noopener noreferrer">Quantum Fresh (WYT-FA)</a></li></ul><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-a066f624-0c6f-44f2-ba6f-9fac73c88a0e-wyt17_wiring_diagram_115v.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-f3c12a04-5e8d-4657-aa11-20fccda7090e-wyt17_wiring_diagram_230v.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-838b6d1e-2a4c-4829-998e-7a35b114636e-wyt17_wiring_diagram_idu_terminalblock.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">

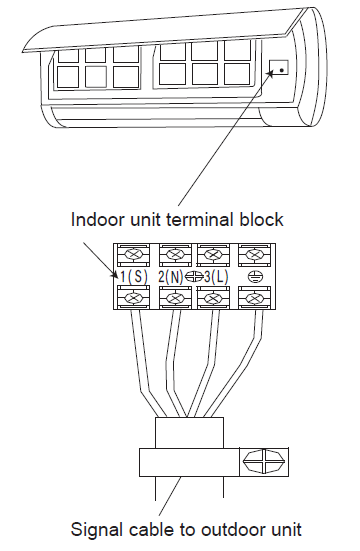

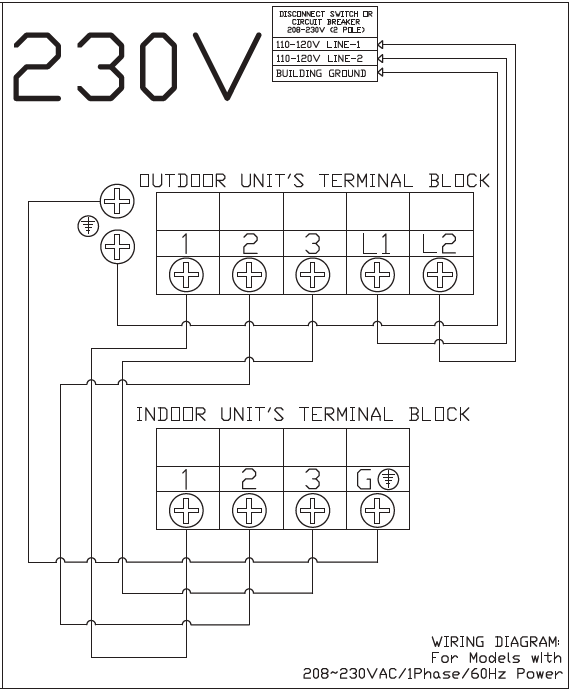

This article provides simplified wiring diagrams for wall-mounted systems.

Simplified Wiring Diagrams for Wall-Mounted Systems
