Quantum Ultra Floor-Ceiling Flex (UYT-24) OverviewUpdated 9 days ago
Introduction
The Quantum Ultra Floor-Ceiling Flex (UYT-24) series is a flexible floor-ceiling mini split system and ideal for both homes and commercial spaces. Smaller units can be floor-mounted or installed low on walls, while larger ones support ceiling suspension.
The floor-ceiling flex series, which has an average 20-SEER2 rating, is factory-precharged with environmentally-friendly R-454B refrigerant.
Each system features automatic capacity control, air-sweeping louvers, multiple comfort modes, remote control, and fresh air intake, which offers versatile, efficient climate control in any setting.

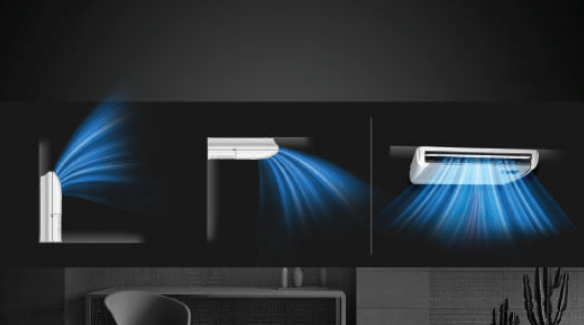

Extra-Wide Airflow
This system offers both vertical and horizontal airflow, and can be easily adjusted using the remote controller to direct high velocity airflow to every corner of the room.

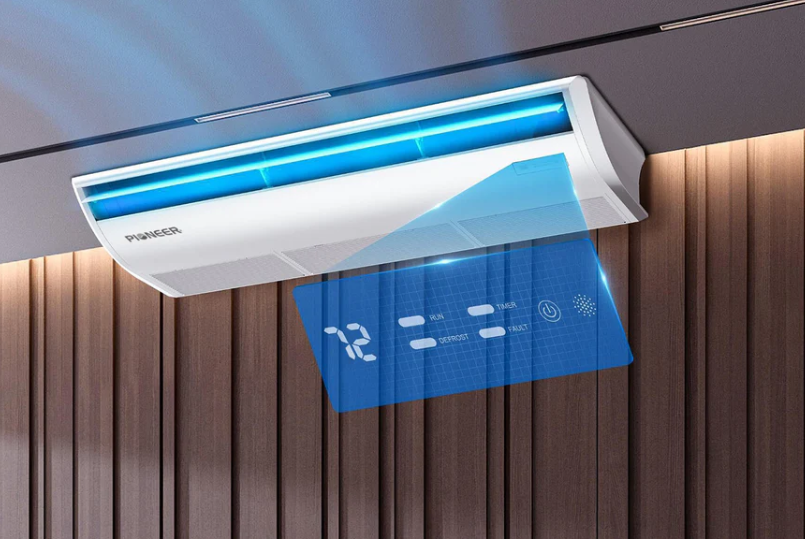

Onboard LED Readout
A sleek and functional LED display allows users to clearly view the temperature settings, running operations, and status codes.

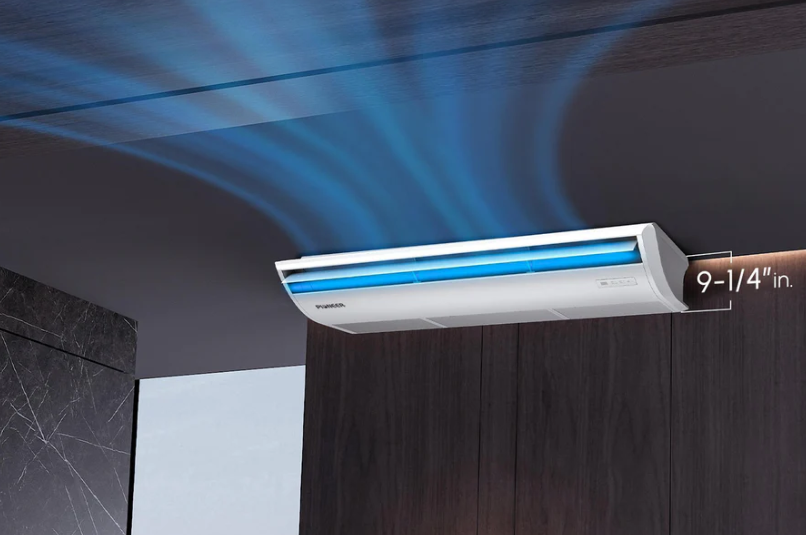

Super Slim Design
Thinner and lighter than ever before, this series offers exceptional durability, while maintaining an industry-leading chassis slimness that blends seamlessly into most rooms.

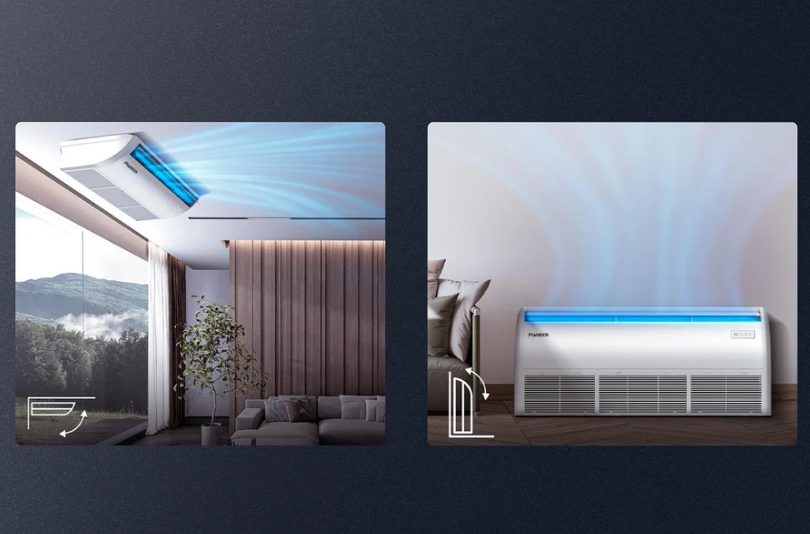

Ultra-Versatile Mounting Options
Thanks to the unique design of the condensate drain pain, this series can be mounted to either the floor or ceiling (even pitched ceilings).
Full System Model Numbers
UYT018GLSI24RL and UYT024GLSI24RL
Indoor Units
UT018GLSILCFHG and UT024GLSILSFHG
Outdoor Units
YN018GLSI24RPG and YN024GLSI24RPG
For more information, see this technical brochure.
System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
No. | Description |
|---|---|
| 1 | Anti-dust air filters |
| 2 | Air return inlet |
| 3 | Air handler body front panel |
| 4 | Supply air outlet |
| 5 | Operation lights/indicators |
| 6 | Infrared receiver |
| 7 | Air handler hanging brackets |
| 8 | Model nameplate |
| 9 | Condensate drain |
| 10 | Refrigerant piping |
| 11 | Air outlet grille |
| 12 | Outdoor unit nameplate |
| 13 | Terminal block cover |
| 14 | Valve protection cover |
| 15 | Gas (Suction) line valve |
| 16 | Liquid line vale |
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system.
Note: Items with an asterisk * may be sold separately and are sometimes supplied by the installer. Therefore, some items could differ in appearance, shape, or length, depending on the particular installation.
| Quantity | Name | Appearance |
|---|---|---|
| 1 | Installation & User manual |  |
| 1 | Warranty card |  |
| 1 | Communication/Signal cable* |  |
| 1 | Insulated copper pipe* |  |
| 1 | Remote controller |  |
| 1 | Remote controller holder |  |
| 2 | Remote controller batteries |  |
| 1 | Outdoor unit rubber pads* (For the feet when ground mounting) |  |
| 1 | Drain pipe assembly |  |
| 1 | Plastic drain joint plug for the outdoor unit (Use only for wall-mounted condensers) |  |
| 1 | Condensate drain hose* |  |
| 1 | Wrapping tape* |  |
| 1 | Wall-hole packing sealant* |  |
| 1 | Wall sleeve* |  |
| 1 | Allen wrench for opening service valves |  |
| 1 | Anti-leak flare sealant gel* |  |
