Indoor Unit Disassembly Guide: Quantum Ultra Universal Floor-Ceiling Flex SystemsUpdated 7 days ago

This article provides steps for disassembling the indoor unit of Quantum Ultra Universal Floor-Ceiling Flex (UYT-24) systems.

Steps

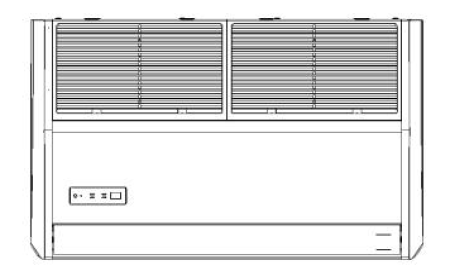

Before Disassembly

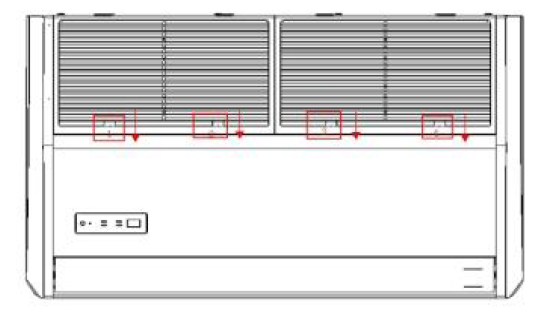

1. Remove the Front Grille

A. Remove the screws that secure the front grille, then push the clips in the direction of the arrow to release them.

B. Open the front grille, then unhook it from the rear clips.

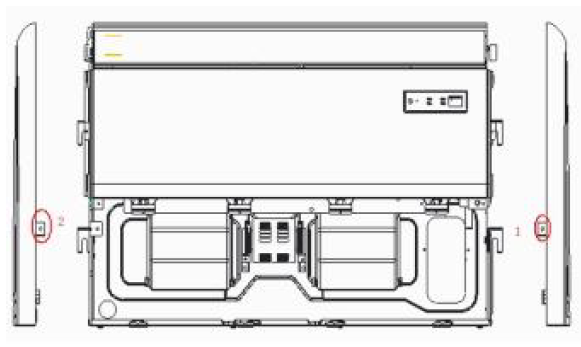

2. Remove the Left and Right Side Panels

A. Remove the screws shown in the image, then unhook the left and right side panels from the clips and remove them.

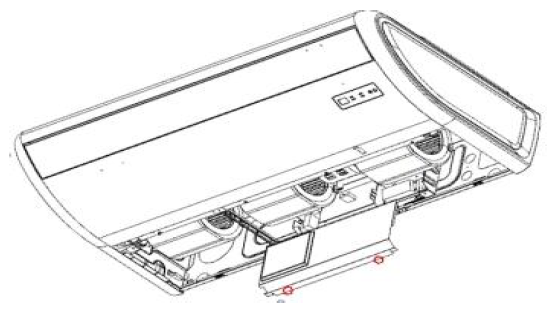

3. Remove the Electric Control Box Cover

A. Remove the screws that secure the electric control box cover, then remove the cover.

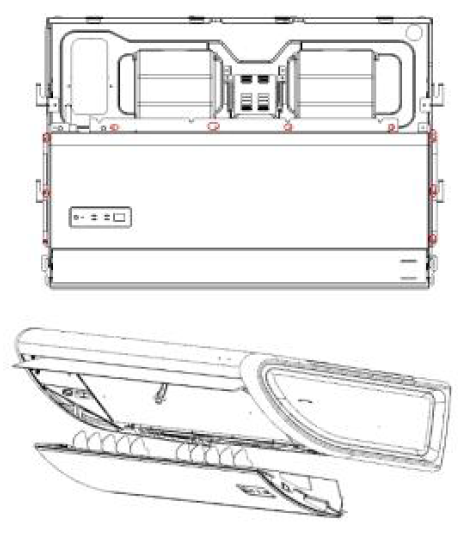

4. Remove the Front Panel

A. Remove the screws that secure the front panel, as shown in the image, then remove the front panel.

5. Remove the Water Tray

A. Remove the water tray as shown in the image.

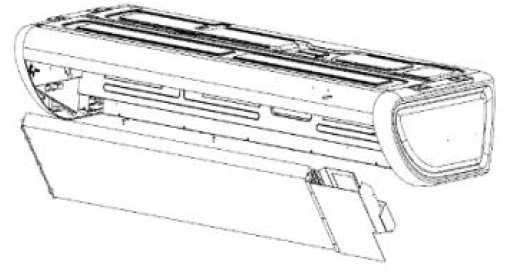

6. Remove the Evaporator

A. Remove the evaporator as shown in the image.

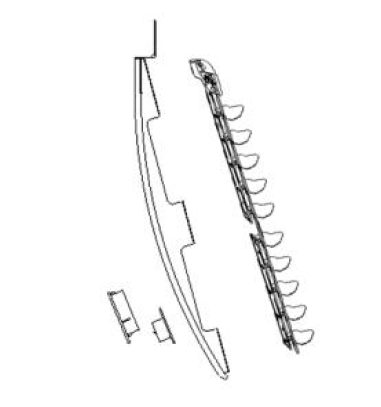

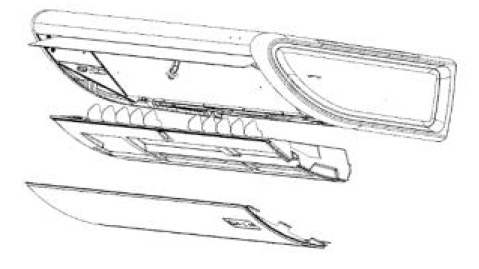

7. Remove the Display Panel and Vane Assembly

A. Remove the display panel and vane assembly as shown in the image.

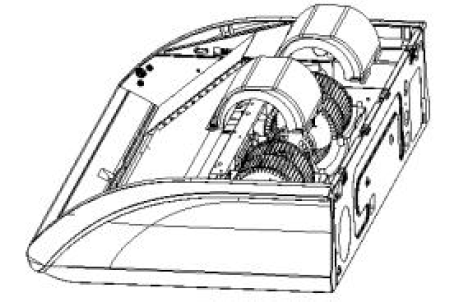

8. Remove the Volute Assembly

A. Remove the volute assembly as shown in the image.

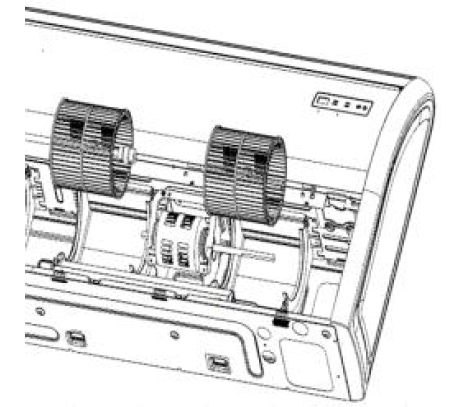

9. Remove the Centrifugal Fans

A. Remove the centrifugal fans as shown in the image.

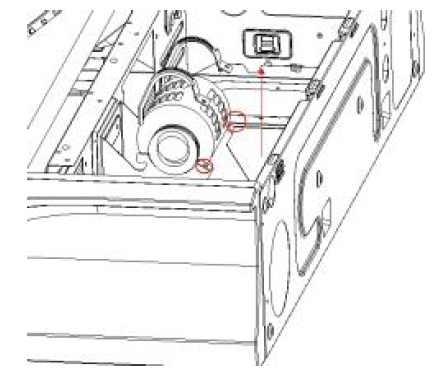

10. Remove the Fan Motor

A. Remove the fan motor as shown in the image.
