UYT024GLSI24RL Parts ListUpdated 21 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the UYT024GLSI24RL system. This system is part of the Quantum Ultra Floor-Ceiling Flex (UYT-24) series.
Indoor Unit

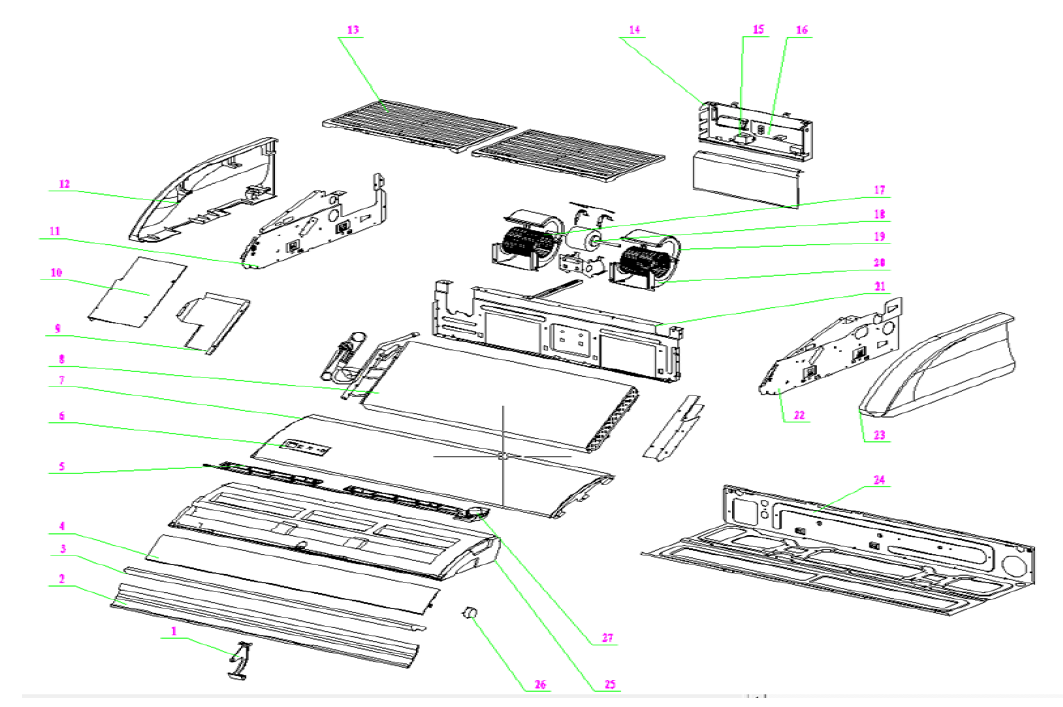

Model number: UT024GLSILSFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 45008-000217 | Louver support | 1 | |
| 2 | 45008-000444 | Air outlet chassis | 1 | |
| 3 | 45008-000489 | Air outlet foam | 1 | |
| 4 | 45008-000234 | Cowling | 1 | |
| 5 | 45801-000076 | Blade sub assembly | 1 | |
| 6 | 45801-000140 | Display lamp box | 1 | |
| 7 | 45013-000295 | Front panel | 1 | |
| 8 | 95003-000806 | Evaporator assembly | 1 | |
| 9 | 45801-000039 | Evaporator lower right sealing assembly | 1 | |
| 10 | 45801-000105 | Evaporator upper right sealing assembly | 1 | |
| 11 | 45003-000449 | Right side panel assembly | 1 | |
| 12 | 45014-005298 | Right side block | 1 | |
| 13 | 45014-005299 | Air intake grille assembly | 1 | |
| 14 | 35004-001905 | Control board box assembly | 1 | |
| 15 | / | Relay | 1 | |
| 16 | 35004-001907 | Indoor unit control board | 1 | |
| 17 | 45009-000015 | Centrifugal fan | 2 | |
| 18 | 25001-000446 | Double shaft motor | 1 | |
| 19 | 45008-000120 | Fan upper volute | 2 | |
| 20 | 45008-000153 | Fan lower volute | 2 | |
| 21 | 45014-003650 | Mid-isolation sheet assembly | 1 | |
| 22 | 45003-000452 | Left side panel assembly | 1 | |
| 23 | 45003-000393 | Left cover plate | 1 | |
| 24 | 45004-000021 | Chassis assembly | 1 | |
| 25 | 45011-000242 | Water pan assembly | 1 | |
| 26 | 25001-000123 | Stepper motor 1 | 1 | |
| 27 | 25001-000240 | Stepper motor 2 | 1 |
Outdoor Unit
Model number: YN024GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000628 | Base | 1 | |
| 2 | 41208-001049 | Partition plate | 1 | |
| 3 | 92014-000814 | Compressor | 1 | |
| 4 | 92007-021874 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003303 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| 42001-000036 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000219 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-005289 | 3-way valve | 1 | |
| 13 | 92007-007583 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020737 | Capillary assembly | 1 | |
| 16 | 42011-000419 | Back grille | 1 | |
| 17 | 92011-008072 | Condenser | 1 | |
| 18 | 41207-000048 | Top cover | 1 | |
| 19 | 41205-000217 | Support | 1 | |
| 20 | 41203-000115 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000249 | Propeller fan | 1 | |
| 23 | 41206-000076 | Front plate | 1 | |
| 24 | 42011-000031 | Fan guard | 1 | |

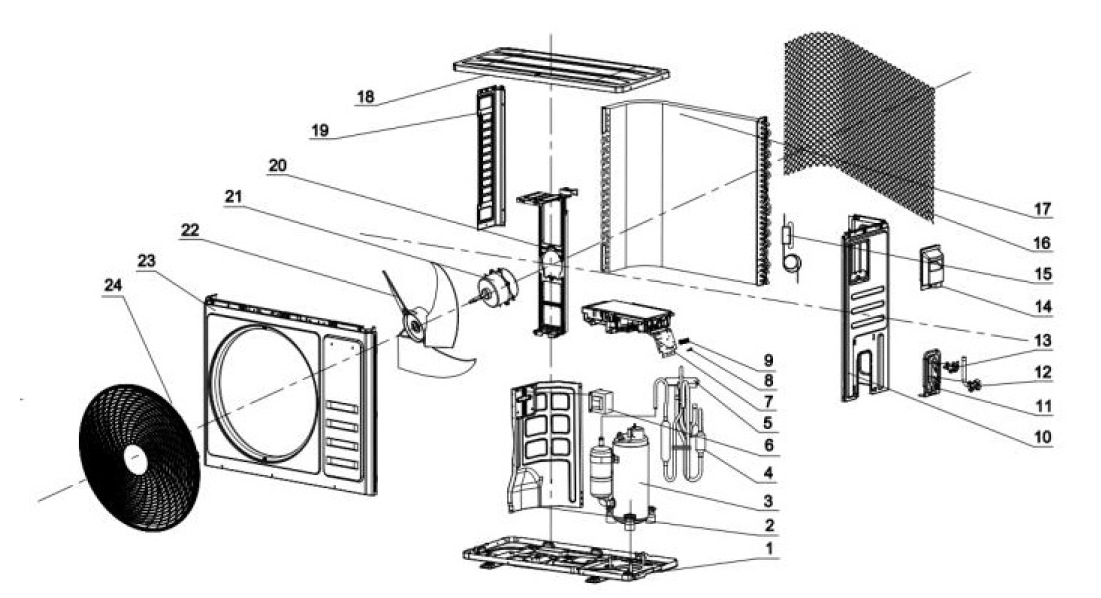

| 25 | A1201-012669 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000086 | Base foam | 1 | |
| 27 | A1202-000085 | Cover foam | 1 | |
| 28 | 10104-100145 | Sensor | 1 | |
| 29 | 92009-000171 | Connecting pipe assembly 1 | 1 | |
| 92009-000628 | Connecting pipe assembly 2 | 1 |
