UYT018GLSI24RL Parts ListUpdated a day ago
Introduction
This article includes parts lists for the indoor and outdoor units of the UYT018GLSI24RL system. This system is part of the Quantum Ultra Floor-Ceiling Flex (UYT-24) series.

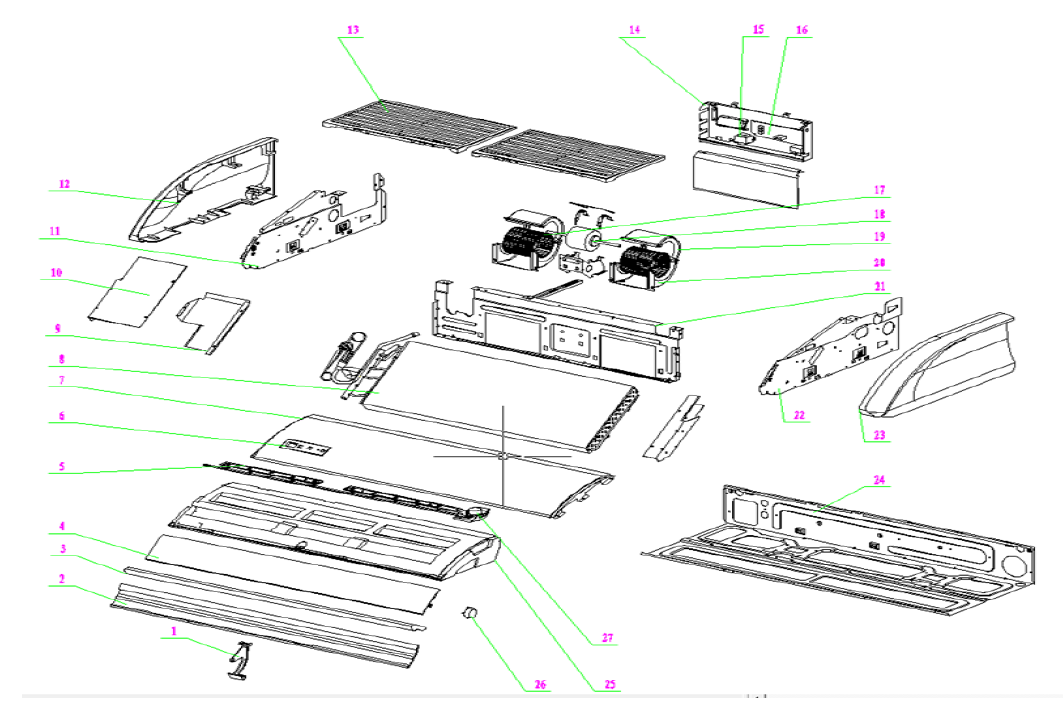

Indoor Unit
Model number: UT018GLSILCFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 45008-000217 | Louver support | 1 | |
| 2 | 45008-000444 | Air outlet chassis | 1 | |
| 3 | 45008-000489 | Air outlet foam | 1 | |
| 4 | 45008-000234 | Cowling | 1 | |
| 5 | 45801-000076 | Blade sub assembly | 1 | |
| 6 | 45801-000140 | Display lamp box | 1 | |
| 7 | 45013-000295 | Front panel | 1 | |
| 8 | 95003-000819 | Evaporator assembly | 1 | |
| 9 | 45801-000039 | Evaporator lower right sealing assembly | 1 | |
| 10 | 45801-000105 | Evaporator upper right sealing assembly | 1 | |
| 11 | 45003-000449 | Right side panel assembly | 1 | |
| 12 | 45014-005298 | Right side block | 1 | |
| 13 | 45014-005299 | Air intake grille assembly | 1 | |
| 14 | 45006-001967 | Control board box assembly | 1 | |
| 15 | / | Relay | 1 | |
| 16 | 35004-001907 | Indoor unit control board | 1 | |
| 17 | 45009-000015 | Centrifugal fan | 2 | |
| 18 | 25001-000446 | Double shaft motor | 1 | |
| 19 | 45008-000120 | Fan upper volute | 2 | |
| 20 | 45008-000153 | Fan lower volute | 2 | |
| 21 | 45014-003650 | Mid-isolation sheet assembly | 1 | |
| 22 | 45003-000452 | Left side panel assembly | 1 | |
| 23 | 45003-000393 | Left cover plate | 1 | |
| 24 | 45004-000021 | Chassis assembly | 1 | |
| 25 | 45011-000242 | Water pan assembly | 1 | |
| 26 | 25001-000123 | Stepper motor 1 | 1 | |
| 27 | 25001-000240 | Stepper motor 2 | 1 |

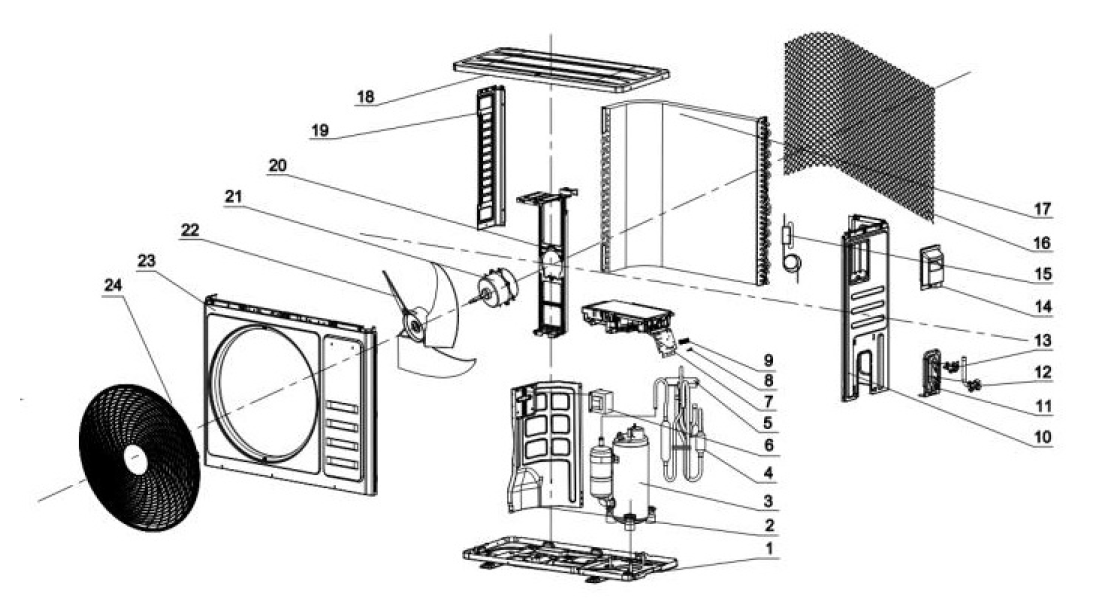

Outdoor Unit
Model number: YN018GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000371 | Base | 1 | |
| 2 | 41208-000904 | Partition plate | 1 | |
| 3 | 92014-000318 | Compressor | 1 | |
| 4 | 92007-021418 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003301 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000092 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001042 | 3-way valve | 1 | |
| 13 | 92007-006491 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020691 | Capillary assembly | 1 | |
| 16 | 42011-000187 | Back grille | 1 | |
| 17 | 92011-006053 | Condenser | 1 | |
| 18 | 41207-000028 | Top cover | 1 | |
| 19 | 41205-000135 | Support | 1 | |
| 20 | 41203-000032 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000105 | Propeller fan | 1 | |
| 23 | 41206-000058 | Front plate | 1 | |
| 24 | 42011-000039 | Fan guard | 1 | |
| 25 | A2005-000521 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000030 | Base foam | 1 | |
| 27 | 41110-000204 | Cover foam | 1 | |
| 28 | 10104-100145 | Sensor | 1 | |
| 29 | 92009-000171 | Connecting pipe assembly 1 | 1 | |
| 92009-000218 | Connecting pipe assembly 2 | 1 |
