Dimensions & Weights for Quantum Ultra Floor/Ceiling/Low-Wall Flex (UYB-20) SystemsUpdated 14 hours ago
This article provides the dimensions and weights for Quantum Ultra Floor/Ceiling/Low-Wall Flex (UYB-20) systems.
Full System Model Numbers
- UYB036GMSI20RL
- UYB048GMSI20RL

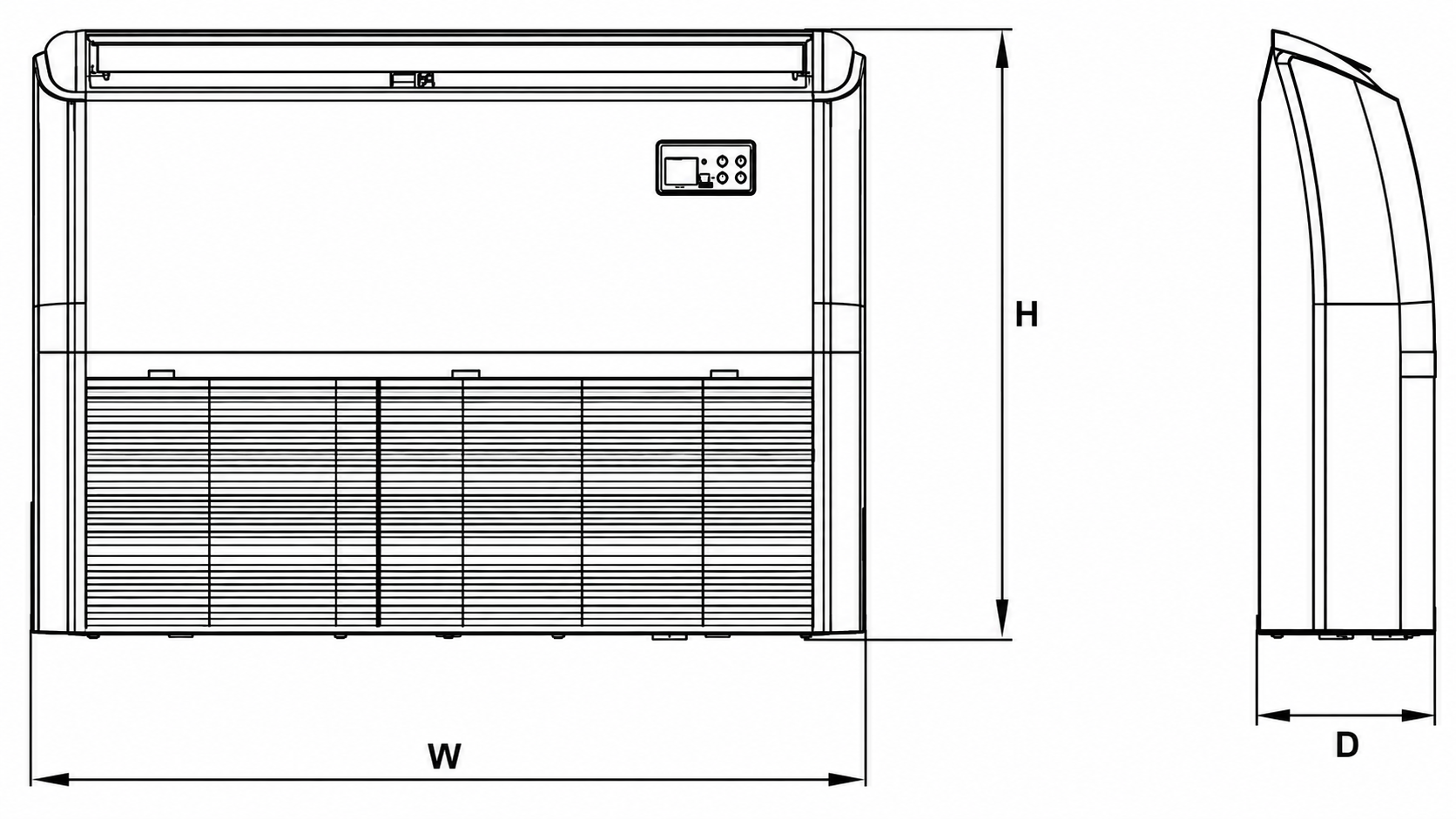

Indoor Units
| Indoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| UB036GMSILDFHG UB048GMSILDFHG | 65 in | 26-5/8 in | 9-1/4 in |
| 1,651 mm | 676 mm | 235 mm | |
| Indoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| UB036GMSILDFHG UB048GMSILDFHG | 89.0 lbs | 105.0 lbs |
| 40.4 kg | 47.6 kg | |
Outdoor Units
| Outdoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| YN036GMSI20RUG | 37-1/4 in | 16-1/4 in | 31-7/8 in |
| 946 mm | 413 mm | 810 mm | |
| YN048GMSI20RUG | 37-1/2 in | 16-3/8 in | 52-1/2 in |
| 952.5 mm | 416 mm | 1,333.5 mm | |
| Outdoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| YN036GMSI20RUG | 152.4 lbs | 162.5 lbs |
| 69.1 kg | 73.7 kg | |
| YN048GMSI20RUG | 208.8 lbs | 239.8 lbs |
| 94.7 kg | 108.8 kg | |
