Dimensions & Weights for Quantum Ultra Ducted Ceiling Concealed SystemsUpdated 15 days ago
This article provides the dimensions and weights for Quantum Ultra Ducted Ceiling Concealed (RYT-24) systems.
Full System Model Numbers

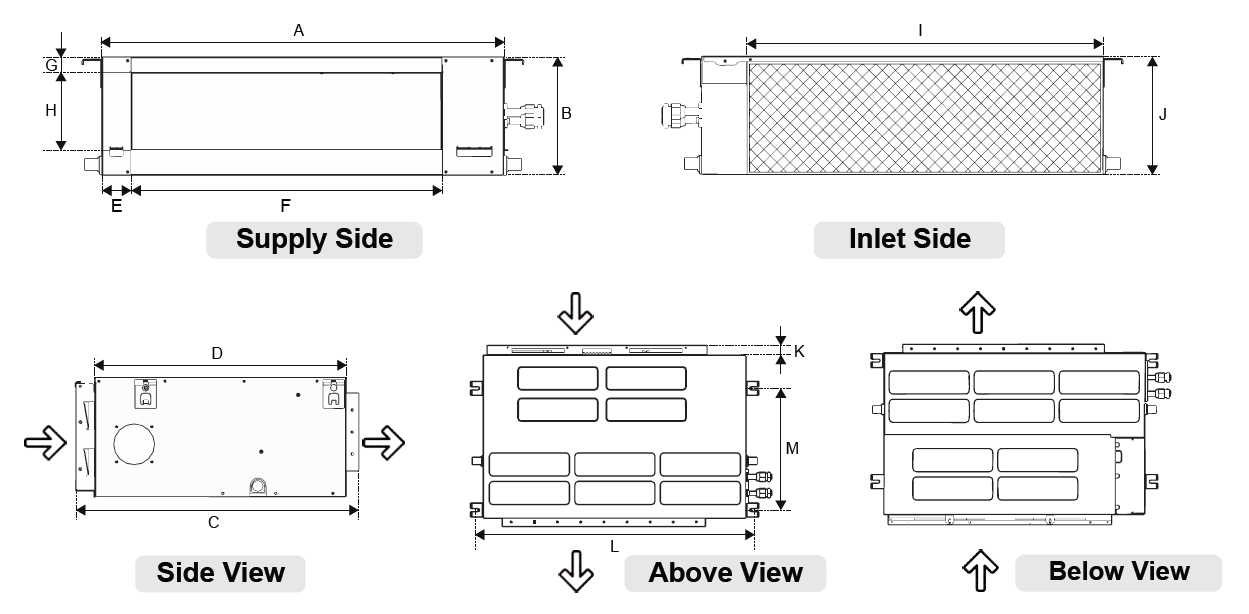

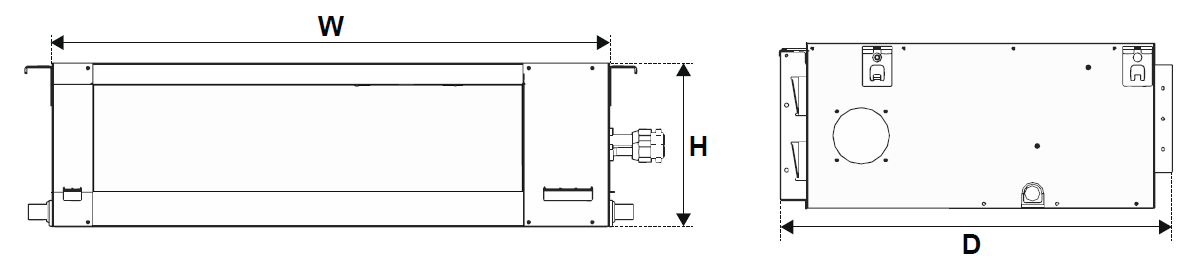

Indoor Units
| Indoor Units | ||||
| Models | Overall Air Handlers (inches/mm) | |||
| A | B | C | D | |
| RT009GLSILCFHG RT012GLSILCFHG | 27-5/8 in | 7-7/8 in | 19-3/8 in | 17-3/4 in |
| 702 mm | 200 mm | 492 mm | 451 mm | |
| RT018GLSILCFHG | 36-1/4 in | 7-7/8 in | 19-3/8 in | 17-3/4 in |
| 921 mm | 200 mm | 492 mm | 451 mm | |
| RT024GLSILSFHG | 43-3/8 in | 7-7/8 in | 19-3/8 in | 17-3/4 in |
| 1,102 mm | 200 mm | 492 mm | 451 mm | |
| Indoor Units | ||||
| Models | Front Side Air Outlets - Supply (inches/mm) | |||
| E | F | G | H | |
| RT009GLSILCFHG RT012GLSILCFHG | 1-3/4 in | 20-1/8 in | 3/4 in | 5-1/2 in |
| 44 mm | 511 mm | 19 mm | 140 mm | |
| RT018GLSILCFHG | 1-3/4 in | 28-3/4 in | 3/4 in | 5-1/2 in |
| 44 mm | 730 mm | 19 mm | 140 mm | |
| RT024GLSILSFHG | 1-3/4 in | 36-5/8 in | 3/4 in | 5-1/2 in |
| 44 mm | 930 mm | 19 mm | 140 mm | |
| Indoor Units | |||
| Models | Rear Side Air Inlet - Return (inches/mm) | ||
| I | J | K | |
| RT009GLSILCFHG RT012GLSILCFHG | 23-5/8 in | 7-3/8 in | 1-3/8 in |
| 600 mm | 187 mm | 35 mm | |
| RT018GLSILCFHG | 32-1/4 in | 7-3/8 in | 1-3/8 in |
| 819 mm | 187 mm | 35 mm | |
| RT024GLSILSFHG | 40-5/8 in | 7-3/8 in | 1-3/8 in |
| 1,032 mm | 187 mm | 35 mm | |
| Indoor Units | ||
| Models | Mounting Brackets (inches/mm) | |
| L | M | |
| RT009GLSILCFHG RT012GLSILCFHG | 29-1/8 in | 11-3/4 in |
| 740 mm | 298 mm | |
| RT018GLSILCFHG | 37-3/4 in | 11-3/4 in |
| 959 mm | 298 mm | |
| RT024GLSILSFHG | 37-7/8 in | 14-3/8 in |
| 962 mm | 365 mm | |
| Indoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| RT009GLSILCFHG RT012GLSILCFHG | 33.1 lbs | 40.8 lbs |
| 15 kg | 18.5 kg | |
| RT018GLSILCFHG | 39.7 lbs | 46.3 lbs |
| 18 kg | 21 kg | |
| RT024GLSILSFHG | 50.7 lbs | 58.4 lbs |
| 23 kg | 26.5 kg | |

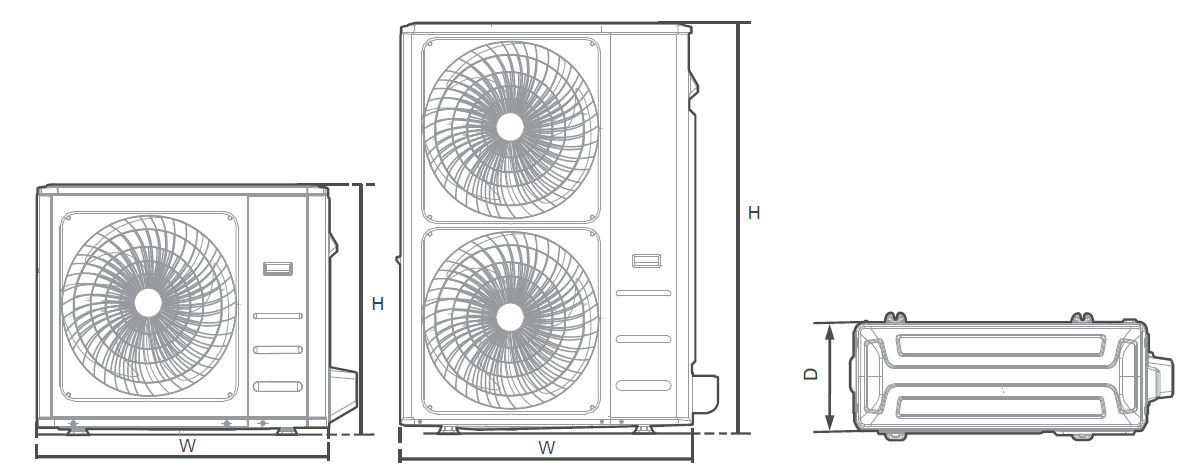

Outdoor Units
| Outdoor Units | ||||||||
| Models | Dimensions (inches/mm) | |||||||
| D | E | F | G | H | I | J | K | |
| YN009GLSI24RPG YN012GLSI24RPG | 28-3/4 in | 21-1/2 in | 10 in | 17-1/8 in | 12 in | 11-1/4 in | 1-7/8 in | 2-1/4 in |
| 730 mm | 546 mm | 253 mm | 434 mm | 305 mm | 285 mm | 48 mm | 58 mm | |
| YN018GLSI24RPG | 33-1/4 in | 27-1/2 in | 12-7/8 in | 23-1/8 in | 14-3/4 in | 13-3/4 in | 2-1/8 in | 2-1/4 in |
| 845 mm | 699 mm | 326 mm | 586 mm | 375 mm | 348 mm | 55 mm | 58 mm | |
| YN024GLSI24RPG | 35-7/8 in | 31-5/8 in | 14-1/8 in | 23-7/8 in | 16-5/8 in | 15-3/8 in | 2-3/8 in | 2-1/2 in |
| 910 mm | 803 mm | 359 mm | 607 mm | 421 mm | 390 mm | 60 mm | 63 mm | |
| Outdoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| YN009GLSI24RPG | 52.7 lbs | 57.1 lbs |
| 23.9 kg | 25.9 kg | |
| YN012GLSI24RPG | 58.4 lbs | 65 lbs |
| 26.5 kg | 29.5 kg | |
| YN018GLSI24RPG | 90.4 lbs | 97 lbs |
| 41 kg | 44 kg | |
| YN024GLSI24RPG | 104.7 lbs | 119 lbs |
| 47.5 kg | 54 kg | |
