RYT024GLSI24RL Parts ListUpdated 22 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the RYT024GLSI24RL system. This system is part of the Quantum Ultra Ducted Ceiling Concealed (RYT-24) series.

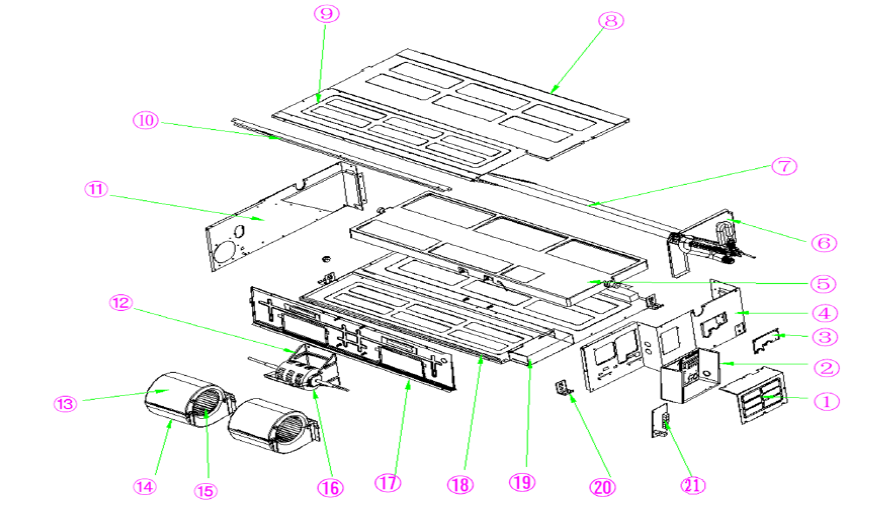

Indoor Unit
Model number: RT024GLSILSFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 45006-001705 | Control board box cover | 1 | |
| 2 | 45006-001708 | Control board box | 1 | |
| 3 | / | Inlet & outlet pipe sealing board assembly | 1 | |
| 4 | 45003-000355 | Right side panel component | 1 | |
| 5 | 45011-000176 | Water pan assembly | 1 | |
| 6 | / | Evaporator sealing plate assembly | 1 | |
| 7 | 95003-004256 | Evaporator | 1 | |
| 8 | / | Bottom cover plate component | 1 | |
| 9 | 46101-000342 | Return air outlet sealing plate | 1 | |
| 10 | / | Return air outlet horizontal bar | 1 | |
| 11 | 45003-000354 | Left side panel component | 1 | |
| 12 | 45005-000598 | Motor fixed board | 1 | |
| 13 | 46101-000346 | Fan upper volute | 2 | |
| 14 | 46101-000347 | Fan lower volute | 2 | |
| 15 | 45009-000106 | Centrifugal fan 1 | 2 | |
| 45009-000107 | Centrifugal fan 2 | 2 | ||
| 16 | 25001-000458 | Double shaft motor | 1 | |
| 17 | 46101-000411 | Middle beam partition component | 1 | |
| 18 | 46101-000339 | Top cover board component | 1 | |
| 19 | / | Hook supporter | 1 | |
| 20 | 46101-000343 | Hook | 4 | |
| 21 | 35004-001879 | Indoor unit control board | 1 | |
| 22 | 11501-100018 | Relay | 1 | Not shown in the Explosion view |
| 23 | 11304-100063 | Terminal | 1 | |
| 24 | / | Clamp | 2 |

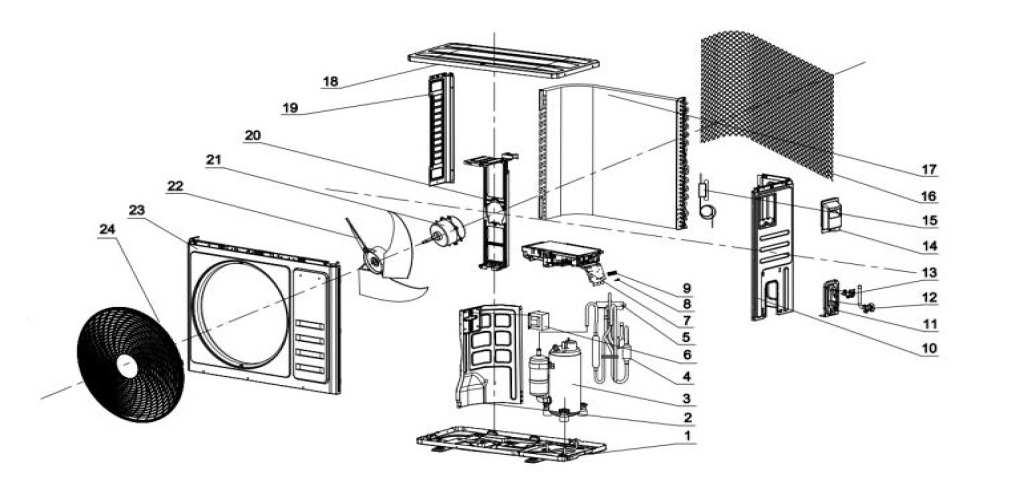

Outdoor Unit
Model number: YN024GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000628 | Base | 1 | |
| 2 | 41208-001049 | Partition plate | 1 | |
| 3 | 92014-000814 | Compressor | 1 | |
| 4 | 92007-021874 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003303 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| 42001-000036 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000219 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-005289 | 3-way valve | 1 | |
| 13 | 92007-007583 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020737 | Capillary assembly | 1 | |
| 16 | 42011-000419 | Back grille | 1 | |
| 17 | 92011-008072 | Condenser | 1 | |
| 18 | 41207-000048 | Top cover | 1 | |
| 19 | 41205-000217 | Support | 1 | |
| 20 | 41203-000115 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000249 | Propeller fan | 1 | |
| 23 | 41206-000076 | Front plate | 1 | |
| 24 | 42011-000031 | Fan guard | 1 | |
| 25 | A1201-012669 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000086 | Base foam | 1 | |
| 27 | A1202-000085 | Cover foam | 1 | |
| 28 | 10104-100145 | Sensor | 1 | |
| 29 | 92009-000171 | Connecting pipe assembly 1 | 1 | |
| 92009-000628 | Connecting pipe assembly 2 | 1 |
