RYT018GLSI24RL Parts ListUpdated 18 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the RYT018GLSI24RL system. This system is part of the Quantum Ultra Ducted Ceiling Concealed (RYT-24) series.

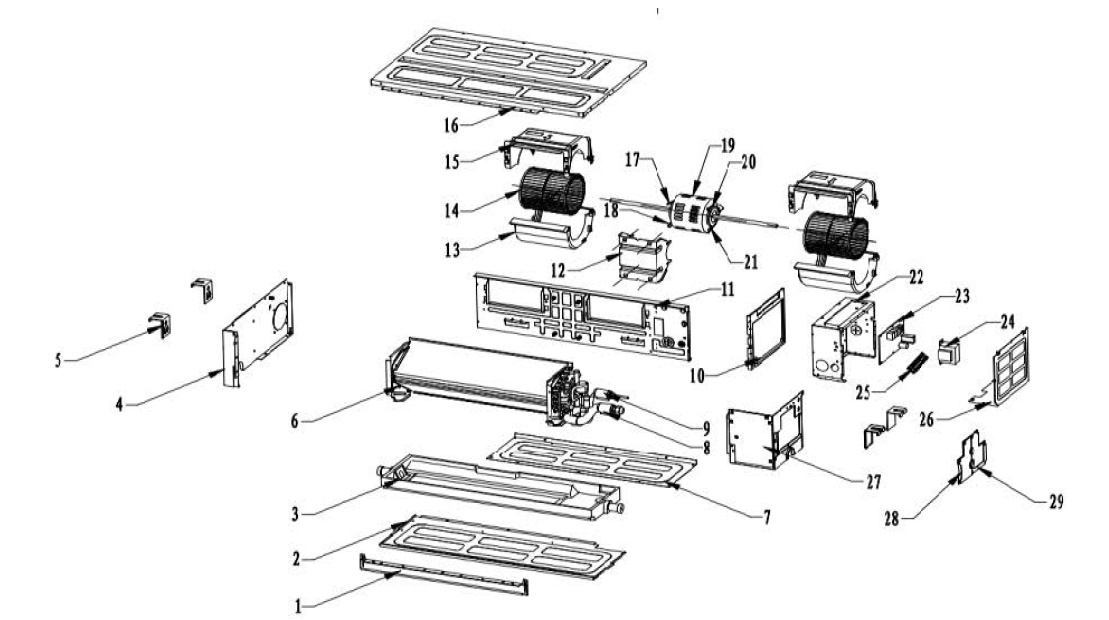

Indoor Unit
Model number: RT018GLSILCFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 46101-000394 | Front panel assembly | 1 | |
| 2 | 46101-000395 | Base | 1 | |
| 3 | 45011-000103 | Water pan assembly | 1 | |
| 4 | 45003-000414 | Left plate assembly | 1 | |
| 5 | 45014-002175 | Hook 1 | 3 | |
| 45014-004783 | Hook 2 | 1 | ||
| 6 | 95003-004626 | Evaporator | 1 | |
| 7 | 45008-000154 | Return air plate | 1 | |
| 8 | 95016-001699 | Evaporator output tube assembly | 1 | |
| 9 | 95016-001700 | Evaporator input tube assembly | 1 | |
| 10 | 45014-005425 | Electric control box mounting plate | 1 | |
| 11 | 46101-000030 | Middle metal panel assembly | 1 | |
| 12 | 45005-000586 | Motor mount | 1 | |
| 13 | 45008-000141 | Volute assembly | 2 | |
| 14 | 45009-000021 | Centrifugal fan | 2 | |
| 15 | 45008-000253 | Up volute | 2 | |
| 16 | 46101-000393 | Top cover | 1 | |
| 17 | 45005-000259 | Motor buckle upper left | 1 | |
| 18 | 45005-000328 | Motor buckle assembly bottom left | 1 | |
| 19 | 25001-000446 | Fan motor | 1 | |
| 20 | 45005-000416 | Motor buckle upper right | 1 | |
| 21 | 45005-000399 | Motor buckle assembly bottom right | 1 | |
| 22 | 45006-001711 | Electrical box | 1 | |
| 23 | 35004-001869 | Main PCB | 1 | |
| 24 | / | Reactor | 1 | |
| 25 | 11304-100063 | Terminal | 1 | |
| 26 | 45006-001704 | Electrical box cover | 1 | |
| 27 | 45003-000455 | Right plate | 1 | |
| 28 | / | Tube sealing plate assembly | 1 | |
| 29 | 46101-000405 | Drain pipe mounting plate assembly | 1 | |
| 30 | / | Wi-Fi module | 1 | Not shown in the Explosion view |
| 31 | 45014-003768 | Air filter | 1 | |
| 32 | 22014-000015 | Wiring control | 1 | |
| 33 | / | Remote control | 1 |

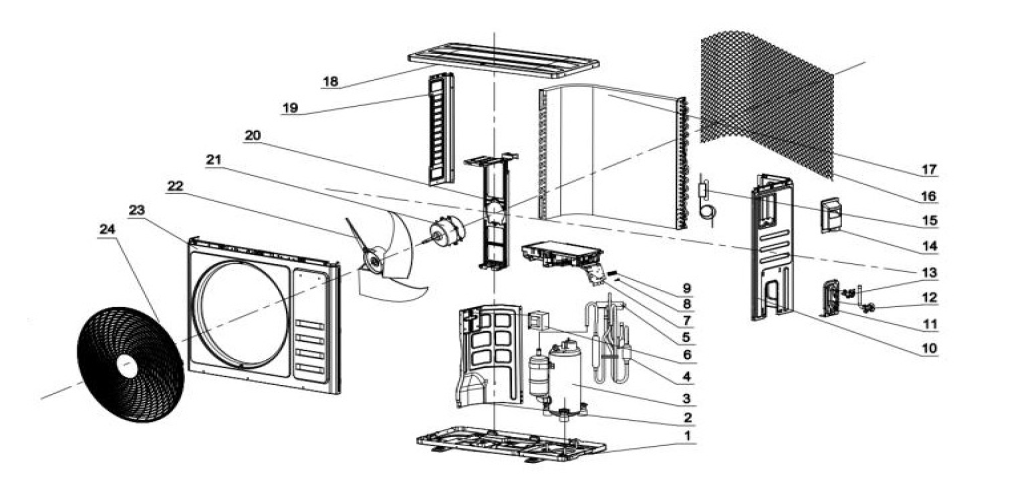

Outdoor Unit
Model number: YN018GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000371 | Base | 1 | |
| 2 | 41208-000904 | Partition plate | 1 | |
| 3 | 92014-000318 | Compressor | 1 | |
| 4 | 92007-021418 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003301 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000092 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001042 | 3-way valve | 1 | |
| 13 | 92007-006491 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020691 | Capillary assembly | 1 | |
| 16 | 42011-000187 | Back grille | 1 | |
| 17 | 92011-006053 | Condenser | 1 | |
| 18 | 41207-000028 | Top cover | 1 | |
| 19 | 41205-000135 | Support | 1 | |
| 20 | 41203-000032 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000105 | Propeller fan | 1 | |
| 23 | 41206-000058 | Front plate | 1 | |
| 24 | 42011-000039 | Fan guard | 1 | |
| 25 | A2005-000521 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000030 | Base foam | 1 | |
| 27 | 41110-000204 | Cover foam | 1 | |
| 28 | 10104-100145 | Sensor | 1 | |
| 29 | 92009-000171 | Connecting pipe assembly 1 | 1 | |
| 92009-000218 | Connecting pipe assembly 2 | 1 |
