RYT009GLSI24RL Parts ListUpdated a day ago
Introduction
This article includes parts lists for the indoor and outdoor units of the RYT009GLSI24RL system. This system is part of the Quantum Ultra Ducted Ceiling Concealed (RYT-24) series.

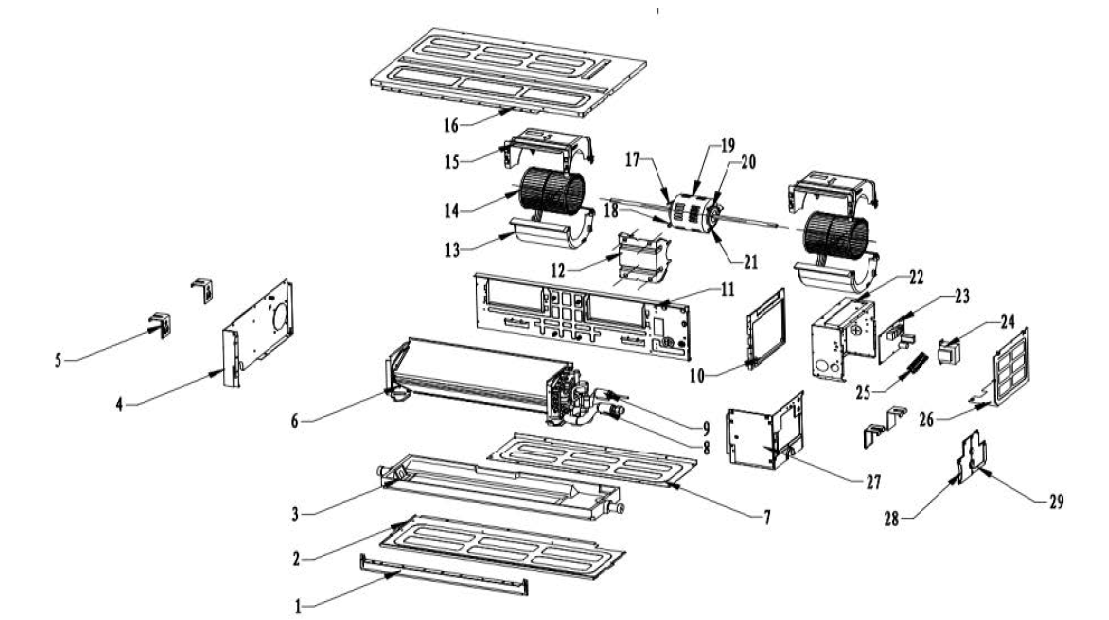

Indoor Unit
Model number: RT009GLSILCFHG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 46101-000391 | Front panel assembly | 1 | |
| 2 | 46101-000392 | Base | 1 | |
| 3 | 45011-000049 | Water pan assembly | 1 | |
| 4 | 45003-000414 | Left plate assembly | 1 | |
| 5 | 45014-002175 | Hook | 3 | |
| 45014-004783 | Hook | 1 | ||
| 6 | K0304-110287 | Evaporator | 1 | |
| 7 | 45008-000224 | Return air plate | 1 | |
| 8 | 95016-001680 | Evaporator output tube assembly | 1 | |
| 9 | 95016-001681 | Evaporator input tube assembly | 1 | |
| 10 | 45014-005425 | Electric control box mounting plate | 1 | |
| 11 | 46101-000156 | Middle metal panel assembly | 1 | |
| 12 | / | Motor mount | 1 | |
| 13 | 41304-000022 | Volute assembly | 1 | |
| 14 | 42004-000148 | Centrifugal fan | 1 | |
| 15 | 41214-000828 | Up volute | 2 | |
| 16 | 46101-000385 | Top cover | 1 | |
| 17 | 45005-000416 | Motor buckle upper left | 1 | |
| 18 | 45005-000399 | Motor buckle assembly bottom left | 1 | |
| 19 | 25001-000446 | Fan motor | 1 | |
| 20 | 45005-000328 | Motor buckle upper right | 1 | |
| 21 | 45005-000259 | Motor buckle assembly bottom right | 1 | |
| 22 | 45006-001711 | Electrical box | 1 | |
| 23 | 35004-001869 | Main PCB | 1 | |
| 24 | / | Reactor | 1 | |
| 25 | 11304-100063 | Terminal | 1 | |
| 26 | 45006-001704 | Electrical box cover | 1 | |
| 27 | 45003-000455 | Right plate | 1 | |
| 28 | / | Tube sealing plate assembly | 1 | |
| 29 | 46101-000405 | Drain pipe mounting plate assembly | 1 | |
| 30 | / | Wi-Fi module | 1 | Not shown in the Explosion view |
| 31 | 45014-003767 | Air filter | 1 | |
| 32 | 22014-000008 | Wiring control | 1 |

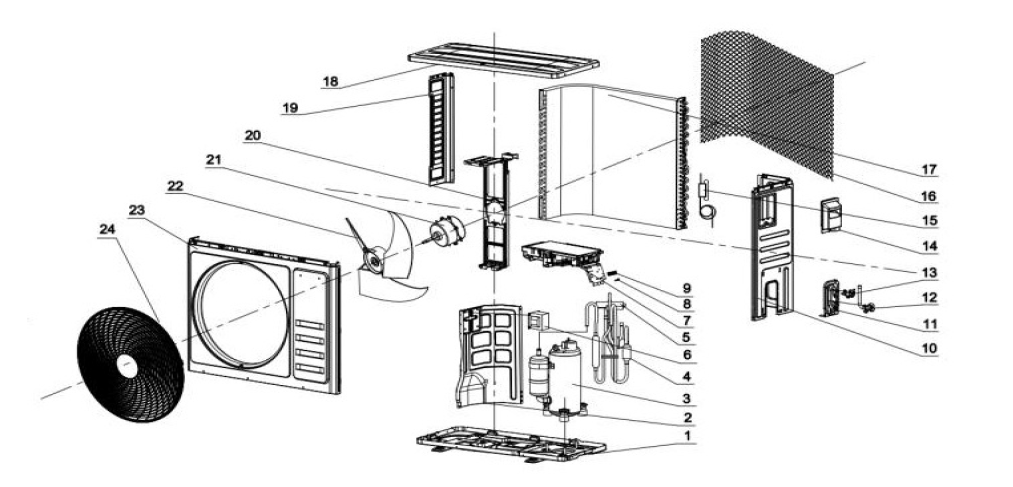

Outdoor Unit
Model number: YN009GLSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000641 | Base | 1 | |
| 2 | 41208-001212 | Partition plate | 1 | |
| 3 | 92014-001128 | Compressor | 1 | |
| 4 | 92007-021791 | 4-way valve assembly | 1 | |
| 5 | 92008-000471 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003237 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000655 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-021641 | Capillary assembly | 1 | |
| 16 | 42011-000185 | Back grille | 1 | |
| 17 | 92011-008350 | Condenser | 1 | |
| 18 | 41207-000040 | Top cover | 1 | |
| 19 | 41205-000131 | Support | 1 | |
| 20 | 41203-000047 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000106 | Propeller fan | 1 | |
| 23 | 41206-000059 | Front plate | 1 | |
| 24 | 42011-000041 | Fan guard | 1 | |
| 25 | A2005-000536 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000041 | Base foam | 1 | |
| 27 | 41213-000032 | Cover foam | 1 | |
| 28 | 92009-000180 | Connecting pipe assembly 1 | 1 | |
| 92009-000187 | Connecting pipe assembly 2 | 1 |
