Introduction
The Quantum Ultra Ducted Ceiling Concealed (RYB-20) series is a mini split system providing hidden heating and cooling for multiple rooms through a single ducted unit.
The ducted ceiling concealed system has an average 20-SEER2 rating, and is factory-precharged with environmentally-friendly R-454B refrigerant.
Ductable to Multiple Rooms
This system can provide heating and cooling to multiple rooms via ducting, enabling warmed or conditioned airflow all throughout the home. With its ceiling concealed design, only the wired controller and air grilles are visible to the occupants.
Flexible Air Intake
The air handler can be easily modified to pull in return air from the bottom or rear side. Simply move the air intake cover to the side that will not be used and you're all set.
High Quality Built-in Components
The air handler features an innovative blower wheel design, improving the airflow at the air outlet. This series includes a built-in drainage pump that can lift condensate water up to 30 feet (9.1 m).
Precision Temperature Control
With the fully DC inverter design combined with our latest 540L wired controller, the set temperature inside the room can be maintained accurately, within +/- 2°F tolerance.
Full System Model Numbers
RYB036GMSI20RL and RYB048GMSI20RL
Indoor Units
RB036GMSILDFHG and RB048GMSILDFHG
Outdoor Units
YN036GMSI20RUG and YN048GMSI20RUG
For more information, see this technical brochure.

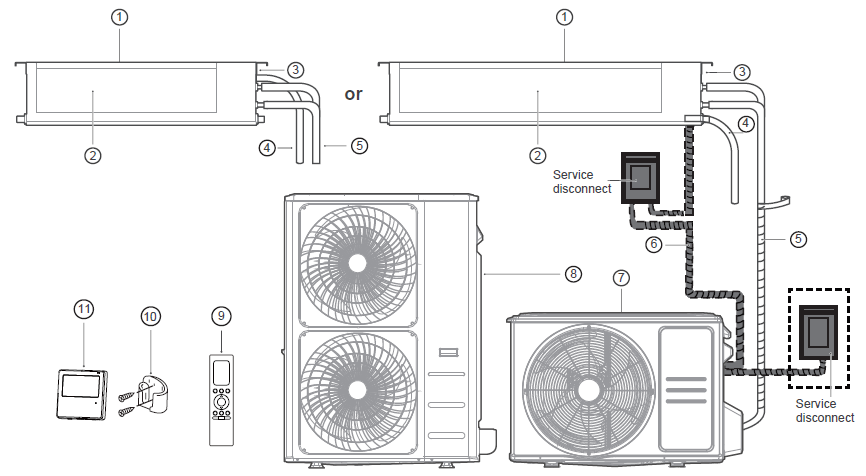

System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
| No. | Description |
| 1 | Air inlet |
| 2 | Air outlet |
| 3 | Electric control box |
| 4 | Drainpipe |
| 5 | Refrigerant Piping (purchase separately) |
| 6 | Connection cable (purchase separately) |
| 7 | Outdoor unit (A) |
| 8 | Outdoor unit (B) |
| 9 | Remote controller (purchase separately) |
| 10 | Remote controller holder (purchase separately) |
| 11 | Wired remote controller |
Note: Select a service disconnect meeting the requirements of local, regional, and national codes.
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system. Items that are not included with the system must be purchased separately.
| Name of Accessories | Quantity | Shape |
| Manual | 2-4 |  |
| Refrigerant in/out pipe protection cover | 2 |  |
| Copper nut | 2 |  |
| Wired remote controller (with packing) | 1 |  |
| Outlet pipe sheath | 1 |  |
| Outlet pipe clasp | 1 |  |
| Seal ring (Not available for the outdoor unit with dimensions of 38.58 in x 38.39 in x 16.34 in) | 1 |  |
| Drain joint | 1 |  |
| Magnetic ring (Wrap the electric wires S1 & S2 (P & Q & E) around the magnetic ring twice) | 1 |  |
| Magnetic ring (Hitch it on the connective cable between the indoor and outdoor units after installation) | 1 |  |
| Display panel | 1 |  |
| Remote controller (purchase separately) | 1 |  |
| Battery (purchase separately) | 2 |  |
| Remote controller holder (purchase separately) | 1 |  |
