Dimensions & Weights for Quantum Ultra Slim-Duct Ceiling Concealed (RYB-20) SystemsUpdated a day ago
This article provides the dimensions and weights for Quantum Ultra Slim-Duct Ceiling Concealed (RYB-20) systems.
Full System Model Numbers
- RYB036GMSI20RL
- RYB048GMSI20RL
Indoor Units
| Indoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| RB036GMSILDFHG RB048GMSILDFHG | 47-1/4 in | 29-1/2 in | 11-7/8 in |
| 1,200 mm | 749 mm | 302 mm | |
| Indoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| RB036GMSILDFHG | 106.3 lbs | 120.3 lbs |
| 48.2 kg | 54.6 kg | |
| RB048GMSILDFHG | 111.3 lbs | 124.8 lbs |
| 50.5 kg | 56.6 kg | |

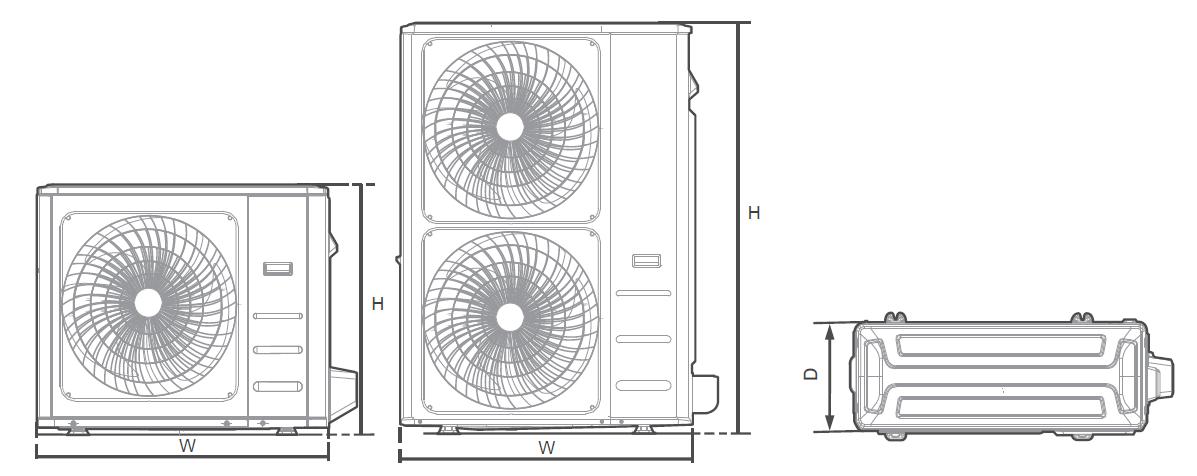

Outdoor Units
| Outdoor Units | |||
| Models | Dimensions | ||
| Width | Depth | Height | |
| YN036GMSI20RUG | 37-1/4 in | 16-1/4 in | 31-7/8 in |
| 946 mm | 413 mm | 810 mm | |
| YN048GMSI20RUG | 37-1/2 in | 16-3/8 in | 52-1/2 in |
| 952.5 mm | 416 mm | 1,333.5 mm | |
| Outdoor Units | ||
| Models | Weights | |
| Net Unit | Shipping | |
| YN036GMSI20RUG | 152.4 lbs | 162.5 lbs |
| 69.1 kg | 73.7 kg | |
| YN048GMSI20RUG | 208.8 lbs | 237.5 lbs |
| 94.7 kg | 107.7 kg | |
