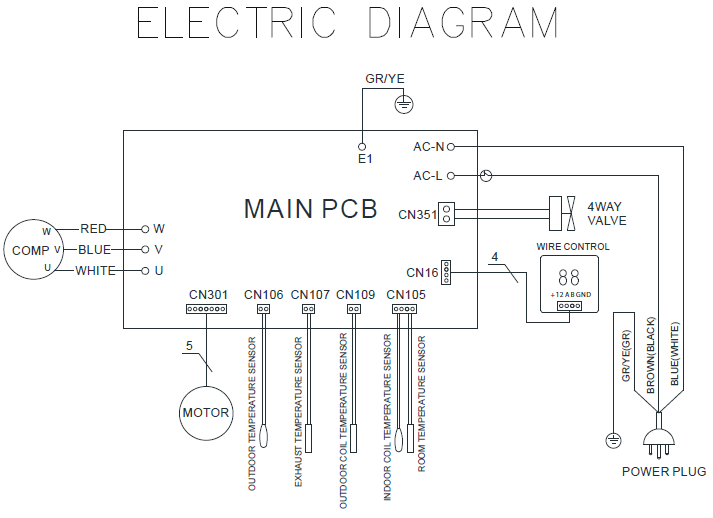

<p>This article provides the wiring diagram for <a href="https://www.pioneerminisplit.com/collections/recreational-rv-systems/products/pioneer-10-000-btu-under-bench-rv-inverter-heat-pump-air-conditioner" target="_blank" rel="noopener noreferrer">RV under-bench systems</a>.</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026021116-f46cc3bc-1d3e-4e15-a40e-5b8aa6896c5f-pyr_rv_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></p>

This article provides the wiring diagram for RV under-bench systems.

Wiring Diagram for RV Under-Bench Systems
