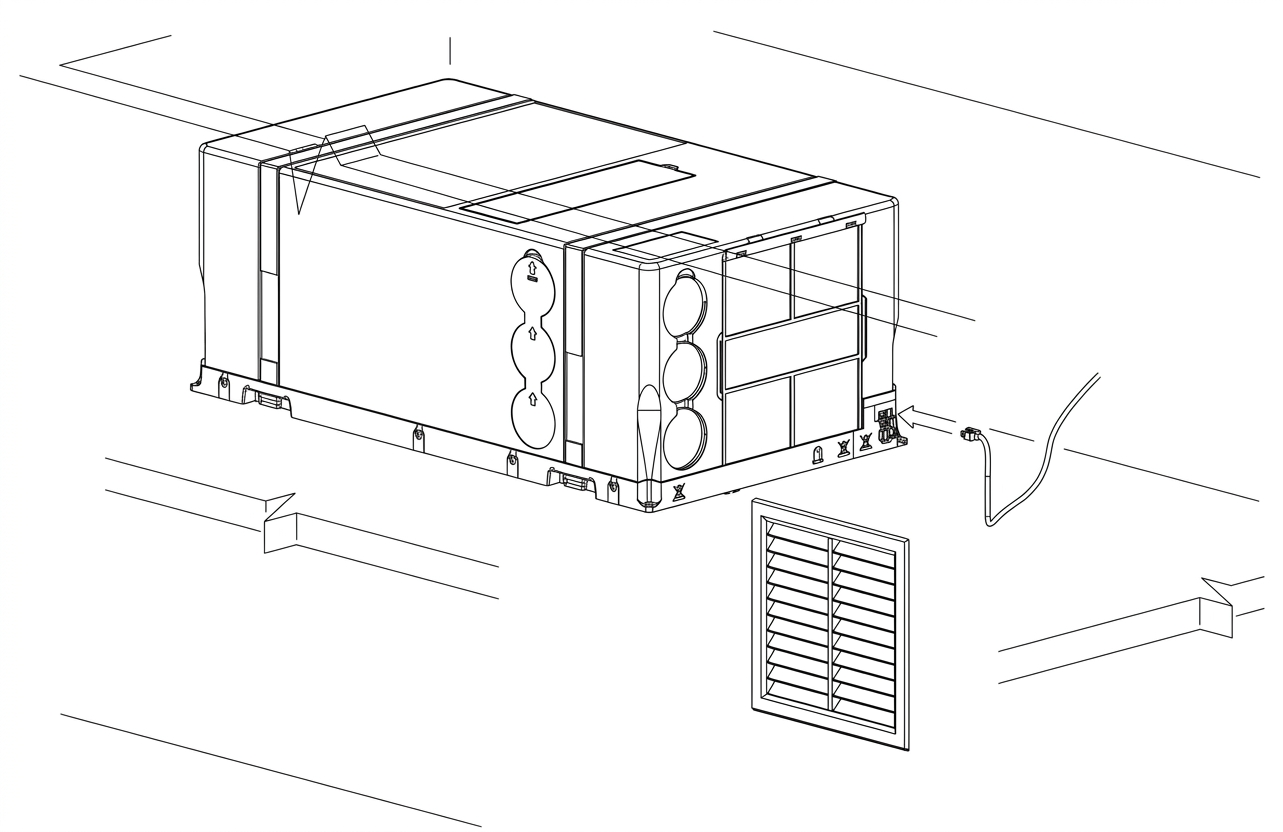

This article explains how to connect and power up <a href="https://www.pioneerminisplit.com/collections/recreational-rv-systems/products/pioneer-10-000-btu-under-bench-rv-inverter-heat-pump-air-conditioner" target="_blank" rel="noopener noreferrer" id="isPasted">Under-Bench RV Inverter Packaged Heat Pump Air Conditioners</a>.&#xA0;Ensure that the electrical supply and extension used are capable of withstanding the power input required by the system.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026021116-3bb4d1a4-d2de-4375-8729-decd223edbca-pyr_rv_installation_connection.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">Connect the receiver extension socket to the system. Then, power up the machine by inserting the included power plug into a 115V/60Hz outlet.&#xA0;The installation process is now complete.&#xA0;

This article explains how to connect and power up Under-Bench RV Inverter Packaged Heat Pump Air Conditioners.

Connect & Power Up Under-Bench RV Systems
