Routing the Drain Hose of LCAC SystemsUpdated 2 hours ago

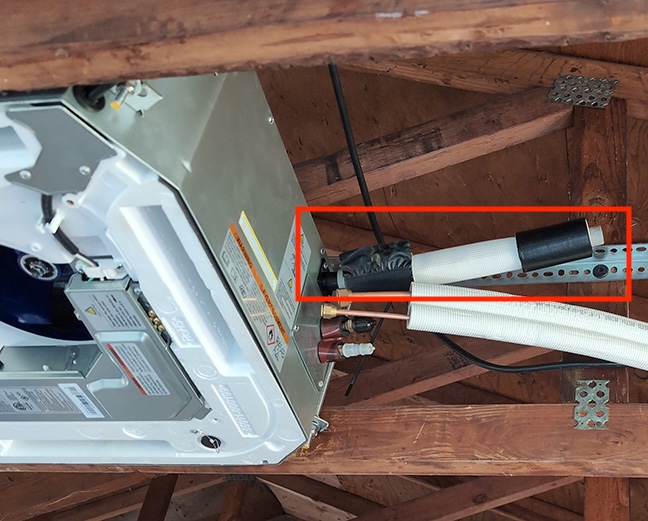

Connecting the Drain Hose of Pioneer LCAC Equipment (UYT-24, CYT-24, RYT-24) to PVC (Recommended)
For best longevity and durability, Pioneer recommends routing the included flexible drain hose through PVC.
.jpg)

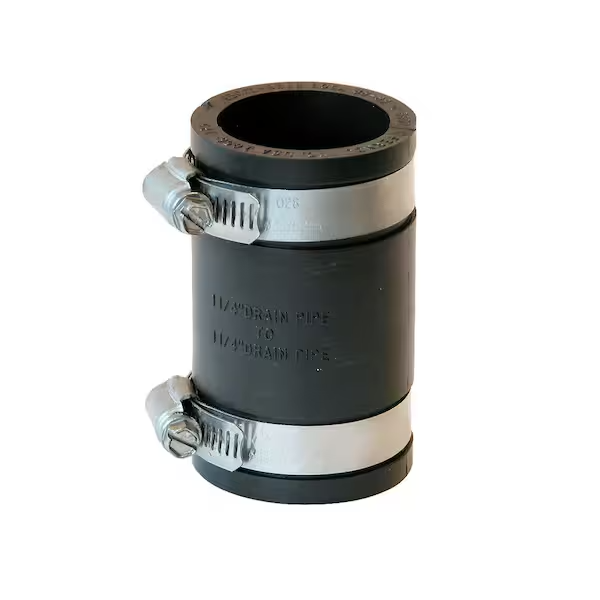

(Option A) You can use a rubber coupler to mate the drain tube end to a 3/4" PVC pipe.

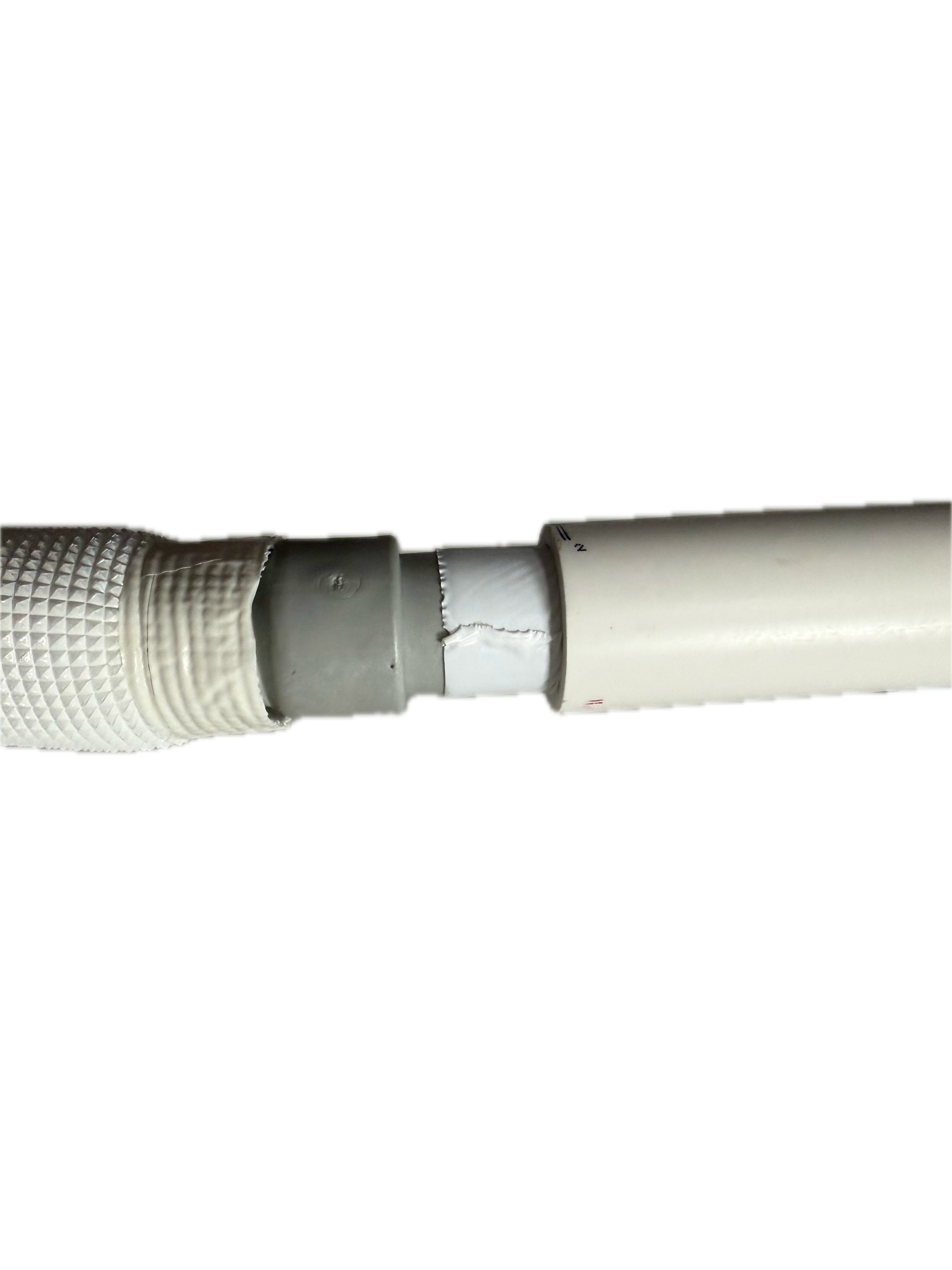

(Option B) Another option is to insert the drain tube end directly into a 1-inch Schedule 40 PVC pipe, using some waterproofing tape to create a flush and snug seal.
It's recommended to add additional tape around the external of the connection point for better security.
