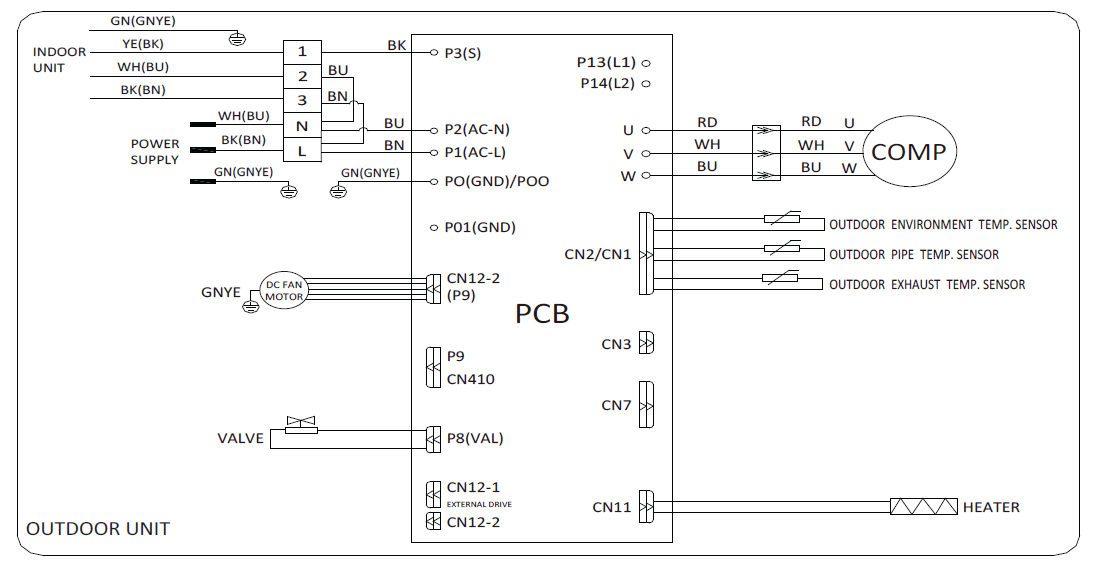

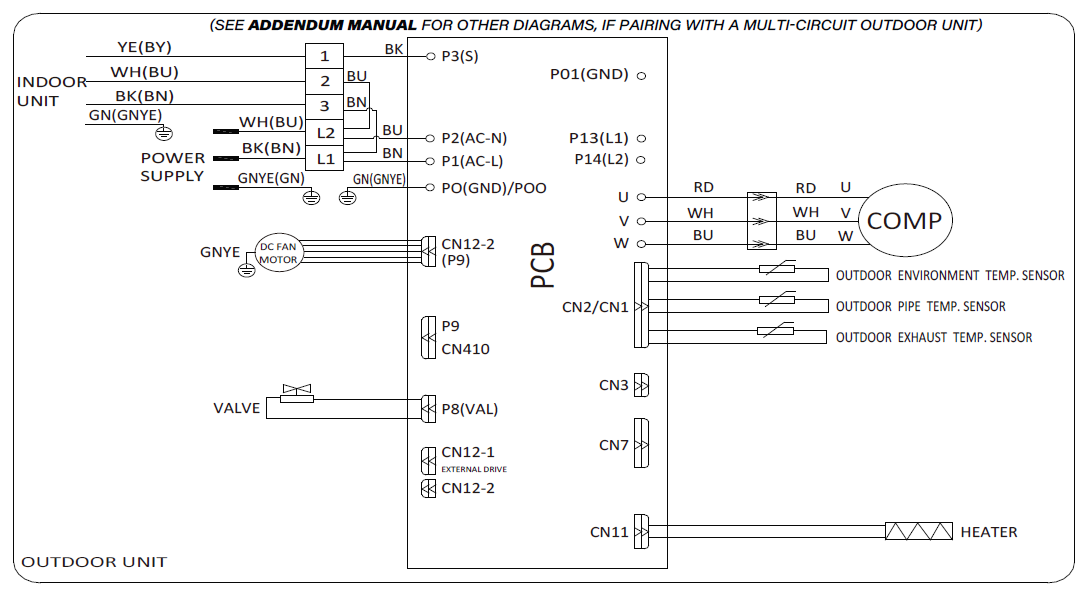

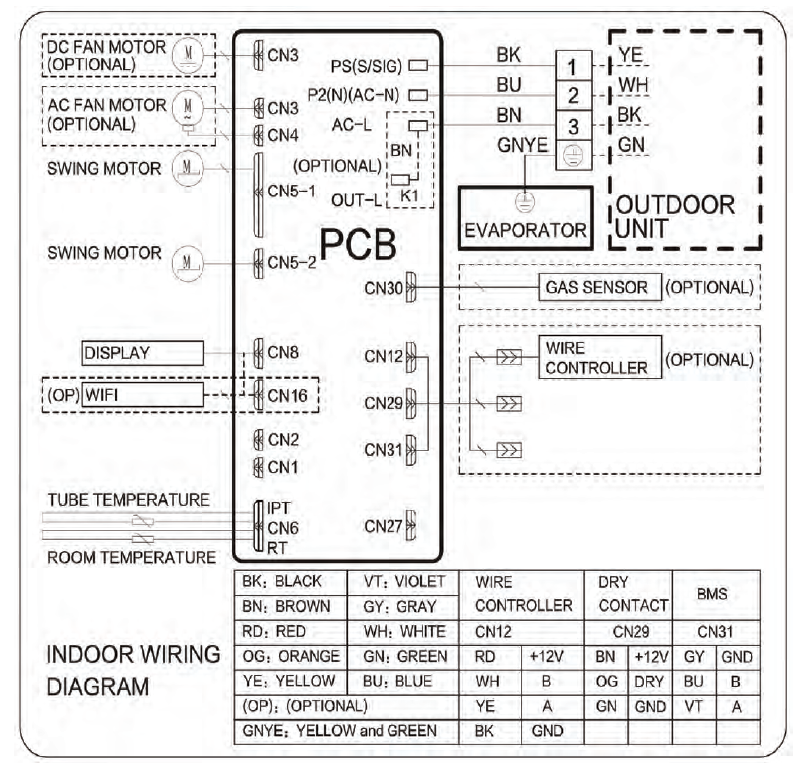

<h2 id="isPasted"><u>Introduction</u></h2><p>This article provides control board wiring diagrams for Quantum Ultra High-Wall (WYT-24) systems. This article includes control board wiring diagrams for the indoor and outdoor units.&#xA0;</p><h2 id="indoor-units"><u>Indoor Units</u></h2><p><strong>WT009ALSI24HLG | WT009GLSI24HLG | WT012ALSI24HLG | WT012GLSI24HLG | WT018GLSI24HLG | WT024GLSI24HLG</strong></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-d1a8c7ea-a8c2-4f44-bcf7-aeeb42cf6791-wyt24_control_board_wiring_diagrams_idu.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id="outdoor-units"><u>Outdoor Units</u></h2><p><strong>YN009ALSI24RPG | YN009ALSI24RPG</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-86c3b30a-30e3-4e8b-9cd6-e9619e97df15-wyt24_control_board_wiring_diagrams_odu_al.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><strong>YN009GLSI24RPG | YN012GLSI24RPG | YN018GLSI24RPG | YN024GLSI24RPG</strong><strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120514-0f4b4b3b-fde6-4bda-80b1-c6ff328e5e3b-wyt24_control_board_wiring_diagrams_odu_gl.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><br></p>

This article provides control board wiring diagrams for Quantum Ultra High-Wall systems.

Control Board Wiring Diagrams for Quantum Ultra High-Wall (WYT-24) Systems
