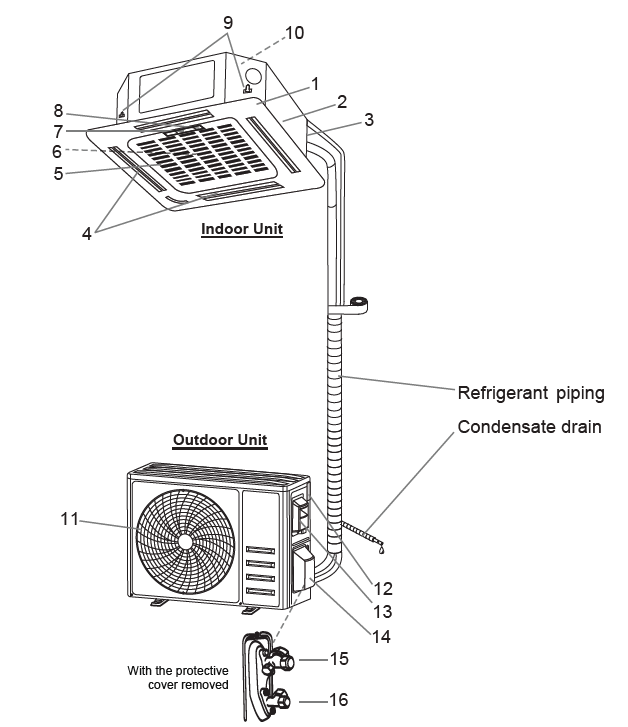

<h2 id="introduction"><u>Introduction</u></h2><p>Indoor units of the Quantum Ultra - Ceiling Cassette (CYT-24) ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible.&#xA0;</p><p>The ceiling cassette ductless series, which has an average 24-SEER2 rating, are factory-precharged with environmentally-friendly R454B refrigerant. &#xA0;</p><p>This series is equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, and automatic air-sweeping louvers. The series also includes Cooling, Heating, Dehumidification, and Ventilation modes. Ceiling cassette ductless mini split systems also come with remote supply ducting and fresh air intake options.</p><p>For more information, see this <a href="https://www.pdhvac.com/site/dl/cyt24/CYT24-BROC-2501.pdf" target="_blank" rel="noopener noreferrer">technical brochure</a>.&#xA0;</p><h2 id="indoor-units"><u>Indoor Units</u></h2><ul><li>CT009GLSILCFHG</li><li>CT012GLSILCFHG</li><li>CT018GLSILCFHG</li><li>CT024GLSILSFHG</li></ul><h2 id="outdoor-units"><u>Outdoor Units</u></h2><ul><li>YN009GLSI24RPG</li><li>YN012GLSI24RPG</li><li>YN018GLSI24RPG</li><li>YN024GLSI24RPG</li></ul>

Indoor units of the Quantum Ultra - Ceiling Cassette ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible.

Quantum Ultra - Ceiling Cassette (CYT-24) Overview
