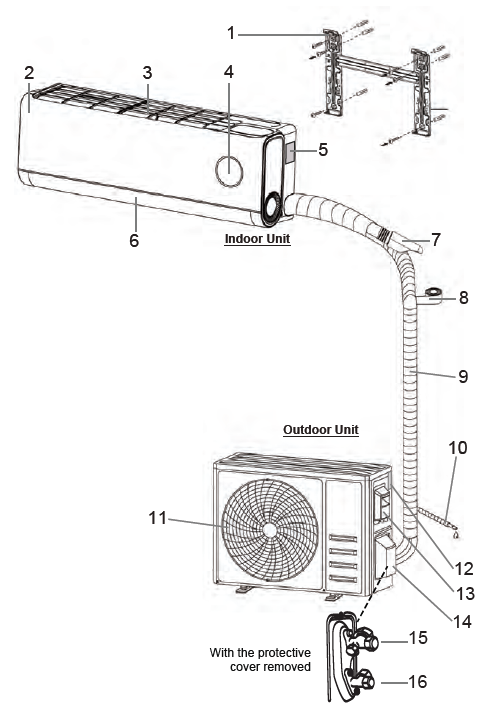

<h2 id="introduction"><u>Introduction</u></h2><p>Revolutionizing indoor comfort, the <a href="https://www.pioneerminisplit.com/collections/quantum-fresh-series-breathe-the-difference" target="_blank" rel="noopener noreferrer">Quantum Fresh (WYT-FA)</a> mini split blends advanced heating and cooling with the rejuvenating power of fresh air ventilation. The Quantum Fresh system uses R-32 refrigerant and has a 24-SEER2 rating.&#xA0;</p><p>The Quantum Fresh system uses inverter technology for precise climate control, while also drawing in outdoor air, filtering it, and blending it with indoor return air to help replenish oxygen and reduce stale buildup in your space.</p><p>For more information, see this <a href="https://www.pdhvac.com/site/dl/wytfa/WYTFA-BROC-2501.pdf" target="_blank" rel="noopener noreferrer">technical brochure</a>.&#xA0;</p><h2 id="system-components"><u>System Components</u></h2><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120117-31db57a7-0acc-4b54-9a7e-5bddc505d47e-wytfa_system_components.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p><table style="width: 39%; margin-right: calc(61%);" id="isPasted"><thead><tr><th class="fr-thick"><div style="text-align: center;">No.</div></th><th class="fr-thick"><div style="text-align: center;">Description</div></th></tr></thead><tbody><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">1</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Wall mounting plate</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">2</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Front panel</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">3</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Air filter</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">4</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">LED display</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">5</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Indoor unit rating label</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">6</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Air outlet, deflector, and flap</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">7</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Fresh air pipe</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">8</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">UV-resistant wrapping tape</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">9</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Refrigerant connecting pipe</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">10</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Condensate drainage pipe</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">11</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Air outlet grille</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">12</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Outdoor unit nameplate</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">13</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Terminal block cover</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">14</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Valve protection cover</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">15</td><td style="width: 86.7775%; text-align: center;" class="fr-thick">Gas (Suction) line valve</td></tr><tr><td style="width: 13.2225%; text-align: center;" class="fr-thick">16</td><td style="width: 86.7775%;" class="fr-thick"><div data-empty="true" style="text-align: center;">Liquid line valve</div></td></tr></tbody></table><h2 id><br></h2><h2 id="indoor-unit"><u>Indoor Unit</u></h2><ul><li>WT012GLUI25FVQ</li></ul><h2 id="outdoor-unit"><u>Outdoor Unit</u></h2><ul><li>YN012GLUI25RPQ</li></ul>

The Quantum Fresh mini split blends advanced heating and cooling with the rejuvenating power of fresh air ventilation.

Quantum Fresh (WYT-FA) Overview
