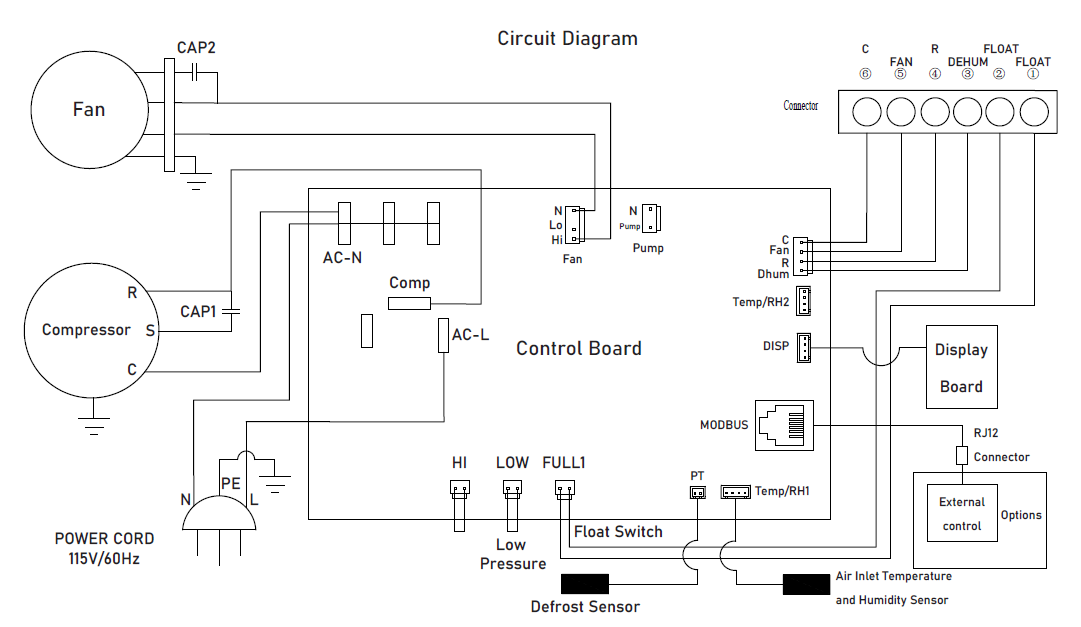

This article provides the wiring diagram for <a href="https://www.pioneerminisplit.com/products/70-ppd-whole-house-ductable-high-performance-dehumidifier-115v" target="_blank" rel="noopener noreferrer">QHD070 Whole-House Ducted Dehumidifiers</a>.<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026021120-36386c95-42af-41f6-b302-6418e3bdd402-qhd_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">

This article provides the wiring diagram for QHD070 Whole-House Ducted Dehumidifiers.

Wiring Diagram for QHD070 Whole-House Ducted Dehumidifiers
