Connecting the Drain Fitting for QHD070 Whole-House Ducted DehumidifiersUpdated 4 days ago

Introduction

Follow these steps to properly connect the drain fitting for the QHD070 Whole-House Ducted High Performance Dehumidifier (QHD).

Steps

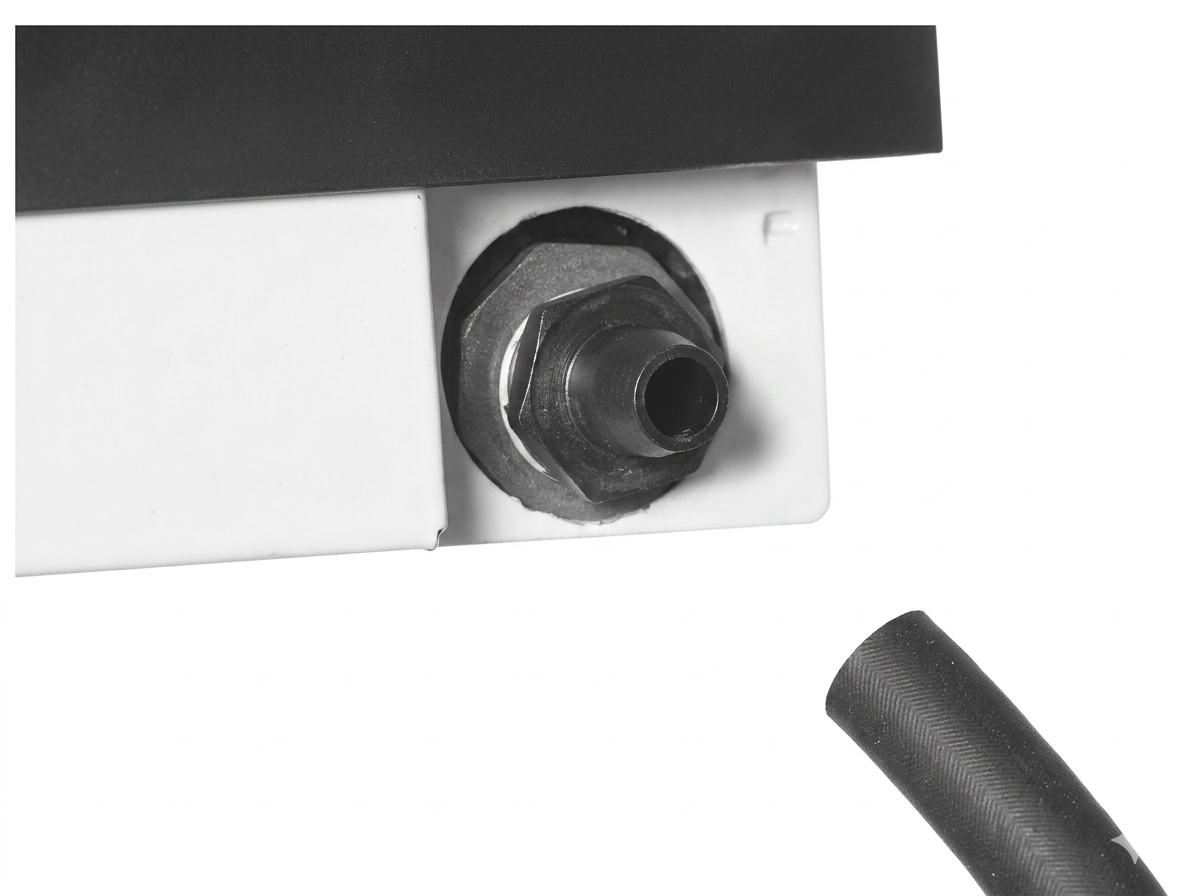

1. Connect a 3/4 inch-NPT drain fitting to the drain port.
2. Secure the drain fittings using clamps and snap rings.

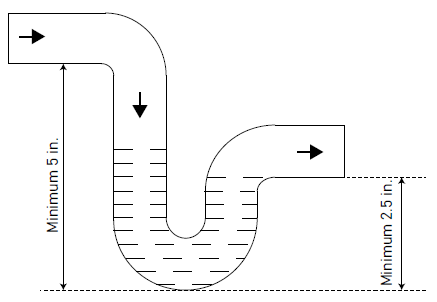

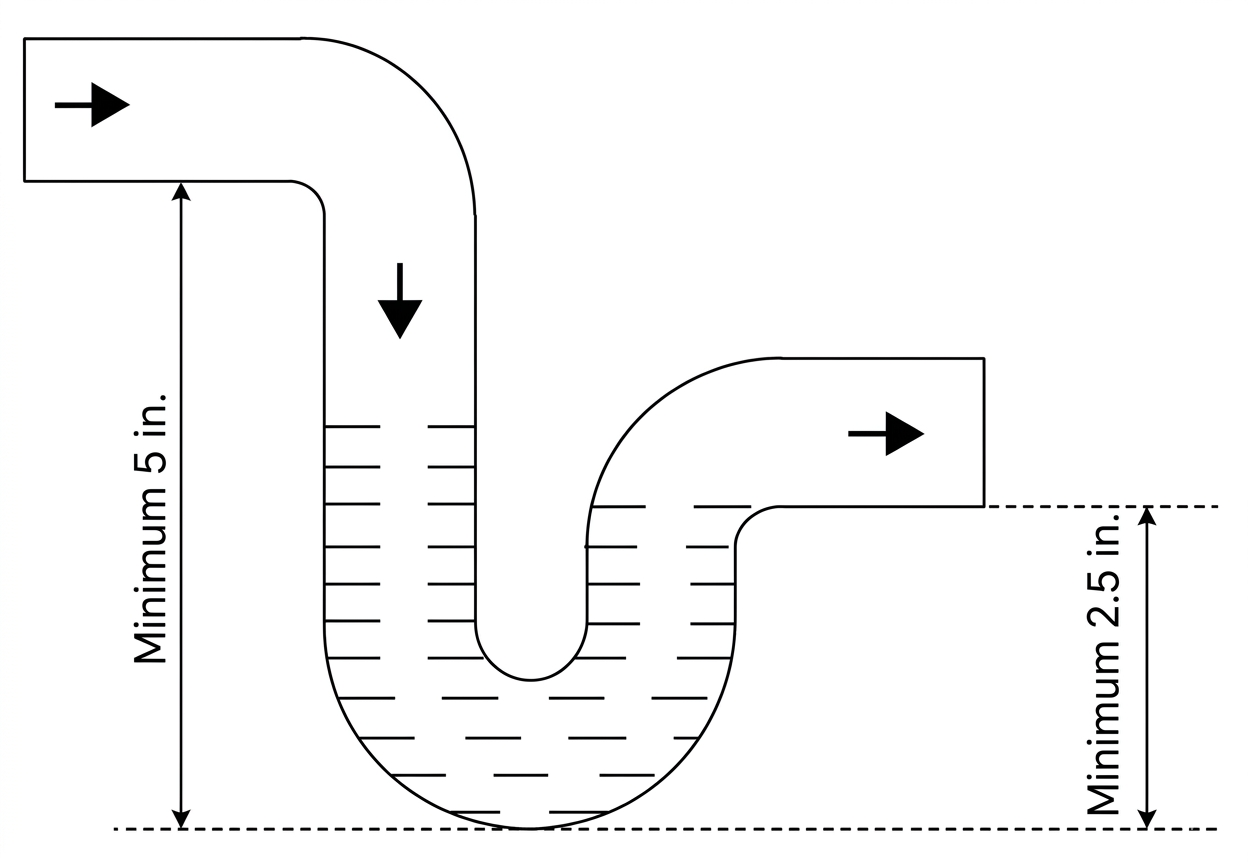

3. Install the drain piping with a continuous downward slope and connect it to the appropriate drains or condensate pumps to ensure smooth drainage.
