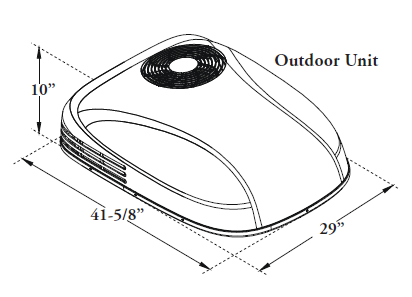

Outdoor Unit
Dimensions (inches/mm)			Weight (lbs/kg)
Length	Width	Height	Weight (lbs/kg)
41-5/8 in	29 in	10 in	92.6 lbs
1,057 mm	737 mm	254 mm	42 kg

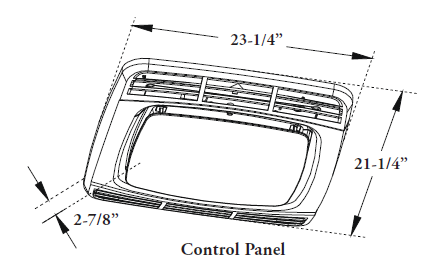

Control Panel
Dimensions (inches/mm)			Weight (lbs/kg)
Length	Width	Height	Weight (lbs/kg)
21-1/4 in	23-1/4 in	2-7/8 in	8.2 lbs
540 mm	591 mm	73 mm	3.7 kg

Dimensions & Weight for Rooftop RV SystemsUpdated 14 days ago

Full System Model Number

Outdoor Unit

Control Panel
