Full Inverter Rooftop RV Air Conditioner Heat Pump (PYZ) OverviewUpdated 2 days ago

Introduction

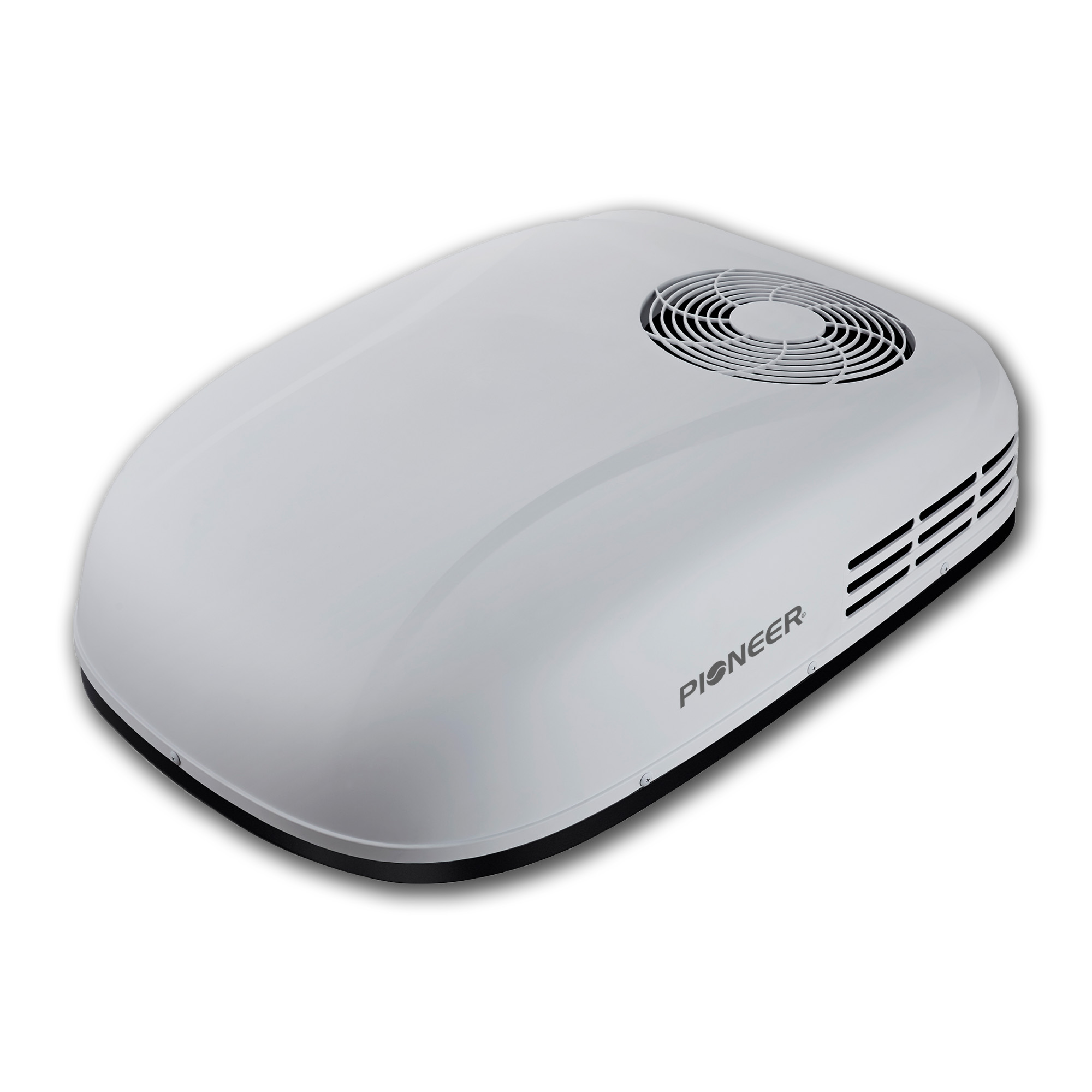

The Full Inverter Rooftop RV Air Conditioner Heat Pump (PYZ) is ideal for standard RV roof openings (14-1/2 x 14-1/4 inches or 15-3/4 x 15-3/4 inches), and integrates seamlessly into most setups. Whether exploring the desert or camping in the mountains, this rugged and efficient air conditioner heat pump keeps users comfortable wherever the road takes them.

Explore the Open Road Like Never Before

By offering 13,500 BTUs of efficient heating and cooling, this series covers the needs of most recreational vehicles and travel destinations. Since the power draw is minimal at under 1.5 kW for both heating and cooling modes, the system can be easily ran off solar panels and/or batteries throughout the night. The system has an outdoor ambient operation temperature range of 28-109°F (-2-43°C).

Multiple Methods of Easy Control

Individuals can use the handheld remote that comes with the system, or connect the system to the internet via the free Pioneer Airlink app and use their phones instead. All systems that connect to the app can be controlled by the voice assistant as well.

Full System Model Number

PYZ012AZUDCIPD

For more information, see this technical brochure.

System Components

These illustrations are for explanatory purposes. The actual shape of the unit may be slightly different. The shape shall prevail.

Accessories & Components

The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.

Use all of the installation parts and accessories to successfully install the system.

Quantity	Name	Appearance
1	Decorative inside panel
1	Handheld remote controller
3	Air outlet (Optional)	/
1	33-inch duct hose kit (Optional)	/
