PYR009AZUDCIPD Parts ListUpdated 6 days ago

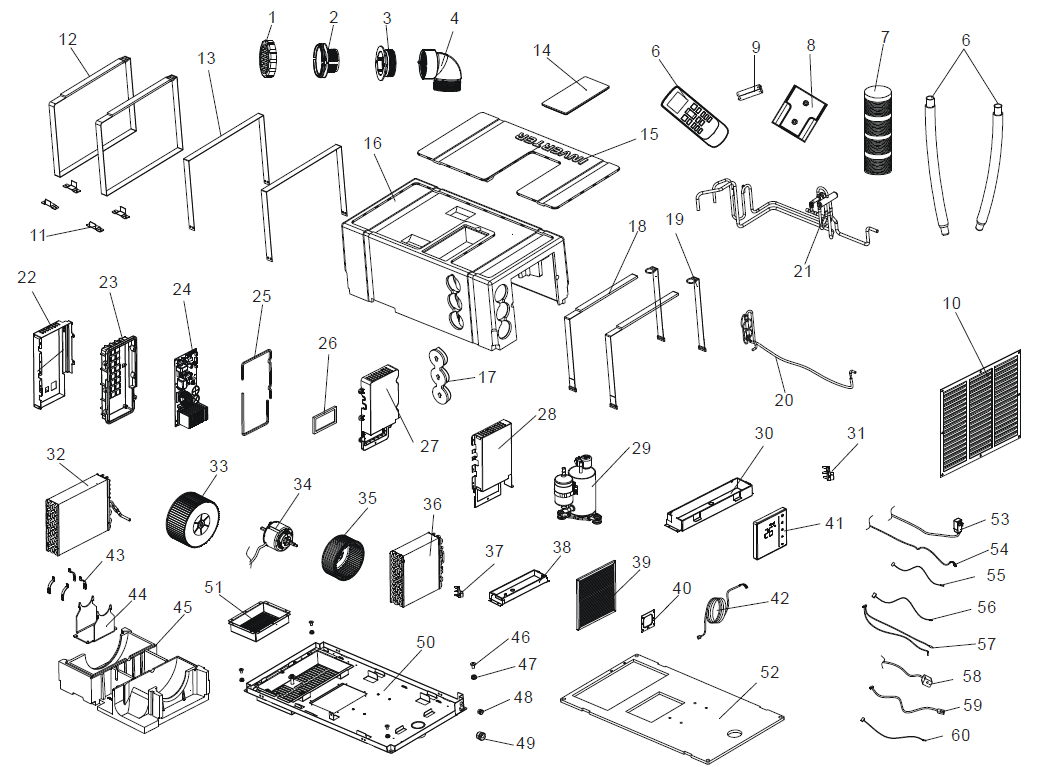

This article includes parts lists for the PYR009AZUDCIPD system. This system is part of the Under-Bench RV Inverter series.
| No. | Description | No. | Description |
| 1 | Grille | 31 | Sensor Bracket |
| 2 | Grille Support | 32 | Condenser |
| 3 | Bushing | 33 | Condenser Fan Blower |
| 4 | 90° Elbow | 34 | Motor |
| 5 | Remote Control | 35 | Evaporator Fan Blower |
| 6 | Drainpipe | 36 | Evaporator |
| 7 | Air Pipe | 37 | Sensor Bracket |
| 8 | Remote Support | 38 | Drain Pan for Evaporator |
| 9 | Batteries (AAA) | 39 | Filter |
| 10 | Return Air Grille | 40 | Wall Control Bracket |
| 11 | Buckle | 41 | Wall Pad Controller |
| 12 | Fastening Belt C | 42 | Wall Pad Wire Harness |
| 13 | EPP Fastening Plate | 43 | Motor Retaining Clip |
| 14 | Accessory Box EPP | 44 | Motor Bracket |
| 15 | Housing Cover EPP | 45 | Base EPP |
| 16 | Housing EPP | 46 | Plastic Bracket |
| 17 | Air Outlet Plug EPP | 47 | Rubber Bracket |
| 18 | Fixing Belt A | 48 | Fastener (Pad Harness) |
| 19 | Fixing Belt C | 49 | Fastener (Power Cord) |
| 20 | Capillary Assemblies | 50 | Chassis |
| 21 | 4-Way Valve Assemblies | 51 | Air Outlet Fixing Plate |
| 22 | Electric Box Base Plate | 52 | Chassis Foam |
| 23 | PCB Mounting Box Base | 53 | Power Cord |
| 24 | PCB Main Board | 54 | Pad Connection Cord |
| 25 | Silicone Seal | 55 | Outdoor Temperature Sensor |
| 26 | Heatsink Cover | 56 | Outdoor Coil Sensor |
| 27 | PCB Mounting Cover | 57 | Indoor Temperature Sensors |
| 28 | Electrical Box Plate | 58 | 4-Way Valve Coil |
| 29 | Compressor | 59 | Motor Wiring Harness |
| 30 | Drain Pan for Condenser | 60 | Discharge Temperature Sensor |
