Under-Bench RV Inverter Packaged Heat Pump Air Conditioner (PYR) OverviewUpdated 2 days ago

Introduction

The Under-Bench RV Inverter Packaged Heat Pump Air Conditioner (PYR) offers a low-profile and highly-durable package system that will keep the motor vehicle at cozy temperatures.

Intended for under-the-bench installations, easily attach three ducts to serve separate areas of the dwelling.

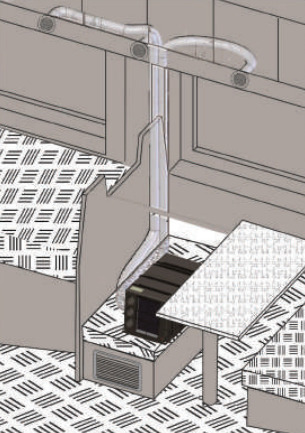

Compact Size and Easily Concealed

The system's small footprint and light power-draw minimizes the load on the vehicle, with just a standard 115V outlet needed. The multiple air outlets, quiet performance, and simple shape allow individuals to easily mount and hide the system in a preferred location, such as under a row seat or bench.

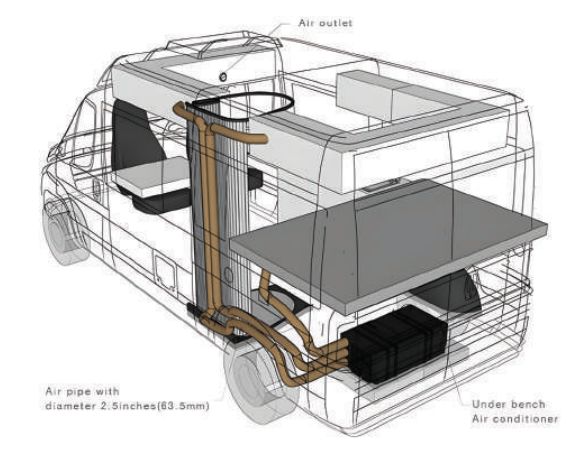

Versatile and Perfect for Retro-Fits

The under-bench heat pump provides a solution for vehicles with limited space in the roof or cabin. The system serves as an alternative to the standard rooftop system and frees up space up top, which provides benefits like being able to add more solar panels. Only minor modifications to the vehicle bed are needed for full functionality.

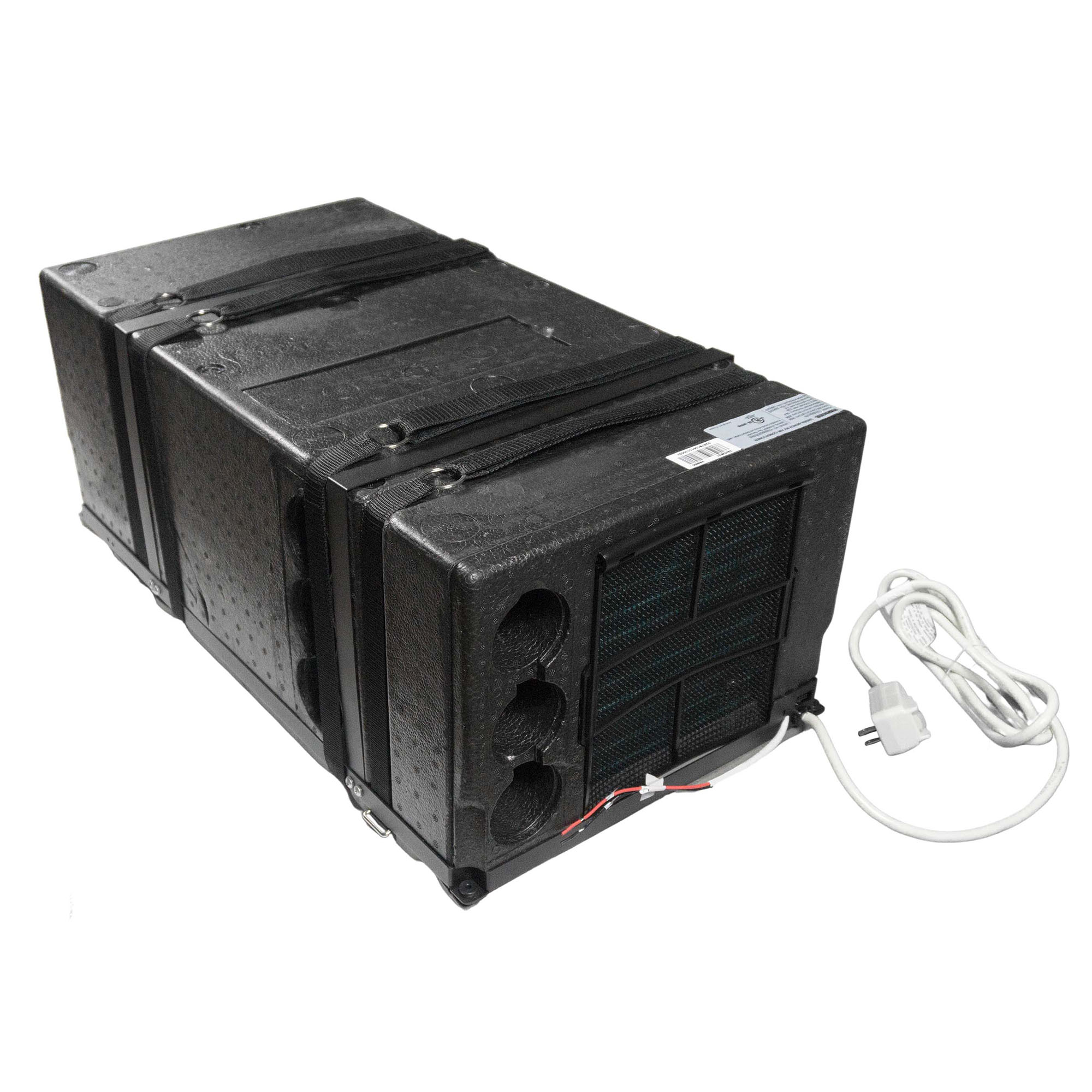

Full System Model Number

PYR009AZFRVBKE

For more information, see this technical brochure.

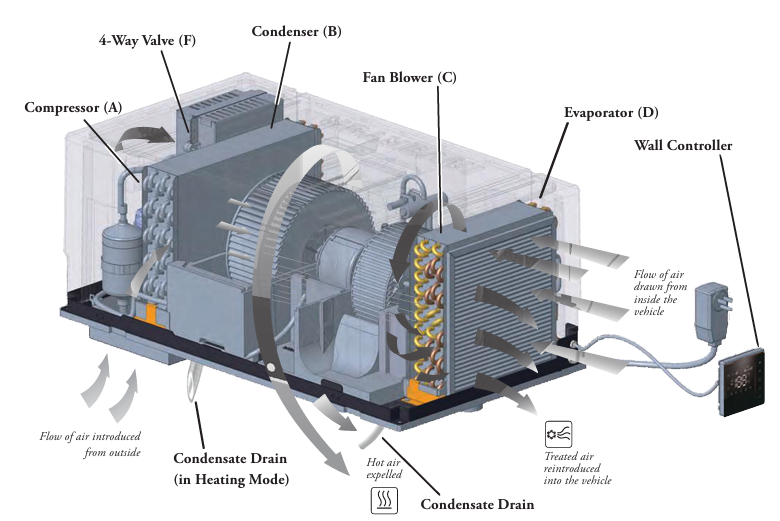

System Components

These illustrations are for explanatory purposes. The actual shape of the unit may be slightly different. The shape shall prevail.

Accessories & Components

The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.

Use all of the installation parts and accessories to successfully install the system.

Quantity	Name	Appearance
1	Decorative grille
1	Handheld remote controller
1	Wired controller
3	Air outlet (Optional)	/
1	33-inch duct hose kit (Optional)	/
