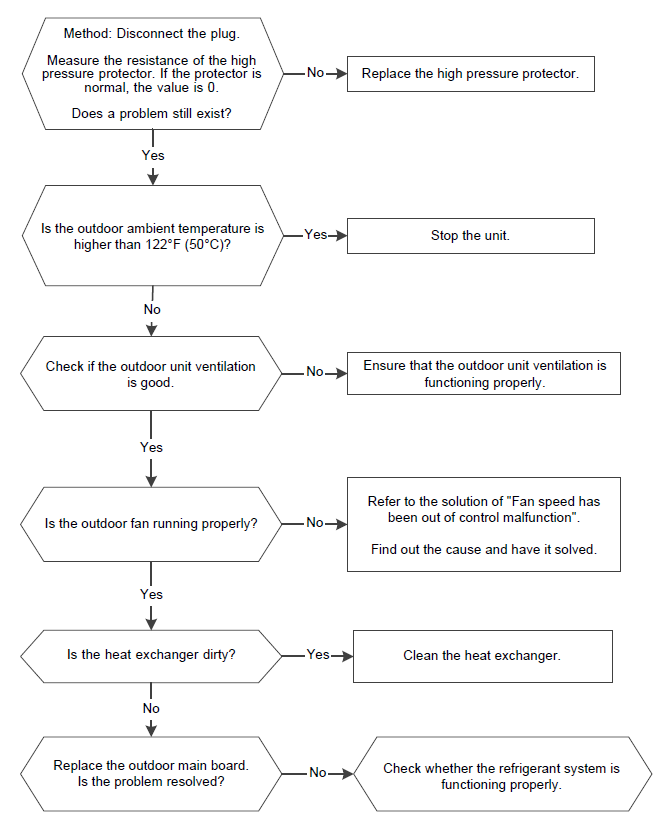

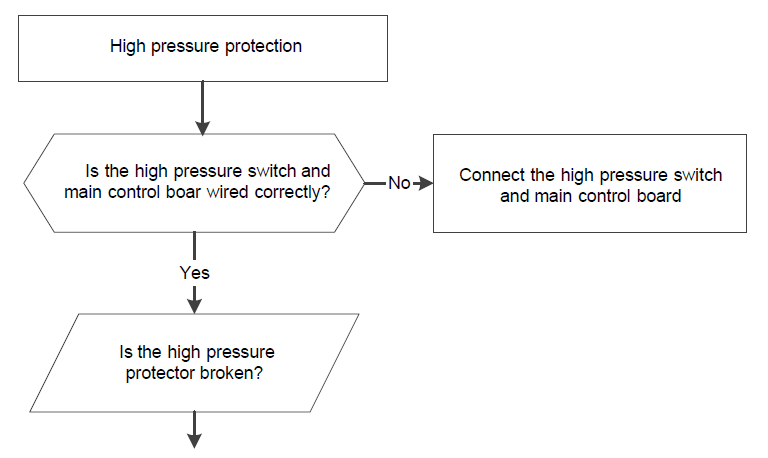

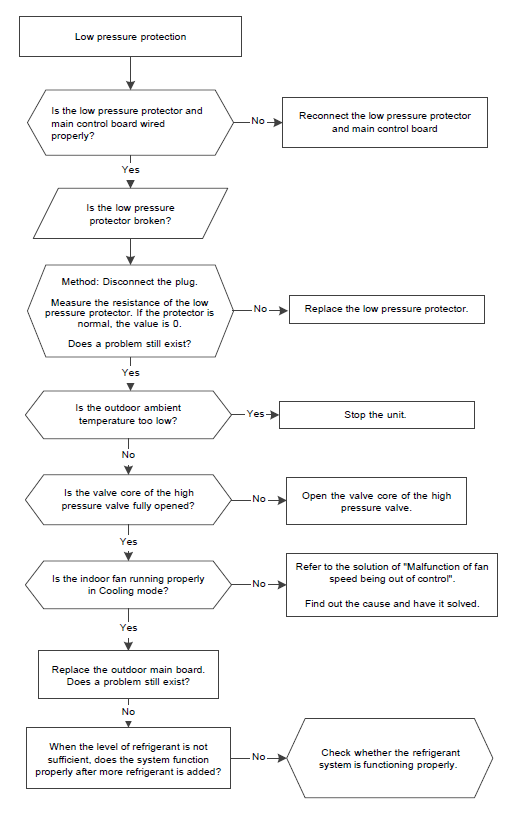

PC03 Error Code: High or Low Pressure ProtectionIf the outdoor pressure switch shuts down the system because the high pressure exceeds 4.4 MPa or the low pressure falls below 0.13 MPa, the LED display shows a fault code.&#xA0;&#xA0;Recommended Parts to Prepare<ul><li style="font-size: 16px;">Connection wires</li><li style="font-size: 16px;">Outdoor fan</li><li style="font-size: 16px;">Outdoor unit PCB</li><li style="font-size: 16px;">Pressure switch</li><li style="font-size: 16px;">Refrigerant</li></ul><h2 id="high-pressure-protection">High Pressure Protection</h2><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101416-3218af16-63e3-4786-83a6-28697189e843-pc03_code_highpressure.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered"><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101416-c4896784-994a-44a8-8b88-10412f98532f-pc03_code_highpressure_2.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered"><h2 id="low-pressure-protection">Low Pressure Protection</h2><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101416-397370de-b115-44f8-9f8c-52ad9cb74a78-pc03_code_lowpressure.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates high or low pressure protection has been activated.

PC03 Error Code
