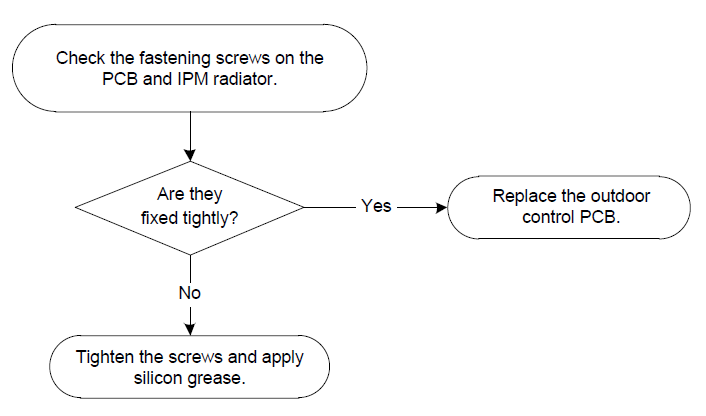

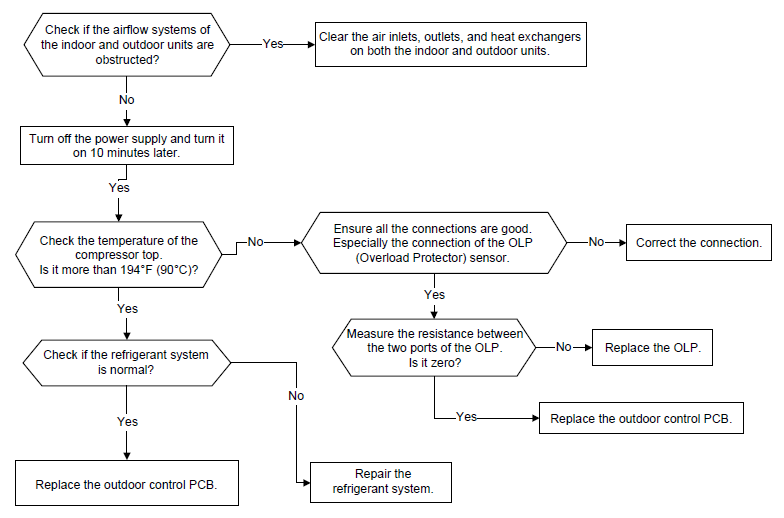

PC02 Error Code: Compressor Top Temperature or IPM Temperature ProtectionFor models with overload protection, the LED display shows a fault code if the sampling voltage is not 5 V or if the IPM temperature exceeds the specified limit. For models without overload protection, follow the second flowchart.&#xA0;Recommended Parts to Prepare<ul><li style="font-size: 16px;">Connection wires</li><li style="font-size: 16px;">High pressure protector</li><li style="font-size: 16px;">IPM module board</li><li style="font-size: 16px;">Outdoor unit PCB</li><li style="font-size: 16px;">System blockages</li></ul>1.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101416-8a012aff-b34b-4047-9036-f599c52e60c6-pc02_code_1.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">2.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101416-51b1a520-95e3-4acf-8873-0feaf9c4c07d-pc02_code_2.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates that the compressor top temperature or IPM temperature protection has been activated.

PC02 Error Code
