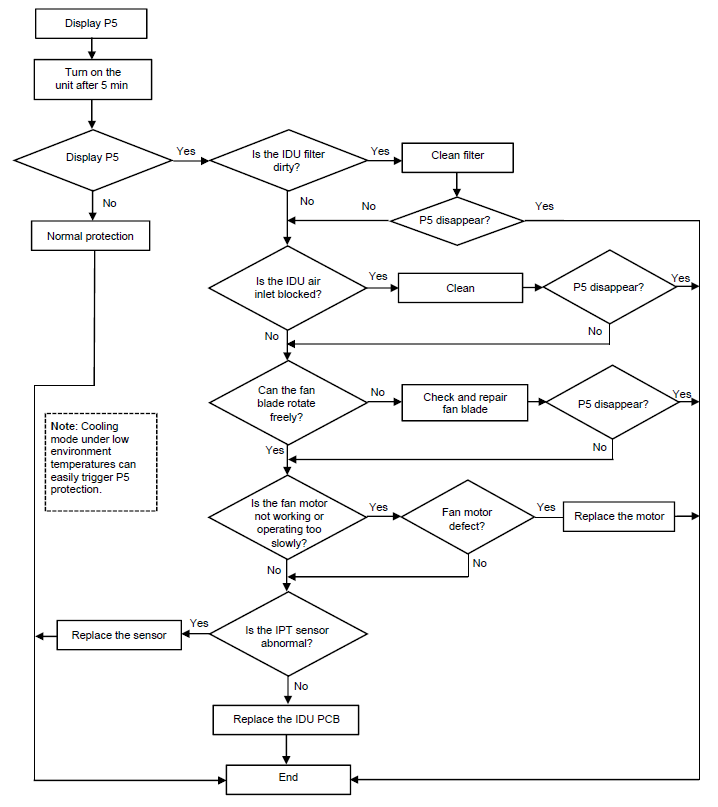

P5 Error Code: Cooling / Dry Mode Overcooling ProtectionIn Cooling or Dry mode, after the compressor has run for 6 minutes, if the IPT stays below 34&#xB0;F (1&#xB0;C) for 3 consecutive minutes, the outdoor unit stops and the system displays error code &quot;P5&quot;.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101316-a75206ea-27ad-459a-82c0-f19daaf2f1a2-p5_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates the system is undergoing overcooling protection in Cooling or Dry mode.

P5 Error Code
