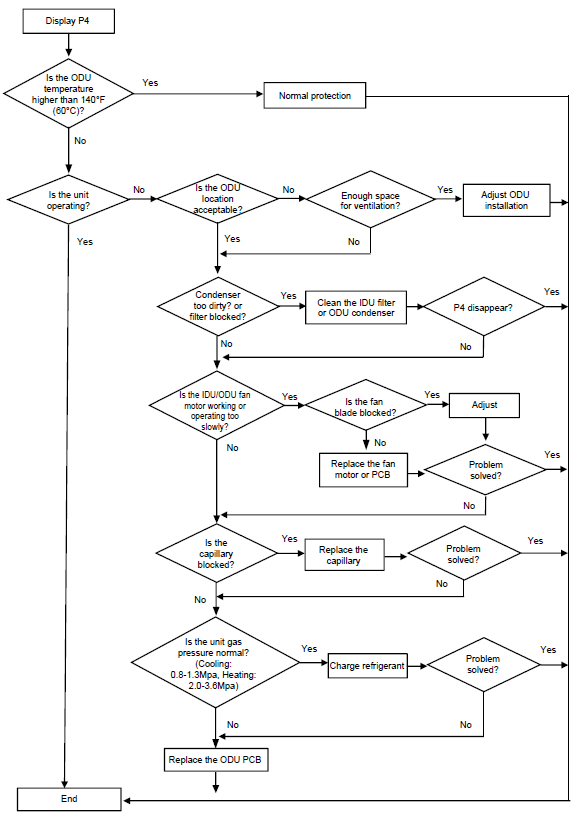

<p id="isPasted"><strong>P4 Error Code: Outdoor Unit High Discharge Temperature Protection</strong></p><h2 id><u><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101316-18d3f9d0-0501-4ebe-9688-6c650fd3d992-p4_code.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></u><br></h2>

This code indicates that the outdoor unit’s high discharge temperature protection has been activated.

P4 Error Code
