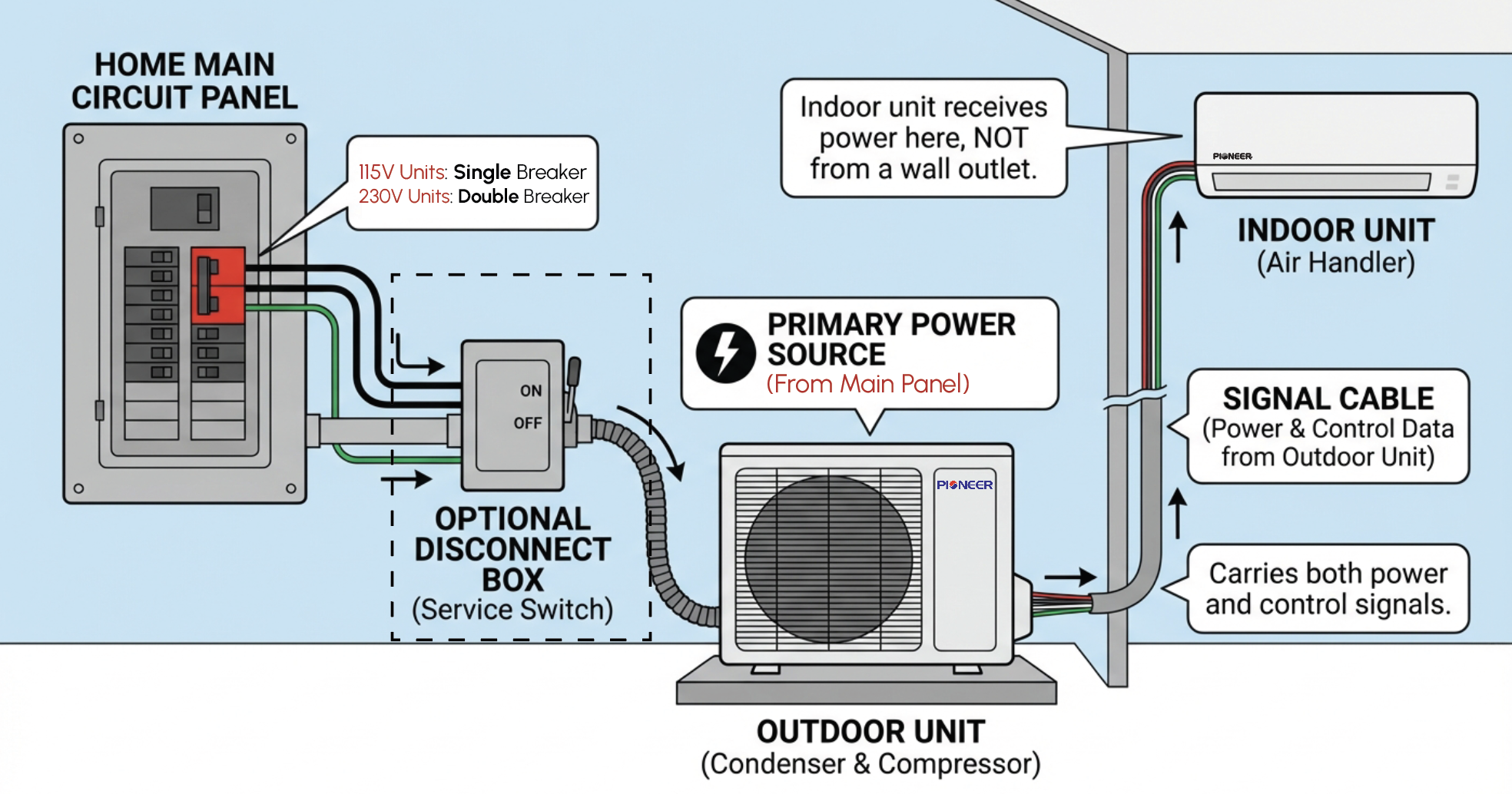

<h2 id="how-do-mini-splits-get-power">How Do Mini Splits Get Power?</h2>The main circuit panel is the primary power source for the outdoor unit. While 115V systems use single-pole breakers, 230V systems require double-pole breakers.A disconnect box, or service switch, connects the main circuit panel to the outdoor unit.The outdoor unit, which contains the condenser and compressor, connects to the indoor unit via a communication or signal cable. This cable delivers both power and control signals to the indoor air handler, eliminating the need for a separate wall outlet.<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026011513-6a658334-c276-446b-8868-c4db419e52ef-how_mini_splits_are_powered.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">

Master the electrical and power requirements for Pioneer mini-split systems. Learn about voltage options and breaker sizes here.
