Wrap the Lines & Mount the Indoor Unit for Wall-Mounted SystemsUpdated 11 hours ago

Introduction

This article explains how to wrap the lines and mount the indoor unit for wall-mounted systems.

This article applies for the following systems:

• Diamante Essenza High-Wall (WYT-17)
• Diamante Pro High-Wall (WYT-20)
• Quantum Ultra High-Wall (WYT-24)
• Quantum Hyperformance High-Wall (WYT-25)
• Quantum Fresh High-Wall (WYT-FA)

Notes

• Before wrapping the lines and mounting the indoor unit, install the indoor and outdoor drain line, refrigerant piping, and communication cable.
• For Quantum Fresh systems, install the fresh air pipe alongside the other components.

Steps

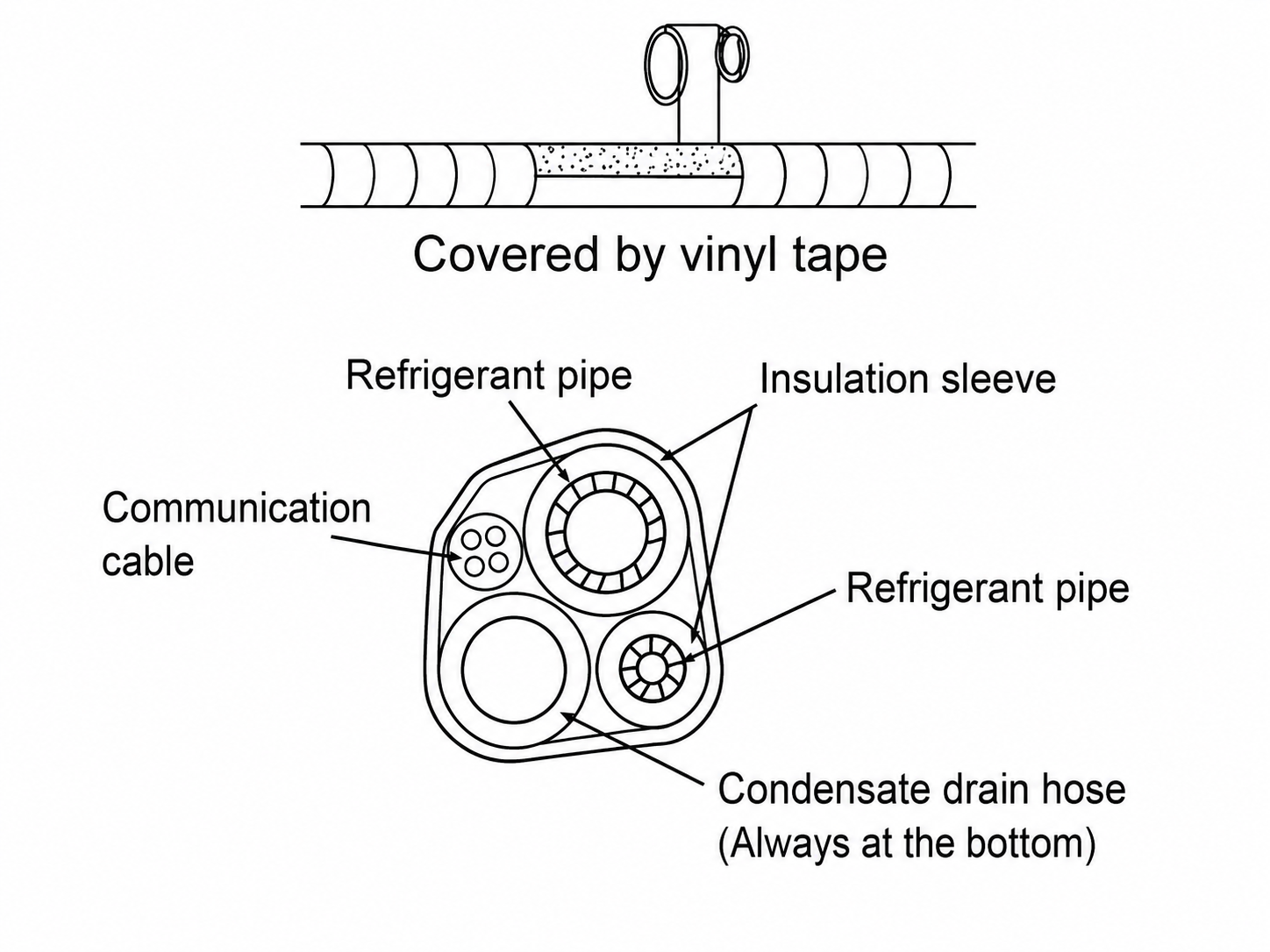

1. Arrange the refrigerant pipes, communication cable, and drain line correctly. Ensure the drain line is kept at the bottom so water can flow freely. For Quantum Fresh systems, include the fresh air pipe in the bundle.

2. Lag the pipe joints with insulation material and secure them with vinyl tape as depicted in the figure.

3. Route the bundle through the wall hole and securely mount the indoor unit onto the installation plate.

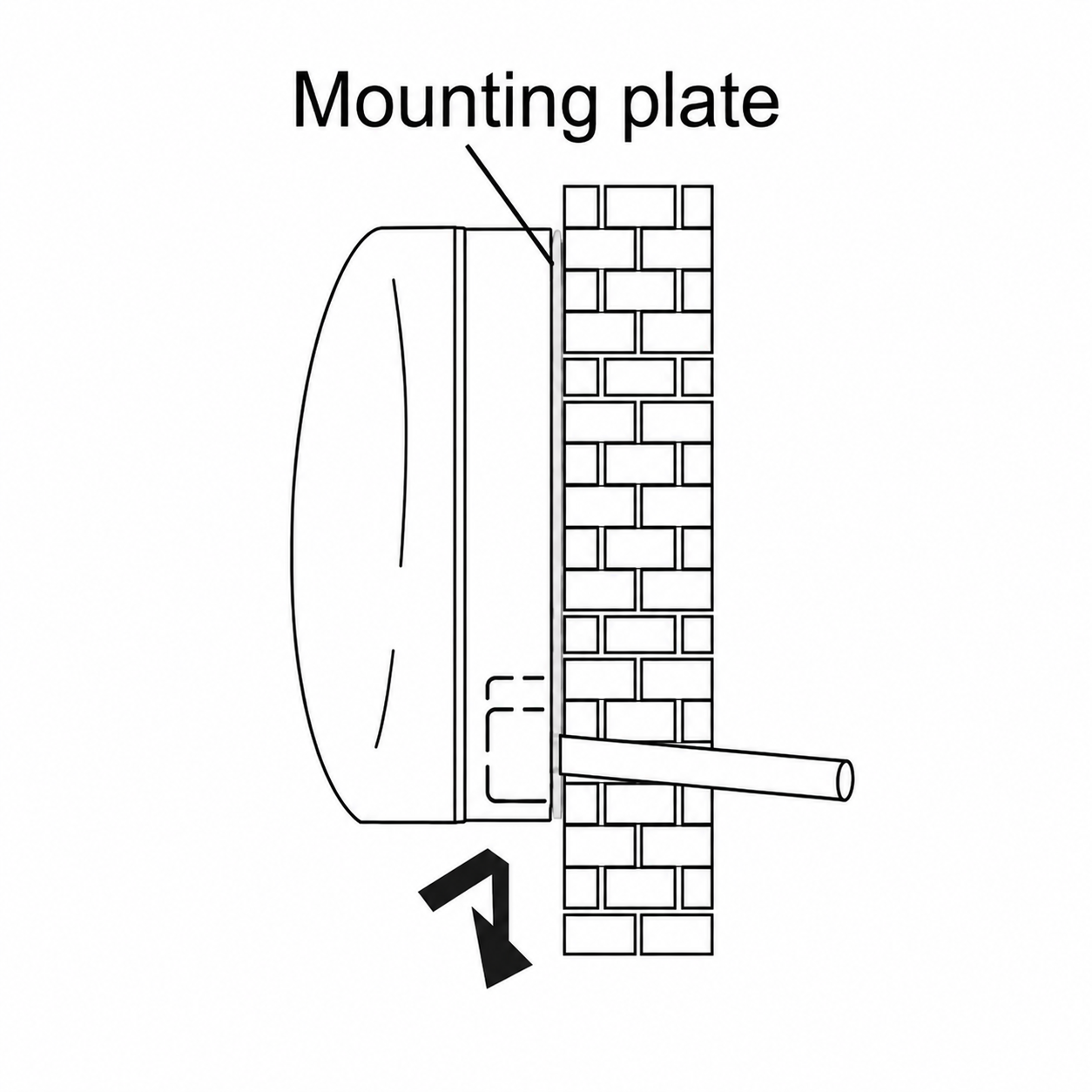

4. Press or push the lower part of the indoor unit so it clicks onto the mounting plate.
