Install the Main Body for FYB-24 Floor/Low-Wall Mounted SystemsUpdated 4 hours ago

Introduction

This article explains how to install the main body for FYB-24 floor/low-wall mounted systems.

Notes

• If the pipe comes out of the left, it is necessary to loosen the screws on the bottom mounting plate. If the pipe comes out in other directions, it is not necessary.
• It is recommended to attach it on the wall according to the hanging hole indicated by the arrow on the mounting plate. Install the mounting plate horizontally.
• After installation, keep the unit horizontal and level without tilting.

Steps

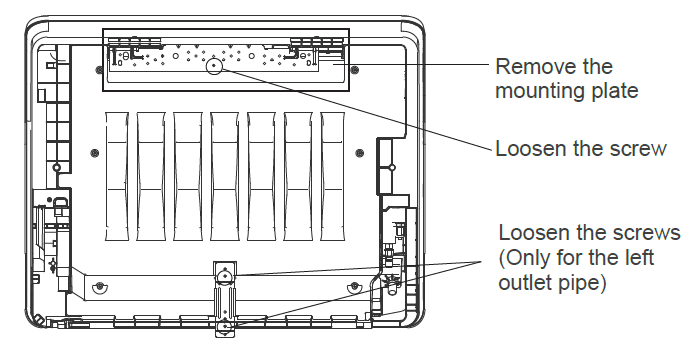

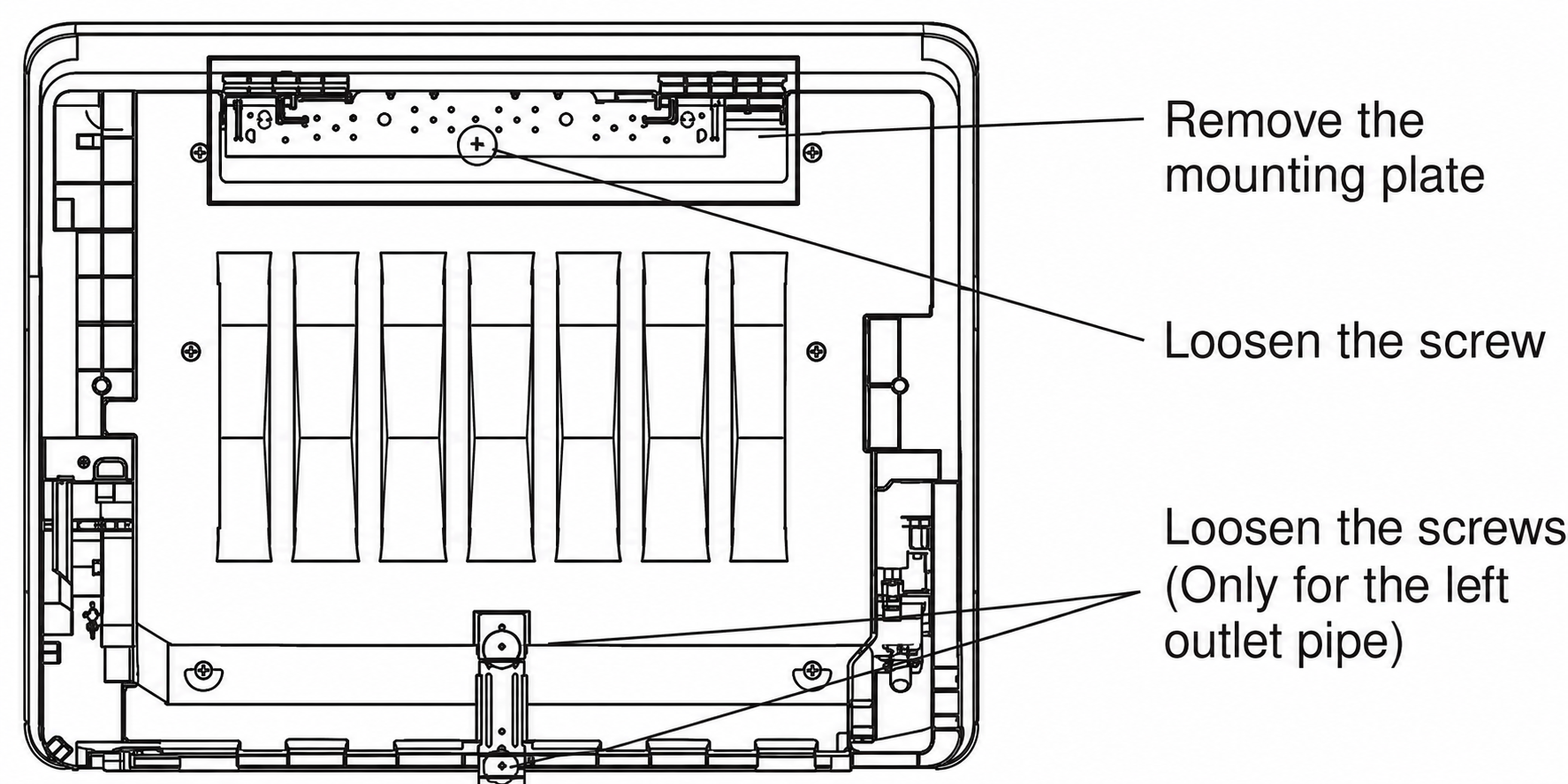

1. After loosening the screws, remove the mounting plate from the unit.

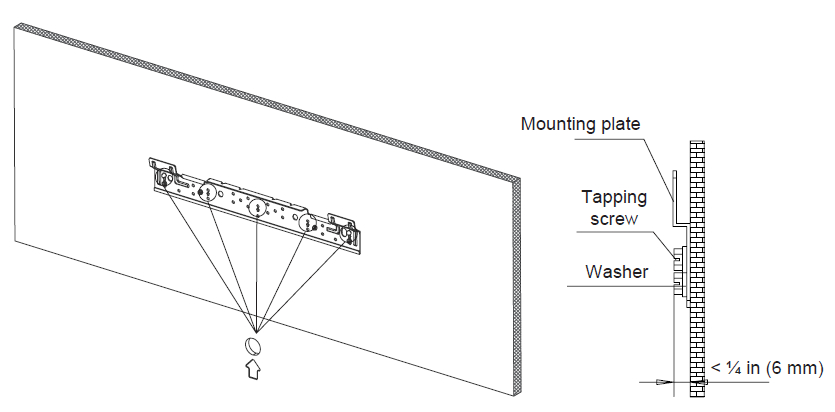

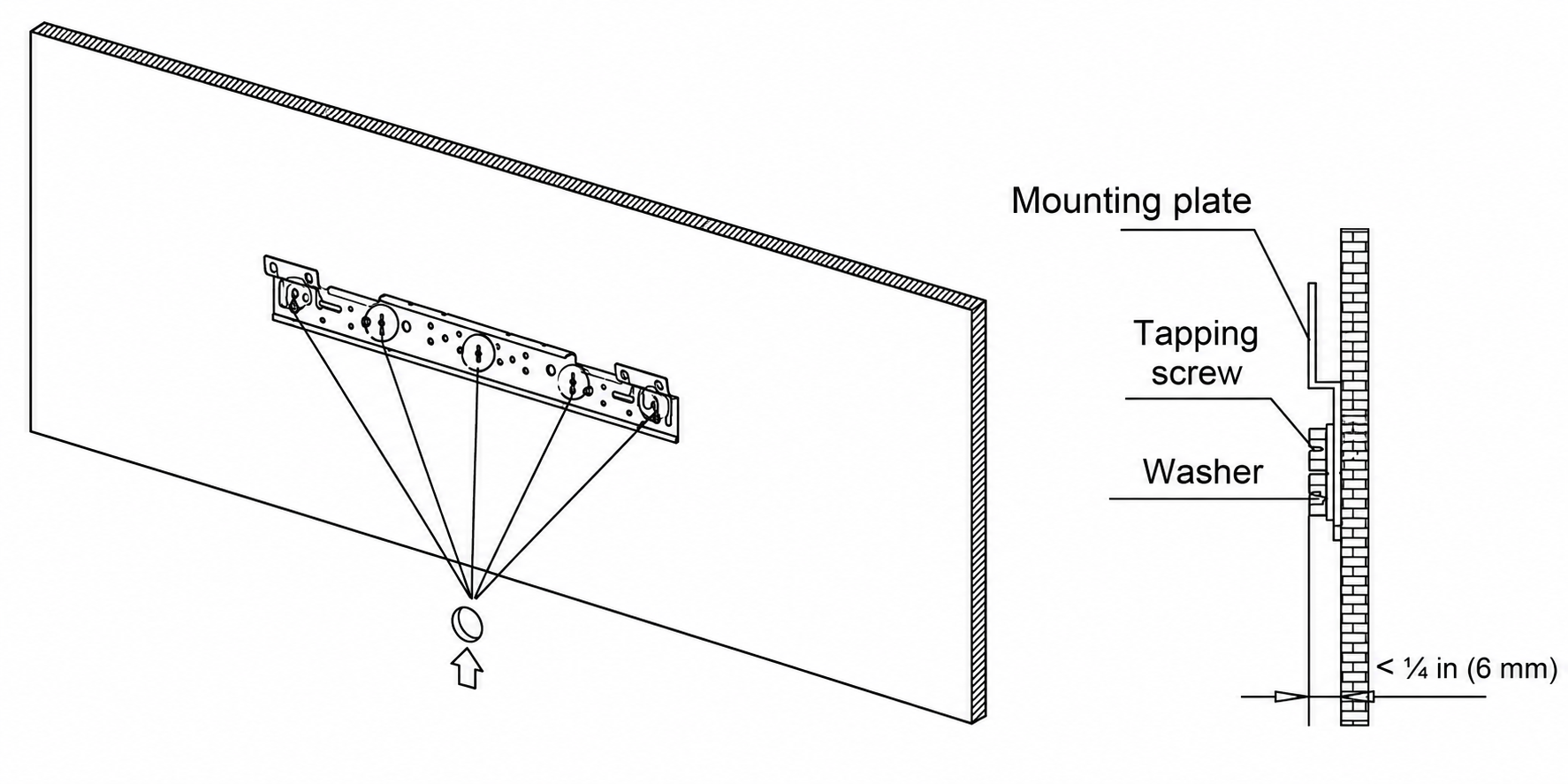

2. Secure the mounting plate with a tapping screw onto the wall.

It is recommended to secure it on the wall according to the hanging hole indicated by the arrow on the mounting plate. Install the mounting plate horizontally.

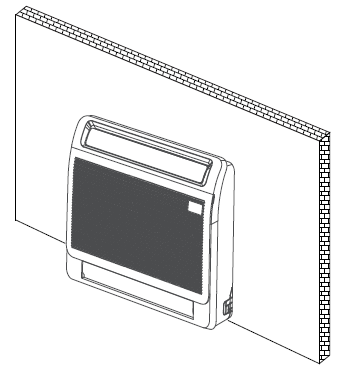

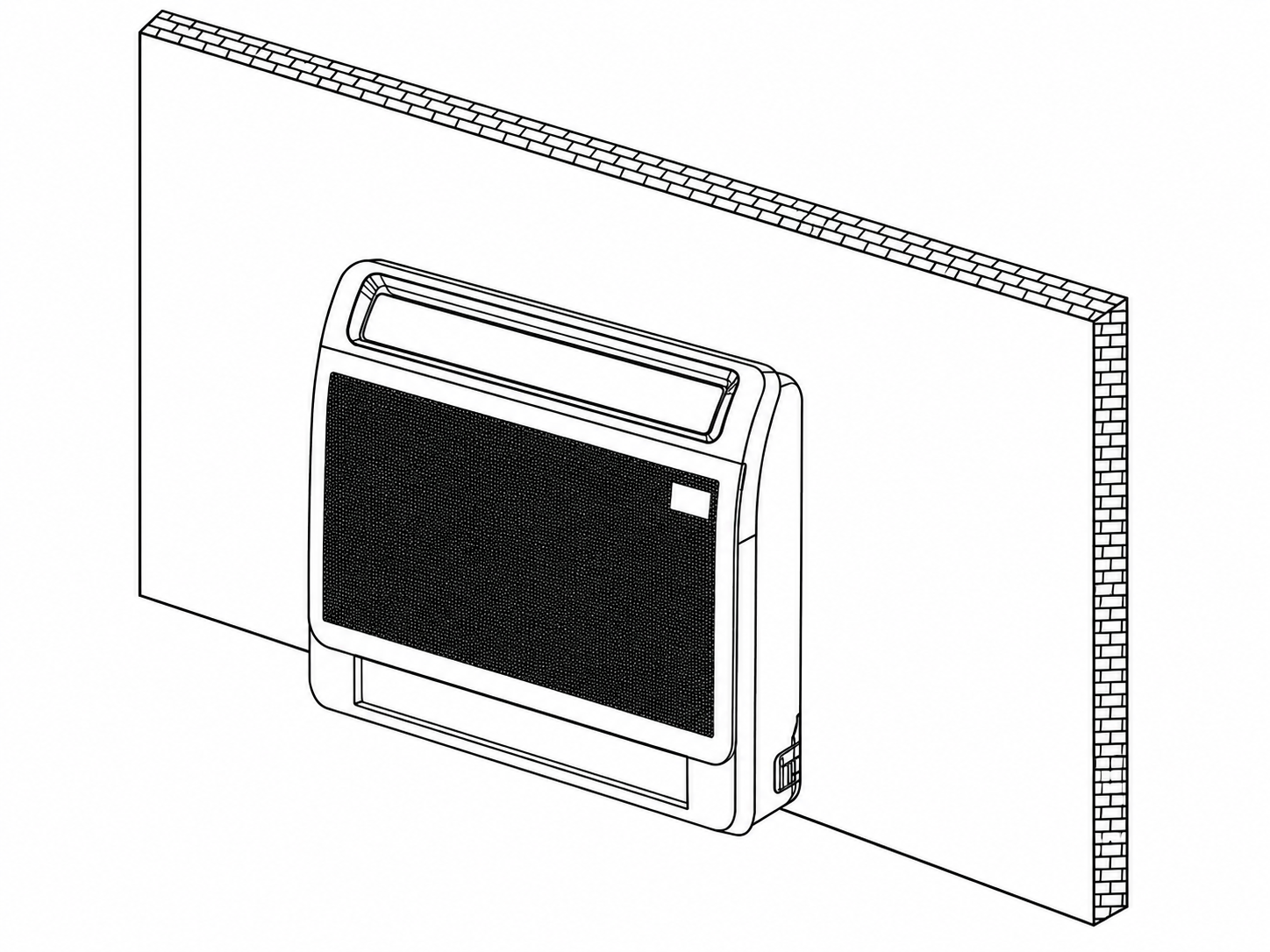

3. Hang the indoor unit on the mounting plate. Install the body vertically. The bottom of the body can touch the floor or remain suspended.

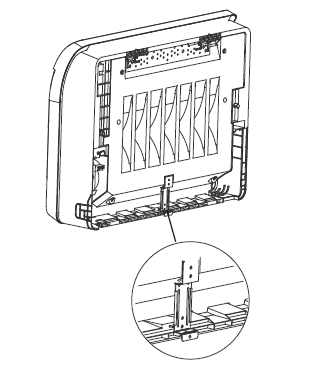

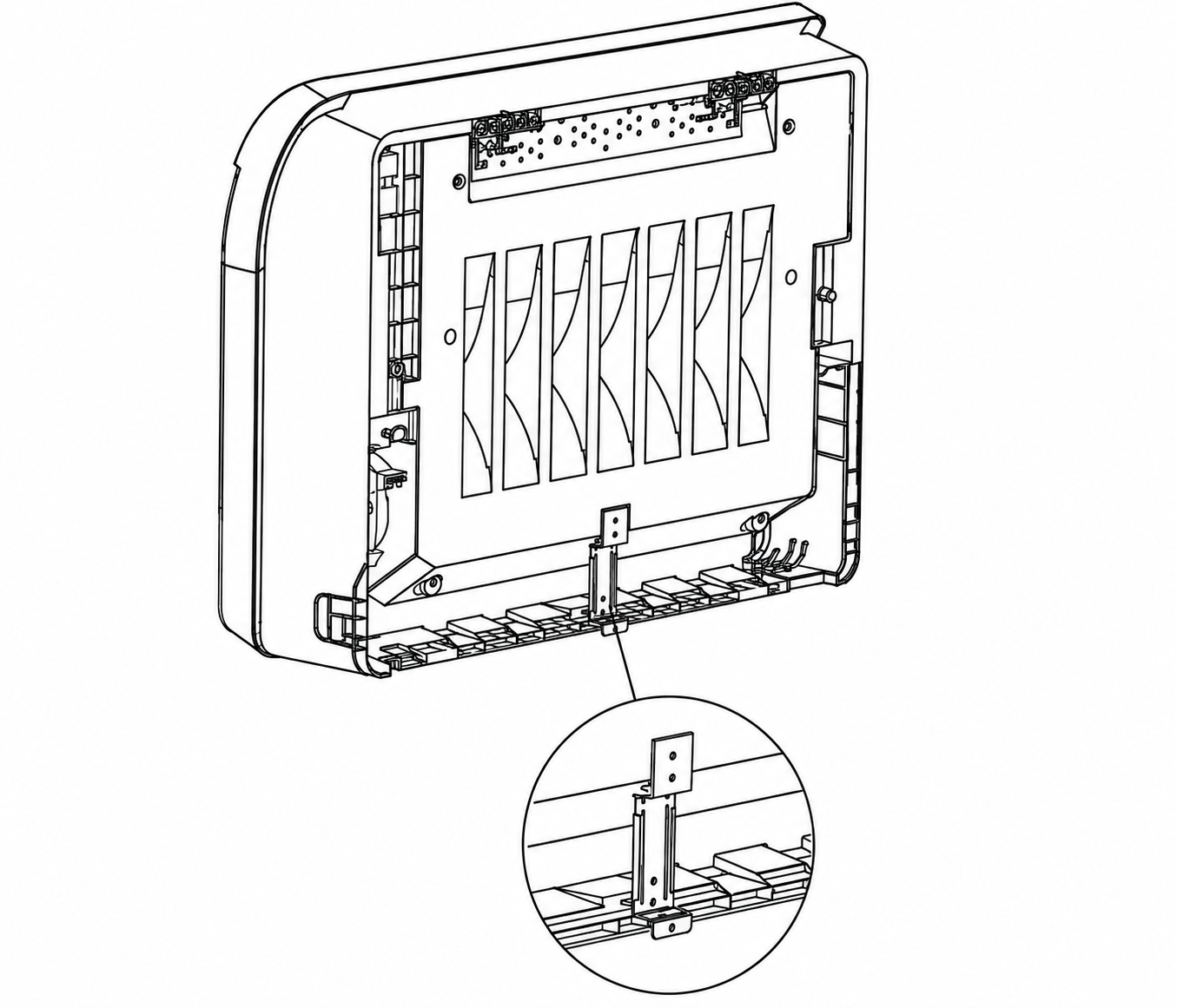

4. Bottom mounting plate installation without skirting line (Option A).

Secure the bottom mounting plate directly to the wall.

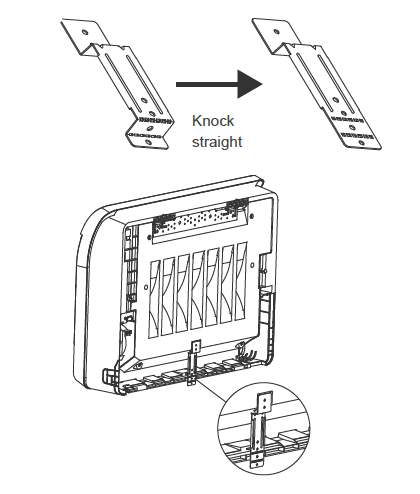

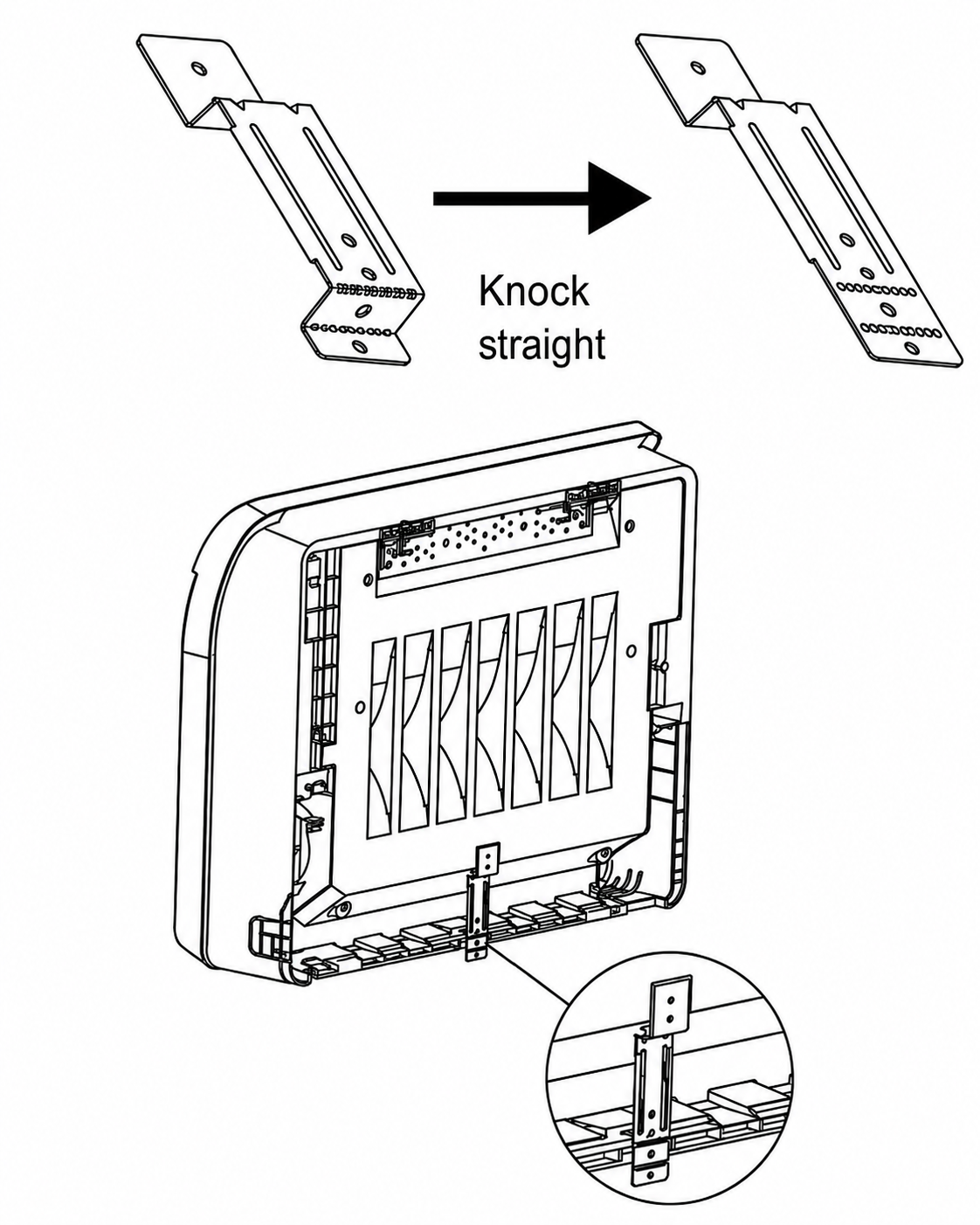

4. Installation with skirting line (Option B).

Knock the bottom mounting plate straight with a tool and secure it on the skirting line.
