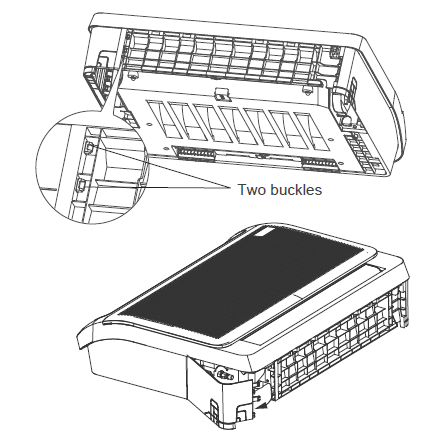

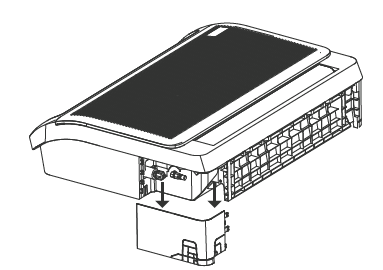

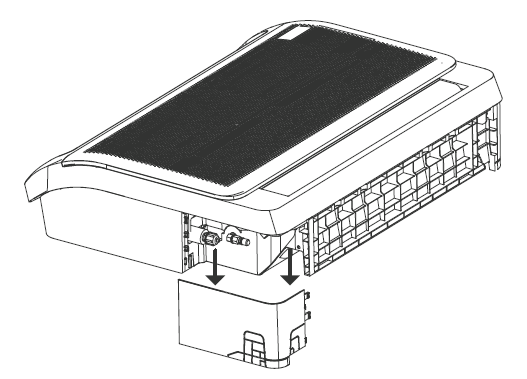

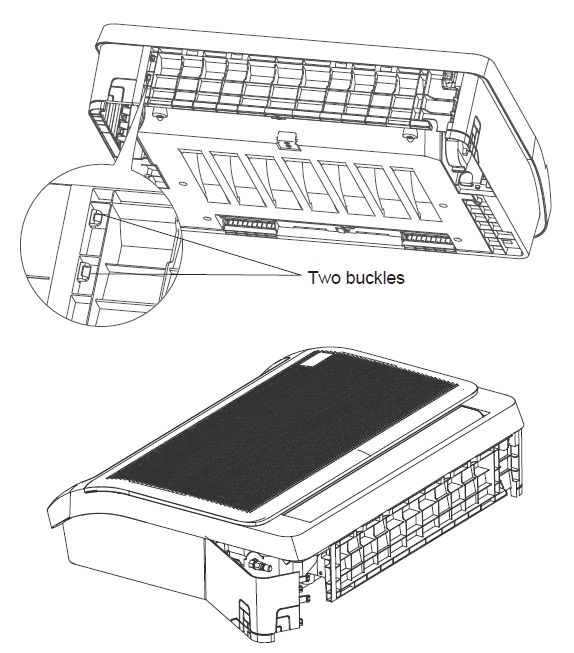

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to disassemble the indoor unit to connect the pipes for <a href="https://www.pioneerminisplit.com/collections/types?q=FYB-24" target="_blank" rel="noopener noreferrer">FYB-24 floor/low-wall mounted systems</a>.&#xA0;</p><h2 id="notes"><u>Notes</u></h2><ul><li style="font-size: 16px;">Install the small-size piping first, then the large-size piping.&#xA0;</li><li style="font-size: 16px;">All figures are for demonstration purposes only. The air conditioner you purchased may differ slightly in design, though the shape remain similar.&#xA0;</li></ul><h2 id="steps"><u>Steps</u></h2><p>1. Open the bottom piping cover plate.&#xA0;</p><p>Press and hold the bottom two buckles, then rotate to open the piping cover plate.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026051320-b7ebf470-c019-4784-90b4-71f6845b91db-fyb24_idu_installation_step3_two_buckles.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p><p>2. Remove the cover plate.&#xA0;</p><p>Remove the pipe cover plate and install the internal and external connecting pipes.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026051320-cc057ea0-d23f-4cb3-920d-4f255f1c6935-fyb24_idu_installation_step3_cover_plate.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p>

This article explains how to disassemble the indoor unit to connect the pipes for FYB-24 floor/low-wall mounted systems.

Disassemble the Indoor Unit to Connect the Pipes for FYB-24 Floor/Low-Wall Mounted Systems
