Understand the Ceiling Structure Mounting Methods for CYT-24 Eight-Way Ceiling Cassette Indoor UnitsUpdated 2 hours ago

Introduction

This article explains the different ceiling structure mounting methods available for Quantum Ultra Eight-Way Ceiling Cassette (CYT-24) indoor units.

Mounting Methods

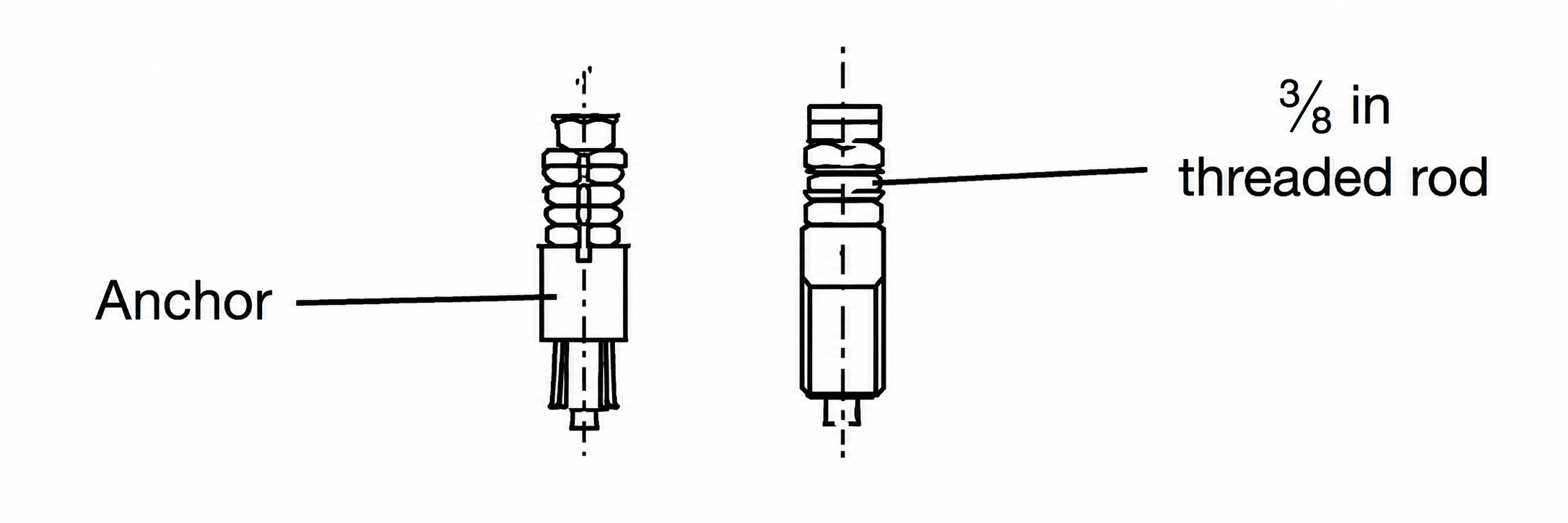

Finished Concrete (Brick or Slab)

Secure the hanging bolts directly into the concrete using expansion bolts. Drill to a depth of 1-3/4 - 2 inches (45-51 mm) to ensure secure anchoring.

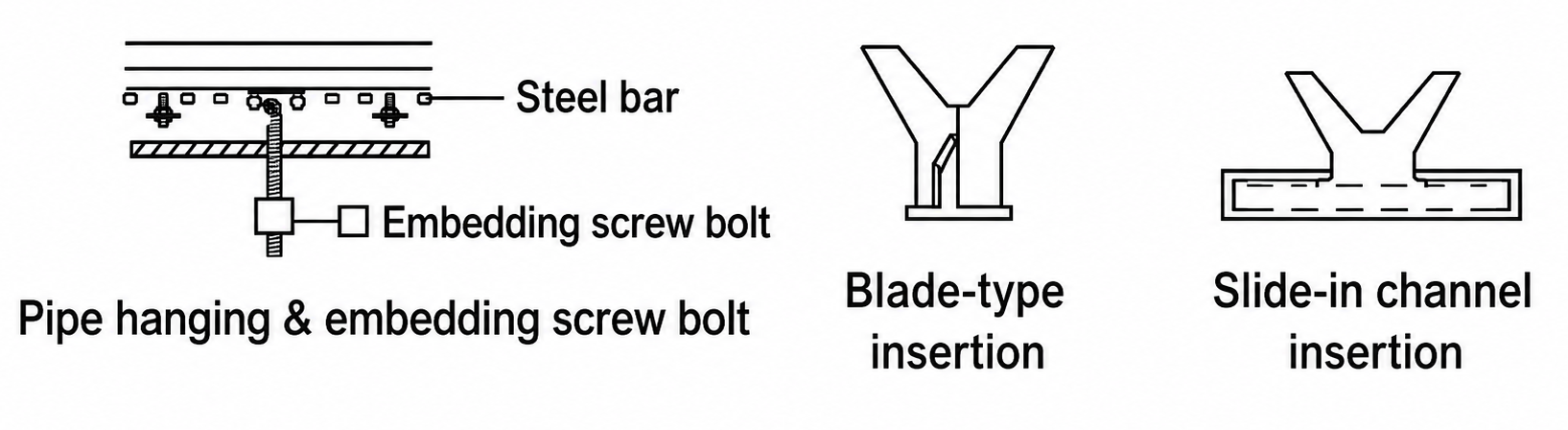

New Concrete Bricks

Use one of the following methods to embed the screw bolts:

• Blade-type insertion
• Slide-in channel insertion

Anchor the screw bolts firmly into the embedded steel reinforcement bars.

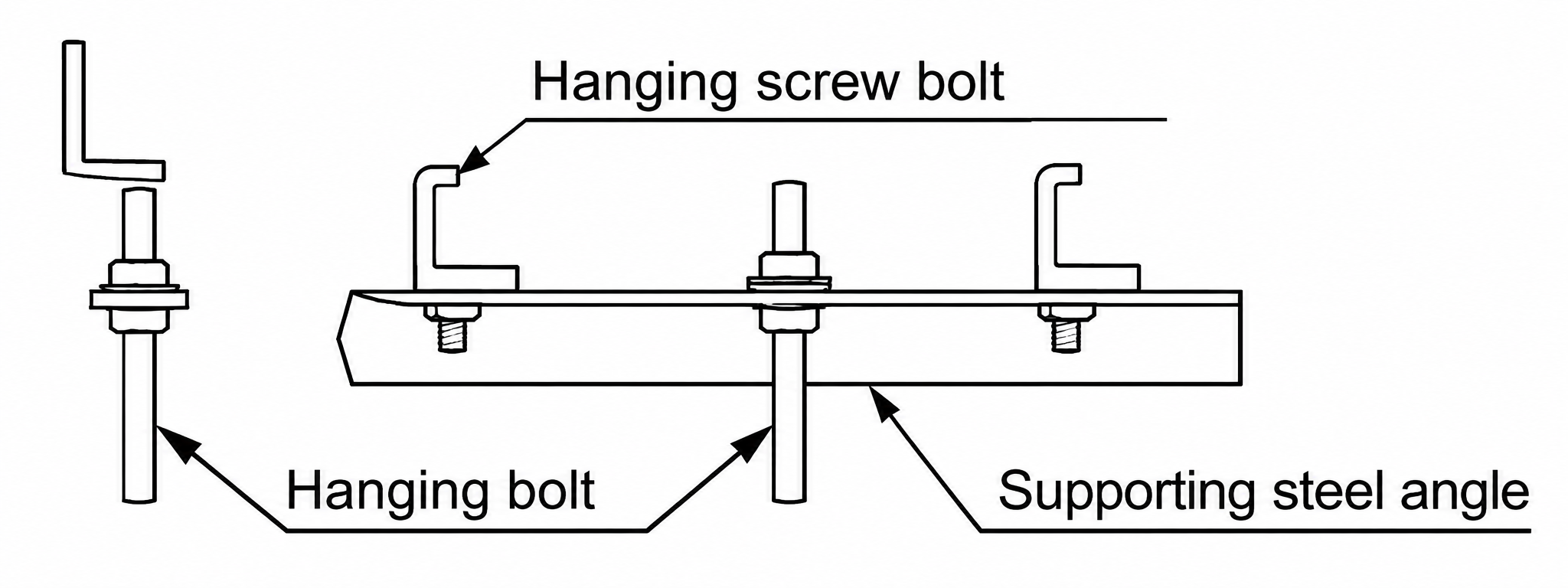

Steel Roof Beam Structure

Install the supporting steel angle brackets. Insert the hanging bolts through the brackets and secure them

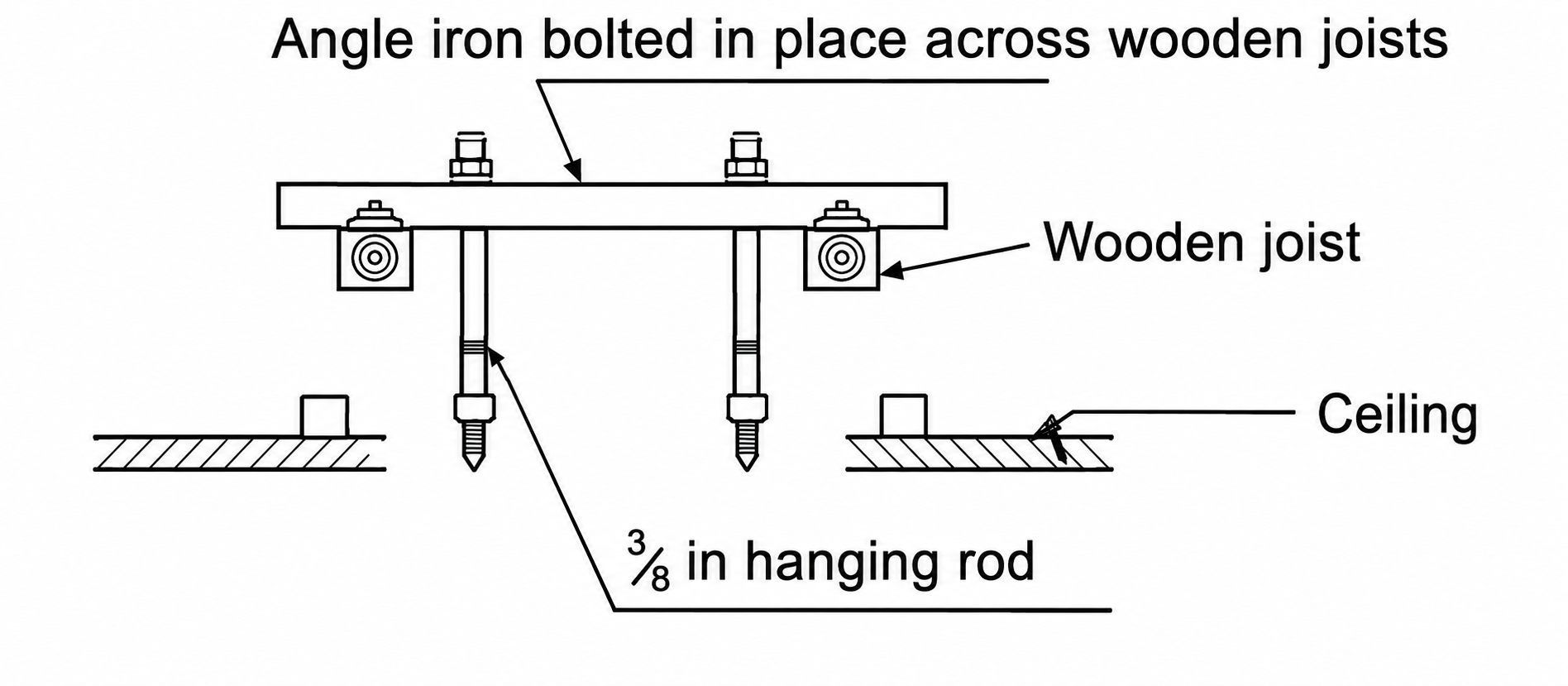

Wooden Construction

Secure the angle iron across the wooden joints, then attach the hanging bolts through the channel and into the ceiling structure.
