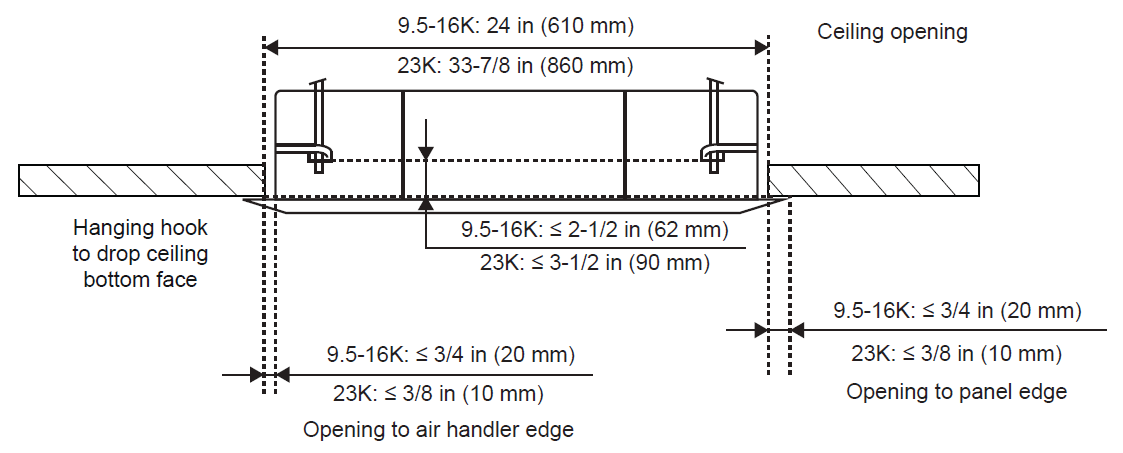

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to install the hanging bolts for <a href="https://www.pioneerminisplit.com/collections/types?q=CYT-24" target="_blank" rel="noopener noreferrer" id="isPasted">Quantum Ultra Eight-Way Ceiling Cassette (CYT-24)</a> indoor units.</p><h2 id="steps"><u>Steps</u></h2><p>1. Set up the four field-provided 3/8-inch threaded hanging bolts according to this installation diagram and measurements.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026071516-5fc46c04-d0d6-4c92-94bb-0ca4ab1c8b0f-cyt24_hanging_bolt_installation.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></p><p>2. Ensure the center-to-center distance between the bolts matches the specifications for the unit size.&#xA0;</p>
