Install the Drain Joint for CYK-24 Single-Way Ceiling Cassette Outdoor UnitsUpdated a day ago

Introduction

This article explains how to install the drain joint for CYK-24 single-way ceiling cassette outdoor units.

Before anchoring the outdoor unit, install the drain joint at the bottom of the unit. When mounting the outdoor unit on slabs, the installation of the drain joint and tubing is not necessary.

Notes

In cold climates, make sure the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood into the unit.

Steps

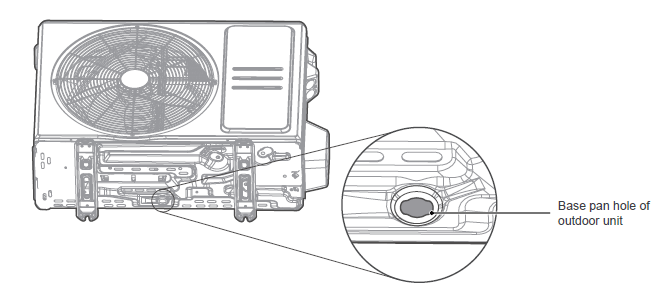

1. Find the outdoor unit's base pan hole.

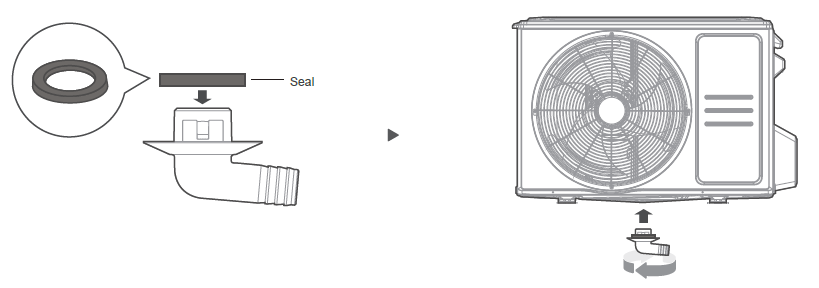

2. Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.

3. Insert the drain joint into the hole of the unit's base pan. The drain joint will click into place.

4. Connect a drain hose extension (not included) to the drain joint in order to redirect water from the unit during Heating mode.
