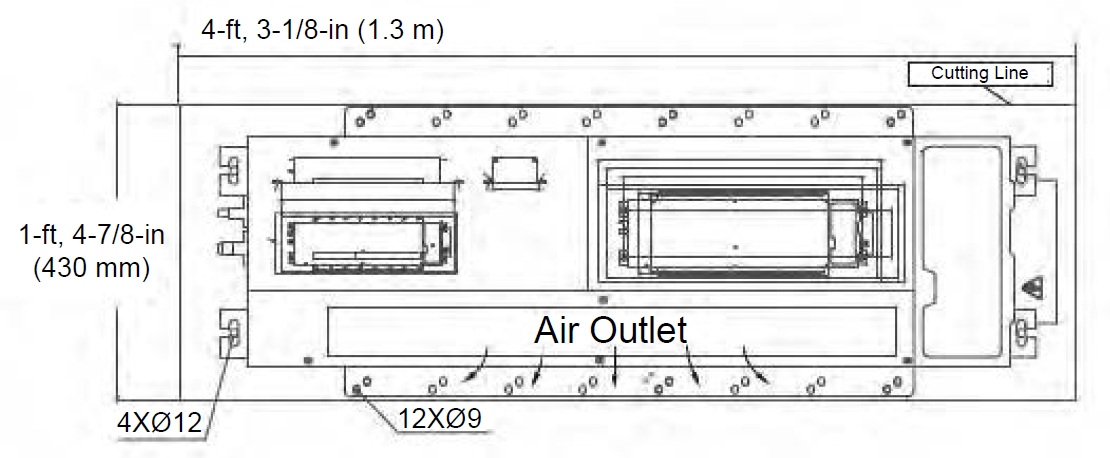

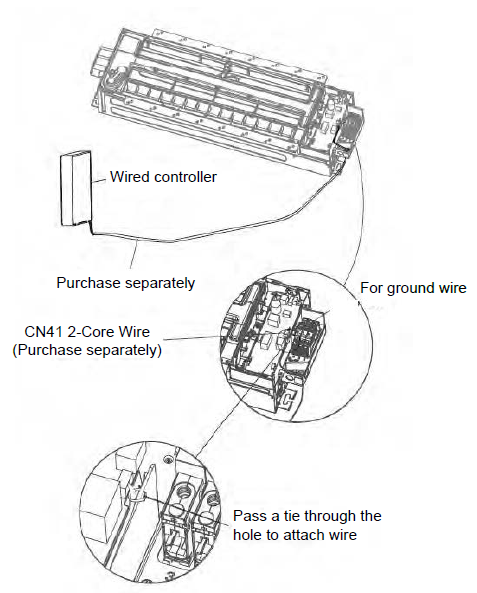

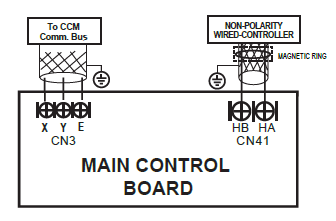

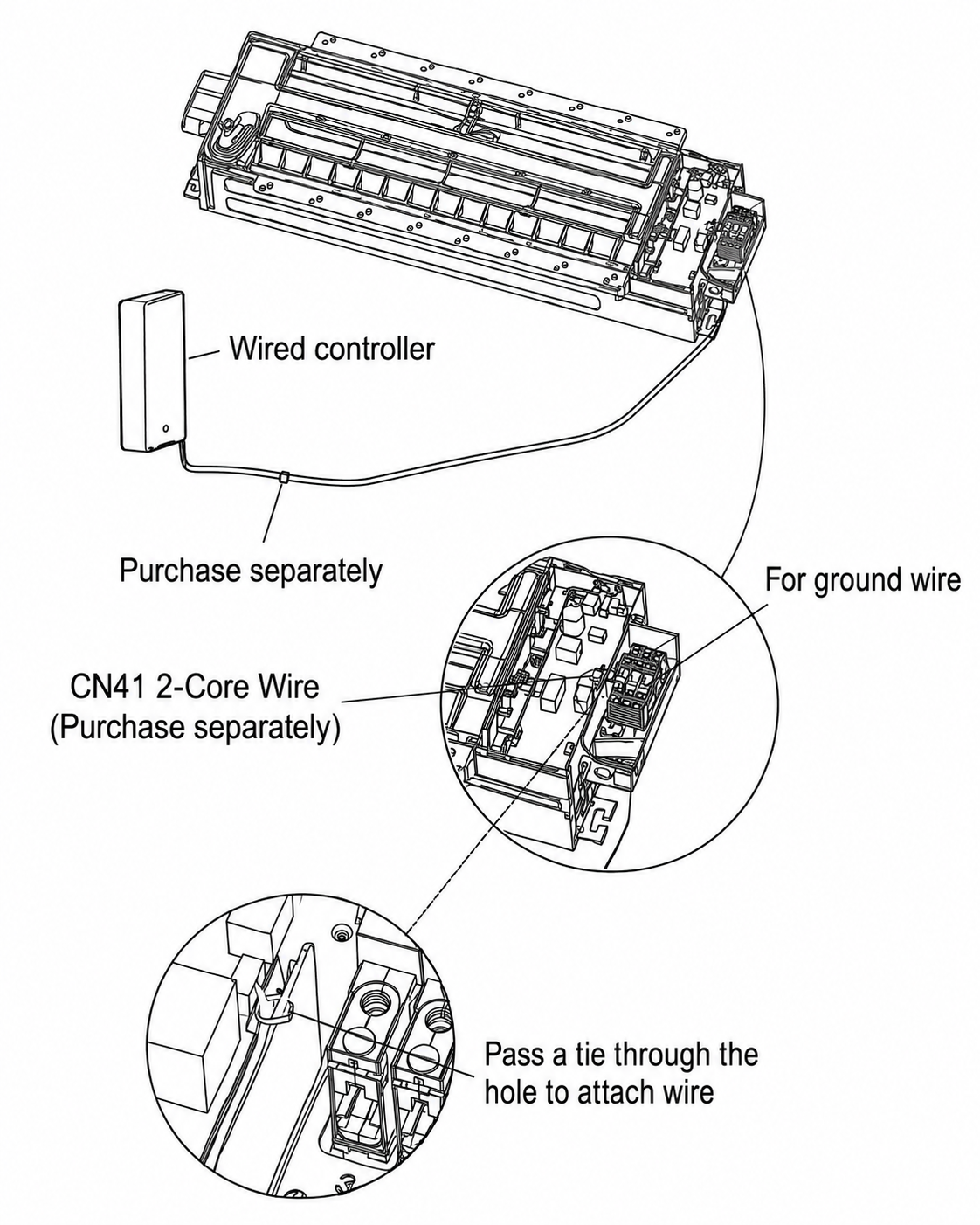

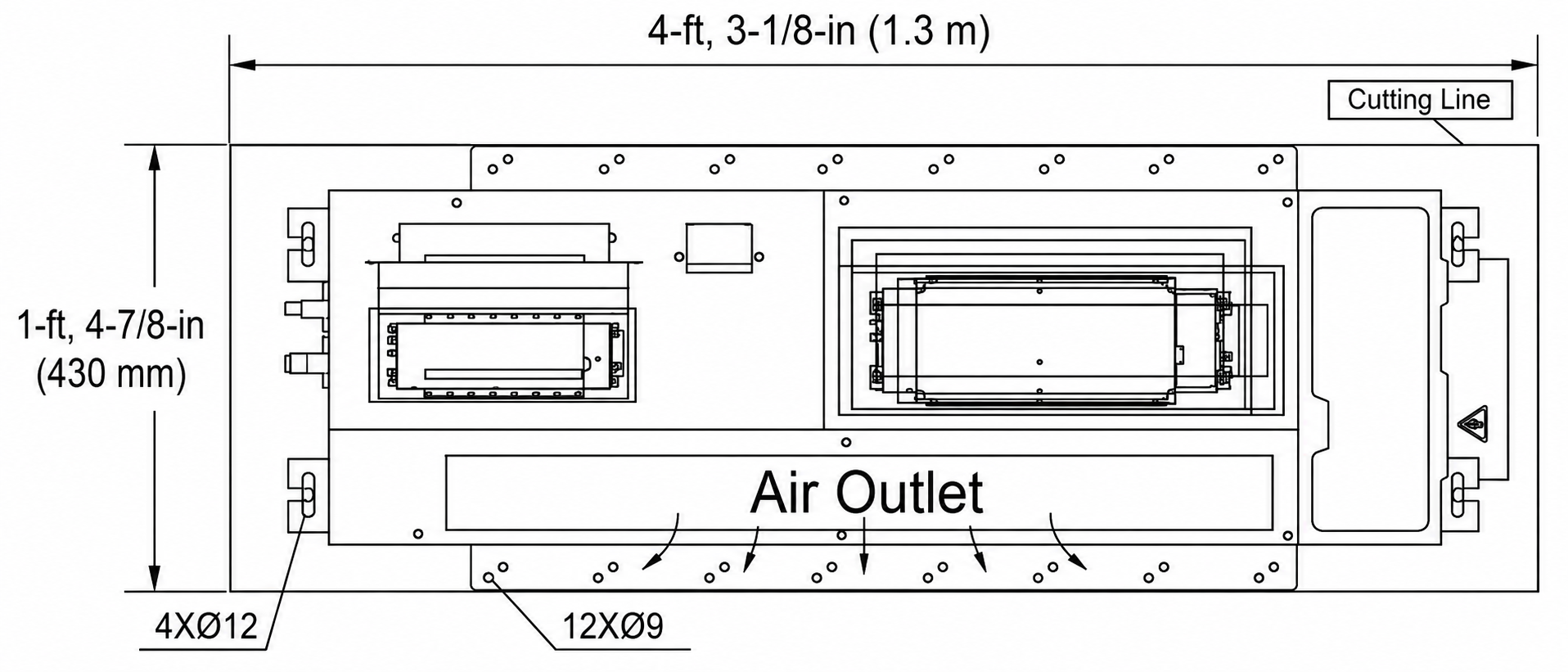

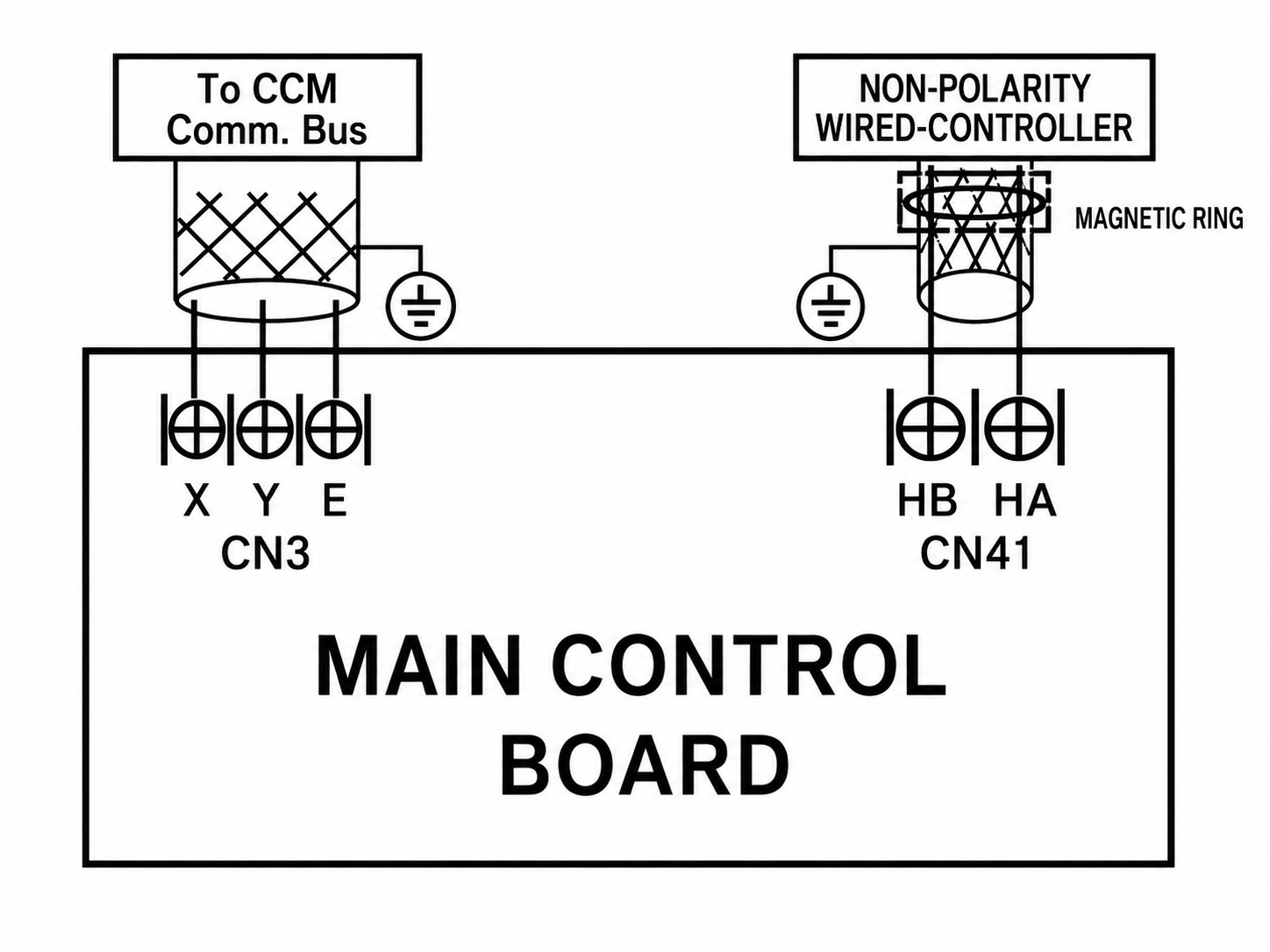

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to install the indoor air handler for <a href="https://www.pioneerminisplit.com/collections/types?q=CYK-24" target="_blank" rel="noopener noreferrer">CYK-24 single-way ceiling cassette systems</a>.&#xA0;</p><h2 id="warning"><u>Warning</u></h2><p>Follow the local regulations and take measures to isolate high and low voltages.</p><h2 id="notes"><u>Notes</u></h2><ul><li style="font-size: 16px;">After installing the main body, determine the piping direction. Align the refrigerant pipes, drainpipes, and wiring with their connection points before mounting the unit.&#xA0;</li><li style="font-size: 16px;">Ensure enough wire length is reserved for periodic maintenance. If the shielded wire has a connection lug, ensure it is properly grounded.&#xA0;</li></ul><h2 id="steps"><u>Steps</u></h2><p>1. Drill a hole with a diameter of 1/4 inch (6 mm) or less into the roof beam, following the layout of the installation template. Once the hole is drilled, remove the template.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026051212-f1c0510a-4d69-480c-8630-f44099969e2a-cyk24_idu_installation_step2_1.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered"></p><p>2. Connect the wire from the control box.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026051212-dd640e15-07c2-41b3-bdab-8853704743c7-cyk24_idu_installation_step2_2.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p><p>3. Connect the other side of the cable to the wired controller.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026051212-bc798a11-b499-459f-b505-f7ff89711463-cyk24_idu_installation_step2_3.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p>
