Introduction

This article provides steps for disassembling the indoor unit of the Quantum Ultra - Ceiling Cassette (CYT-24) system.

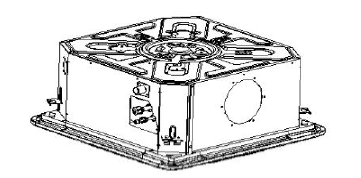

Before disassembly:

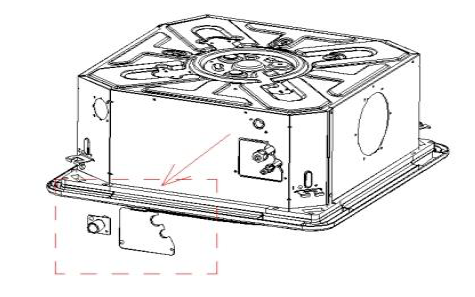

1. Remove the seal plate and drain spout.

A. Disassemble the seal plate.

B. Remove the drain spout.

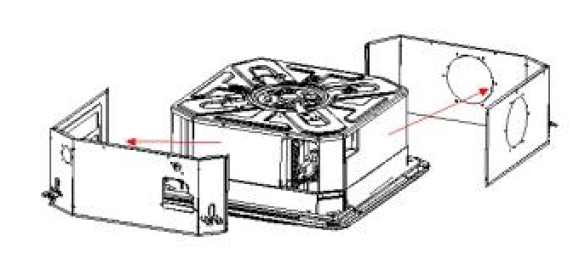

2. Remove the front and rear fascia assembly.

A. Unfix the screws and hooks on the base plate, as well as the front and rear panel assembly.

B. Remove the front and rear fascia assembly from the unit.

3. Dismantle the base assembly.

A. Remove the chassis components by unfixing the screws between the base foam part, evaporator fix plate, and base assembly.

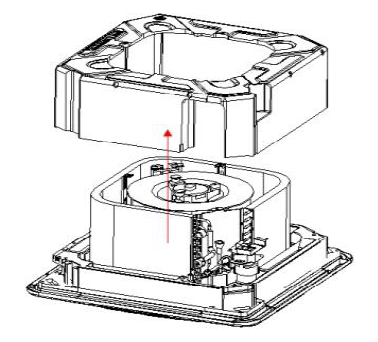

4. Remove the base foam assembly.

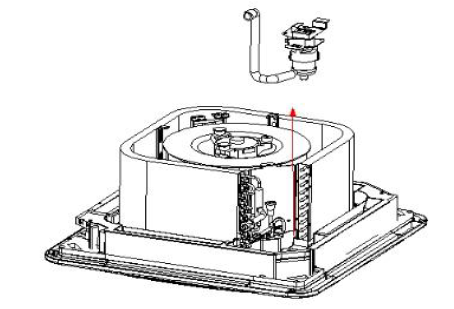

5. Dismantle the water pump assembly.

A. Dismantle the water pump assembly. Take out the water pump in the same direction shown in the photo.

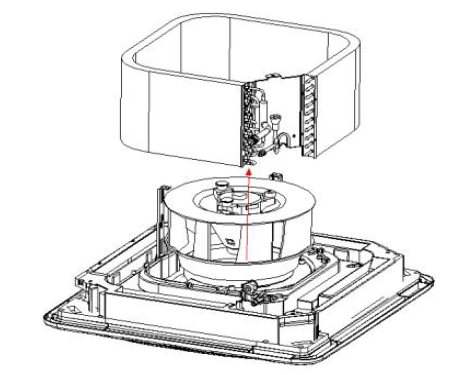

6. Dismantle the evaporator assembly.

A. Dismantle the evaporator assembly. Take out the evaporator in the same direction shown in the photo.

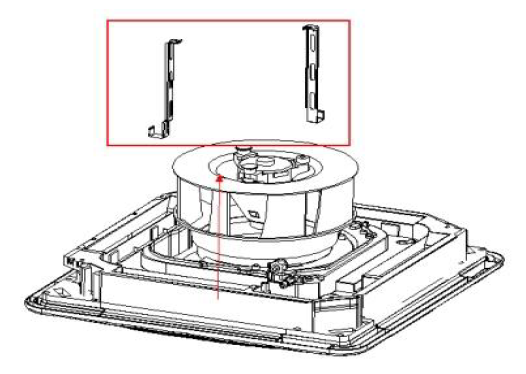

7. Remove the evaporator fixing plates.

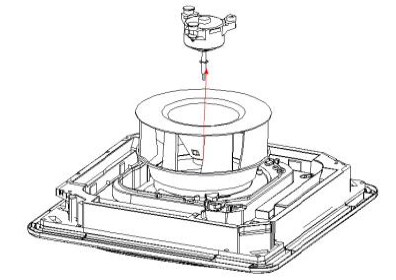

8. Disassemble the DC motor.

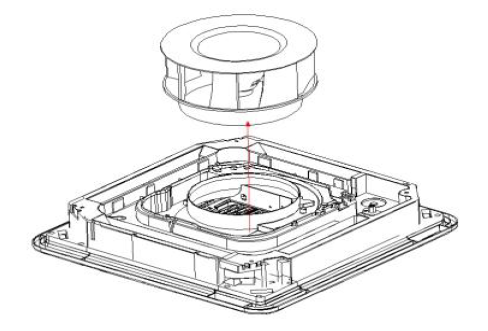

9. Remove the centrifugal fan.

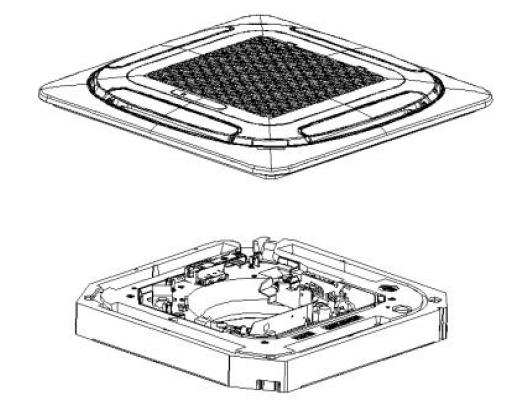

10. Remove the panel assembly.

A. Unfix the screws on the panel and drainage assembly.

B. Remove the panel assembly.

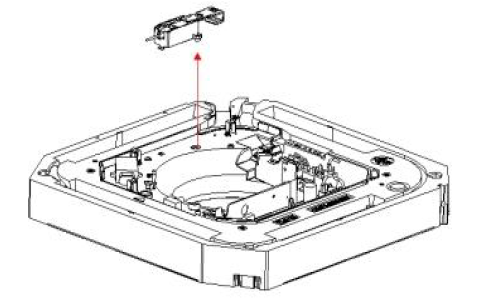

11. Remove the USB/Wi-Fi module.

A. Unfix the screws on the USB/Wi-Fi module and air guide part.

B. Remove the module.

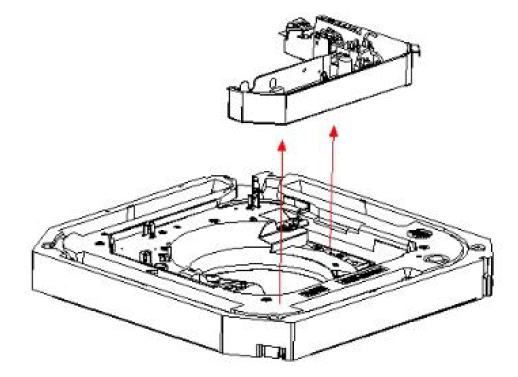

12. Remove the electric box assembly.

A. Unfix the screws on the electric control box, water tray assembly, and air guide in the direction shown in the photo.

B. Remove the electric control box assembly.

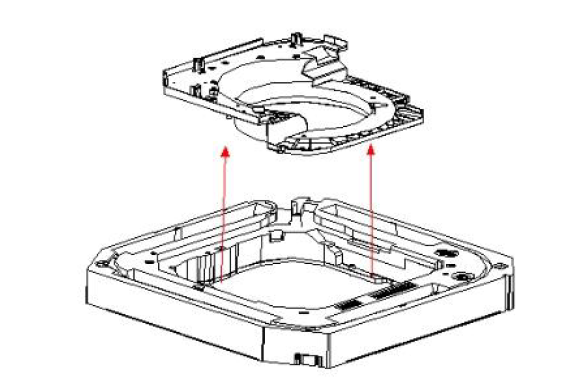

13. Disassemble the air guide parts.

A. Unfix the screws on the air guide parts and water tray.

B. Remove the air guide parts.
