<p id="isPasted">This article provides the dimensions and weights for <a href="https://www.pioneerminisplit.com/collections/types?q=FYB-24" target="_blank" rel="noopener noreferrer">Quantum Ultra Floor/Low-Wall Mounted Console (FYB-24)</a> systems.</p><h2 id="full-system-model-numbers"><u>Full System Model Numbers</u></h2><ul><li>FYB012GMSI24RL</li><li>FYB018GMSI24RL</li></ul><h2 id="indoor-units"><u>Indoor Units<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026070913-c726469f-856d-4237-976b-222d1a032a1d-fyb24_dimension_drawing_2.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></u></h2><table style="width: 100%;"><tbody><tr><td style="width: 99.5608%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick" colspan="4"><strong id="isPasted">Indoor Units</strong></td></tr><tr><td style="width: 20.6964%; background-color: rgb(239, 239, 239); text-align: center;" rowspan="2" class="fr-thick"><strong>Models</strong></td><td style="width: 79.1591%; background-color: rgb(239, 239, 239); text-align: center;" colspan="3" class="fr-thick"><strong>Dimensions</strong></td></tr><tr><td style="width: 25.8354%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Width</strong></td><td style="width: 28.4524%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Depth</strong></td><td style="width: 24.8713%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Height</strong><br></td></tr><tr><td style="width: 20.6964%; text-align: center;" rowspan="2" class="fr-thick"><strong>FB012GMSILDFHG<br>FB018GMSILDFHG</strong><br></td><td style="width: 25.8354%; text-align: center;" class="fr-thick">31-1/4 in</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">7-7/8 in<br></td><td style="width: 24.8713%; text-align: center;" class="fr-thick">24-1/2 in</td></tr><tr><td style="width: 25.8354%; text-align: center;" class="fr-thick">794 mm</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">200 mm<br></td><td style="width: 24.8713%; text-align: center;" class="fr-thick">622 mm</td></tr></tbody></table><p><br></p><table style="width: 100%;"><tbody><tr><td style="width: 99.7072%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick" colspan="3"><strong id="isPasted">Indoor Units</strong><br></td></tr><tr><td style="width: 33.237%; text-align: center; background-color: rgb(239, 239, 239);" rowspan="2" class="fr-thick"><strong>Models</strong></td><td style="width: 66.474%; text-align: center; background-color: rgb(239, 239, 239);" colspan="2" class="fr-thick"><strong>Weights</strong></td></tr><tr><td style="width: 33.3333%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick"><strong>Net Unit</strong></td><td style="width: 33.3333%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick"><strong>Shipping</strong></td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick" rowspan="2"><strong id="isPasted">FB012GMSILDFHG<br>FB018GMSILDFHG</strong><br></td><td style="width: 33.3333%; text-align: center;" class="fr-thick">32.9 lbs</td><td style="width: 33.3333%; text-align: center;" class="fr-thick">41.9 lbs</td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick">14.9 kg</td><td style="width: 33.3333%; text-align: center;" class="fr-thick">19 kg</td></tr></tbody></table><p><br></p><h2 id="outdoor-units"><u>Outdoor Units</u></h2><h2 id><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026070913-fcb8ecd8-535b-4d95-a0d0-dc49d41d9424-cyb20_odu_dimensions.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></h2><table style="width: 100%;"><tbody><tr><td style="width: 99.5608%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick" colspan="4"><strong>Outdoor Units</strong><br></td></tr><tr><td style="width: 20.5925%; background-color: rgb(239, 239, 239); text-align: center;" rowspan="2" class="fr-thick"><strong>Models</strong></td><td style="width: 79.263%; background-color: rgb(239, 239, 239); text-align: center;" colspan="3" class="fr-thick"><strong>Dimensions</strong></td></tr><tr><td style="width: 26.0838%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Width</strong></td><td style="width: 28.4524%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Depth</strong></td><td style="width: 24.8713%; background-color: rgb(239, 239, 239); text-align: center;" class="fr-thick"><strong>Height</strong><br></td></tr><tr><td style="width: 20.5925%; text-align: center;" rowspan="2" class="fr-thick"><strong>YN012GMSI24RPG</strong><br></td><td style="width: 26.0838%; text-align: center;" class="fr-thick">30-1/8 in</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">12 in</td><td style="width: 24.8713%; text-align: center;" class="fr-thick">21-7/8 in</td></tr><tr><td style="width: 26.0838%; text-align: center;" class="fr-thick">765 mm</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">305 mm</td><td style="width: 24.8713%; text-align: center;" class="fr-thick">556 mm</td></tr><tr><td style="width: 20.5202%; text-align: center;" rowspan="2" class="fr-thick"><strong>YN018GMSI24RPG</strong><br></td><td style="width: 26.0838%; text-align: center;" class="fr-thick">35 in</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">13-1/2 in</td><td style="width: 24.8713%; text-align: center;" class="fr-thick">26-1/2 in</td></tr><tr><td style="width: 26.0838%; text-align: center;" class="fr-thick">889 mm</td><td style="width: 28.4524%; text-align: center;" class="fr-thick">343 mm</td><td style="width: 24.8713%; text-align: center;" class="fr-thick">673 mm</td></tr></tbody></table><p><br></p><table style="width: 100%;"><tbody><tr><td style="width: 99.7072%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick" colspan="3"><strong id="isPasted">Outdoor Units</strong></td></tr><tr><td style="width: 33.237%; text-align: center; background-color: rgb(239, 239, 239);" rowspan="2" class="fr-thick"><strong>Models</strong></td><td style="width: 66.474%; text-align: center; background-color: rgb(239, 239, 239);" colspan="2" class="fr-thick"><strong>Weights</strong></td></tr><tr><td style="width: 33.3333%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick"><strong>Net Unit</strong></td><td style="width: 33.3333%; text-align: center; background-color: rgb(239, 239, 239);" class="fr-thick"><strong>Shipping</strong></td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick" rowspan="2"><strong id="isPasted">YN012GMSI24RPG</strong><br></td><td style="width: 33.3333%; text-align: center;" class="fr-thick">62.1 lbs</td><td style="width: 33.3333%; text-align: center;" class="fr-thick">67.7 lbs</td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick">28.2 kg</td><td style="width: 33.3333%; text-align: center;" class="fr-thick">30.7 kg</td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick" rowspan="2"><strong id="isPasted">YN018GMSI24RPG</strong><br></td><td style="width: 33.3333%; text-align: center;" class="fr-thick">92.6 lbs</td><td style="width: 33.3333%; text-align: center;" class="fr-thick">100.3 lbs</td></tr><tr><td style="width: 33.3333%; text-align: center;" class="fr-thick ">42.0 kg</td><td style="width: 33.3333%; text-align: center;" class="fr-thick ">45.5 kg</td></tr></tbody></table>

This article provides the dimensions and weights for Quantum Ultra Floor/Low-Wall Mounted Console systems.

Dimensions & Weights for Quantum Ultra Floor/Low-Wall Mounted Console (FYB-24) Systems

Product Data & Technical Information

Dimensions & Clearances

Ductless & Ducted Systems

Pioneer Offers Hyper-Heat Units

Pioneer Systems Offer Both Heating & Cooling Functions

Understand the Difference Between 115V & 230V Systems

Understand the Refrigerants Used for Each Model

How to Choose a System

Mini Splits are Capable of Using Fewer Indoor Units than the Outdoor Unit’s Zonal Capacity

Pioneer Mini Splits Function as Dehumidifiers

Pioneer Offers Different Lineset Lengths

Pioneer Offers Pre-Charged Linesets

Pioneer Offers Pre-Flared Linesets

Pioneer Systems Include Factory Pre-Charged Refrigerant

Single-Zone Mini Splits Cannot be Used with Multiple Indoor Units

Understand the Allowable Zone Combinations for Multi-Zone Systems

Understand how Mini Splits are Powered

Understand the Life Expectancy of Pioneer Systems

Understand the Meaning of “Multi-Zone”

Mini-Split Basics

Determine the Unit Size Needed for Your Space

Match the Lineset Diameter to Your Pioneer Indoor Unit

Understand Why Short Cycling Occurs When Sizing Systems

Sizing & Efficiency Guide

Start Here

Understand the Differences Between Inverter+ & Inverter++ Systems

Understand the Differences Between the Wall-Mounted Ductless Mini Splits

Understand Which Units are Rated Energy-Star

Compare Models

Learn About the Discounts Available

Learn About the Energy-Star Tax Credits Available for Pioneer Systems

Learn More about IRA Tax Credits

Learn Why Your Pioneer Discount Code Only Says "SAMPLE"

Redeem Your Pioneer Rewards Points When Shopping Online

Understand How to Manage Multiple Credit Card Charges with Pioneer

Financing & Payment

Learn About Our Shipping & Delivery Details

Understand the Qualifications for Free Shipping

Order Status & Shipping

Diamante Essenza High-Wall (WYT-17) Overview

Diamante Pro High-Wall (WYT-20) Overview

Quantum Fresh High-Wall (WYT-FA) Overview

Quantum Hyperformance High-Wall (WYT-25) Overview

Quantum Ultra 4-Way Ceiling Cassette (CYB-20) Overview

Quantum Ultra 8-Way Ceiling Cassette (CYT-24) Overview

Quantum Ultra Ducted Ceiling Concealed (RYB-20) Overview

Quantum Ultra Ducted Ceiling Concealed (RYT-24) Overview

Quantum Ultra Floor-Ceiling Flex (UYB-20) Overview

Quantum Ultra Floor-Ceiling Flex (UYT-24) Overview

Quantum Ultra Floor/Low-Wall Mounted Console (FYB-20) Overview

Quantum Ultra High-Wall (WYT-24) Overview

Quantum Ultra Multi-Zone Overview

Quantum Ultra Single-Way Ceiling Cassette (CYK-24) Overview

Vertex Ducted Central Split (DYC-18) Overview

Ducted & Ductless Systems

ECOasis 50 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV) Overview

ECOasis 150 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV) Overview

Energy Recovery Ventilators

QHD070 Whole-House Ducted Dehumidifier (QHD) Overview

High Performance Dehumidifier

Full Inverter Rooftop RV Air Conditioner Heat Pump (PYZ) Overview

Under-Bench RV Inverter Packaged Heat Pump Air Conditioner (PYR) Overview

Recreational Vehicle Systems

Product Line Overviews

Find Out How to Complete Returns

Figure Out How to Start Your Return

Learn About Our Policy for Undeliverable or Refused Shipments

Learn About Our Return Policy

Understand How to Return an Item

Understand the Eligibility Requirements for Refunds

Understand Our Return Fees

Understand Our Return Process

Returns & Refunds

Shopping & Pre-Purchase

Find Out if Our Systems Support Self-Installation

Locate an Installer for Your System

Understand the Cost & Time Spent on Installing Systems

First-Time Installations

Can Wall-Mounted Indoor Units Be Installed Onto the Ceiling Instead?

Does the Indoor Unit Need Additional Hardware for Wall Mounting?

Lineset Installation FAQ

What are the Drilling Requirements to Install Drain & Refrigerant Lines?

What are the Requirements for Installing Wall-Mounted Systems?

What is the Difference Between the 6-foot Plastic Whip & 4-Lead Wire?

What is the Ideal Height for Mounting Indoor Units?

What is the Standard Wire Gauge Needed for Connections?

General Installation FAQ

Conduct Drainage Tests for 4- & 8-Way Ceiling Cassette Systems

Conduct Drainage Tests for Ducted Ceiling Concealed Systems

Conduct Drainage Tests for Floor/Low-Wall Mounted Systems

Conduct Drainage Tests for Single-Way Ceiling Cassette Systems

Conduct Drainage Tests for Wall-Mounted Systems

Connect the Refrigerant Piping

Conduct Test Runs

Evacuate the Refrigerant Circuit

Installation Basics

Ceiling Cassettes

Ducted Ceiling Concealed

Ducted Central Split

Floor-Ceiling Flex-Mounted Consoles

Floor/Low-Wall Mounted Consoles

Wall-Mounted Units

Indoor Units

Install Outdoor Units: Getting Started

Select the Installation Location for Outdoor Units

Install the Drain Joint for Outdoor Units

Mount the Outdoor Unit

Install the Condensate Drain Hose for Outdoor Units

Outdoor Units

Install ECOasis 50 Energy Recovery Ventilators

Install ECOasis 150 Energy Recover Ventilators

Energy Recovery Ventilator

Connect the Drain Fitting for QHD070 Whole-House Ducted Dehumidifiers

High Performance Dehumidifiers

Install Rooftop RV Systems: Getting Started

Create the Roof Opening for Rooftop RV Systems

Install the Air Duct & Top Mounting Plate for Rooftop RV Systems

Mount the Panel for Rooftop RV Systems

Place the Unit onto the Roof for Rooftop RV Systems

Setup the Electrical Wiring for Rooftop RV Systems

Setup the System Connections for Rooftop RV Systems

Understand the Installation Requirements for Rooftop RV Systems

Rooftop RV Inverter

Install Under-Bench RV Systems: Getting Started

Connect & Power Up Under-Bench RV Systems

Create the Floor Openings for Under-Bench RV Systems

Create the Recirculation Air Opening for Under-Bench RV Systems

Fasten the Under-Bench RV System into Place

Install the Wall Thermostat for Under-Bench RV Systems

Understand the Ductwork Best Practices for Under-Bench RV Systems

Understand the Installation Requirements for Under-Bench RV Systems

Under-Bench RV Inverter

Installation

Understand the DIP Switches for Vertex Ducted Central Split Systems

DIP Switch Layouts

Turn the LED Display On or Off

Understand the Display Board for Ducted Ceiling Concealed Systems

Understand the Display Panel for Rooftop RV Systems

Understand the Front Panel Displays for Ceiling Cassette Systems

Understand the Front Panel Display for Floor-Ceiling Flex Systems

Understand the Front Panel Display for Wall-Mounted Systems

Understand the Master Unit Display for ECOasis 50 Energy Recovery Ventilators

Understand the Onboard Controller & Terminal Block Layout for QHD070 Whole-House Ducted Dehumidifiers

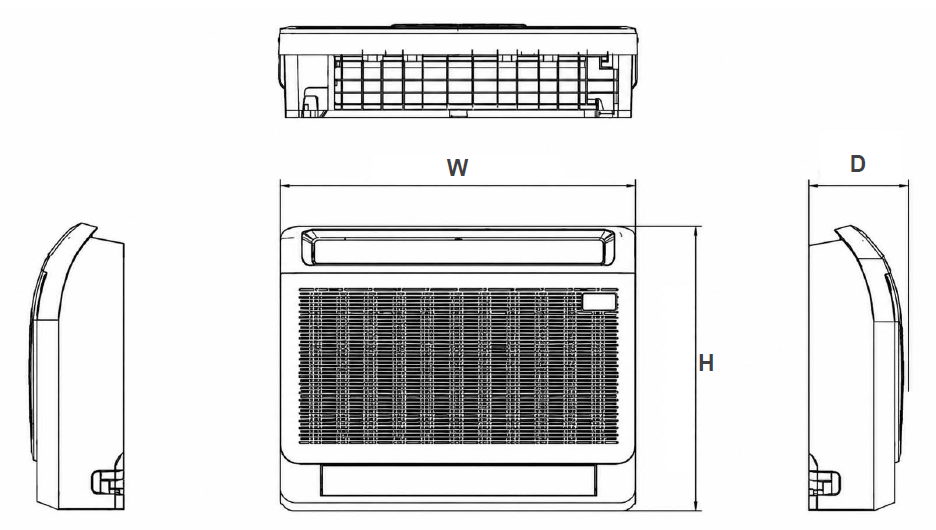

Indoor Units
Models	Dimensions
	Width	Depth	Height
FB012GMSILDFHG FB018GMSILDFHG	31-1/4 in	7-7/8 in	24-1/2 in
	794 mm	200 mm	622 mm

Indoor Units
Models	Weights
	Net Unit	Shipping
FB012GMSILDFHG FB018GMSILDFHG	32.9 lbs	41.9 lbs
	14.9 kg	19 kg

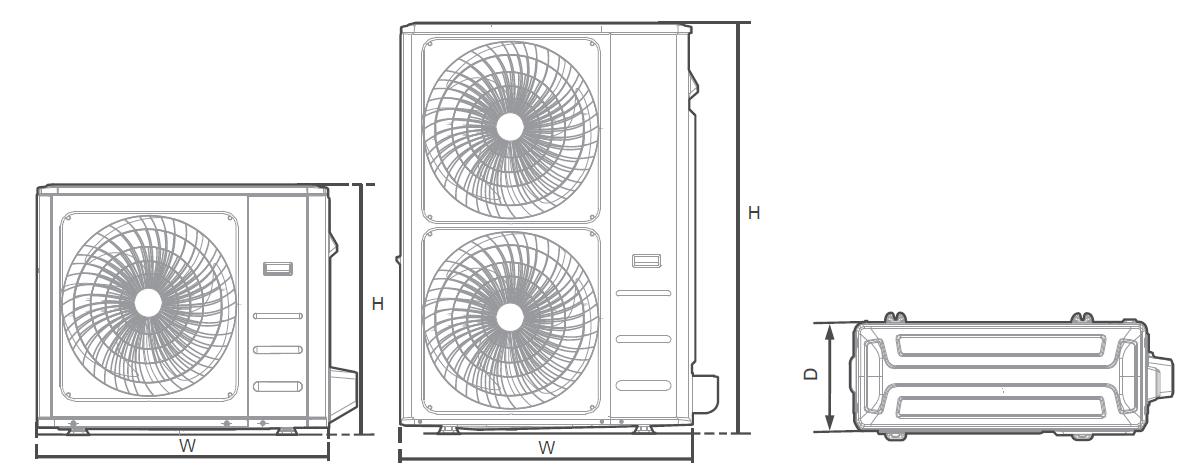

Outdoor Units
Models	Dimensions
Models	Width	Depth	Height
YN012GMSI24RPG	30-1/8 in	12 in	21-7/8 in
YN012GMSI24RPG	765 mm	305 mm	556 mm
YN018GMSI24RPG	35 in	13-1/2 in	26-1/2 in
YN018GMSI24RPG	889 mm	343 mm	673 mm

Outdoor Units
Models	Weights
	Net Unit	Shipping
YN012GMSI24RPG	62.1 lbs	67.7 lbs
	28.2 kg	30.7 kg
YN018GMSI24RPG	92.6 lbs	100.3 lbs
	42.0 kg	45.5 kg
