Introduction
The Quantum Ultra Floor/Low-Wall Mounted Console (FYB-24) system has an average 24-SEER2 rating, and is factor-precharged with environmentally-friendly R-454B refrigerant.

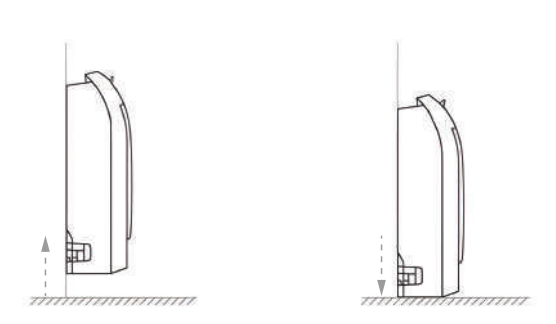

Mount Low on the Wall, or Flush to the Floor
This console can be installed standing on the floor, which can be great for aesthetics and accessibility, while also offering enhanced space-saving abilities. The console can also be fixed to the wall using a mounting plate, reducing dust and debris exposure. Fixing the console to the wall provides additional protection from potential obstructions.

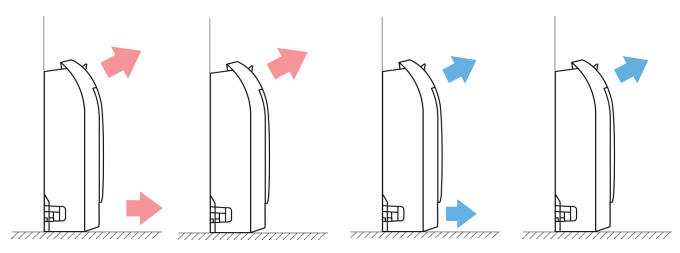

Dual Supply Outlets with Ultra Wide Airflow
This series allows you to fully configure the method of air delivery using the independent control of the output louvers. For quieter performance, set the system to delivery heating or cooling via only the top, or by using both outlets for enhanced coverage.

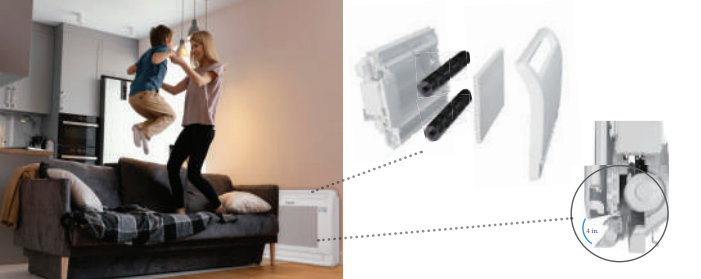

Supercharged Internal Components
The redesigned dual internal cross fans and widened lower outlet ensure low-noise operation, while maintaining strong output and high efficiency.

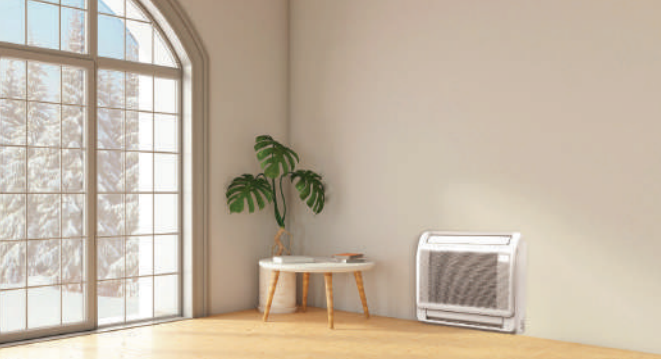

Modern & Elegant Appearance
With a simple and compact design, the floor-mounted console can blend in seamlessly with nearly any kind of living space.

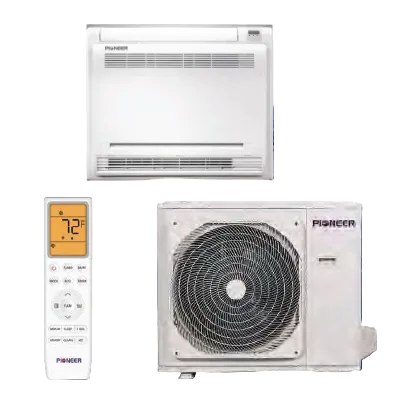

Full System Model Numbers
FYB012GMSI24RL and FYB018GMSI24RL
Indoor Units
FB012GMSILDFHG and FB018GMSILDFHG
Outdoor Units
YN012GMSI24RPG and YN018GMSI24RPG

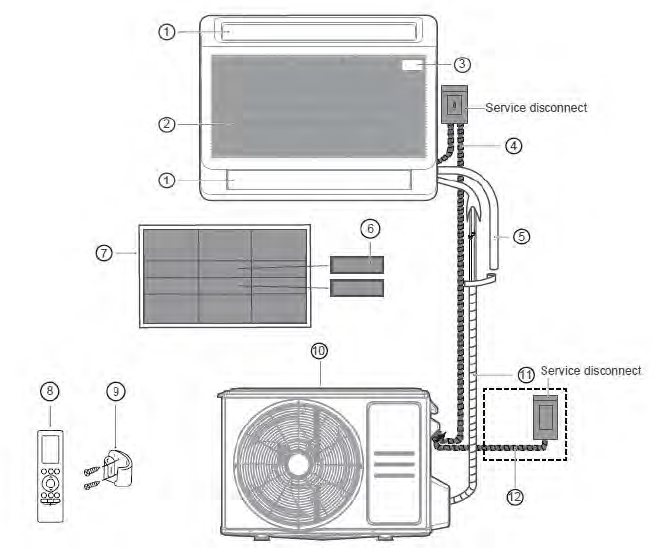

System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
| No. | Description |
| 1 | Air flow louver (air outlet) |
| 2 | Air inlet (with air filter in it) |
| 3 | Display panel |
| 4 | Connection cable (purchase separately) |
| 5 | Drainpipe (purchase separately) |
| 6 | Air freshening filter |
| 7 | Air filter |
| 8 | Remote controller |
| 9 | Remote controller holder (purchase separately) |
| 10 | Outdoor unit |
| 11 | Refrigerant piping (purchase separately) |
| 12 | Outdoor unit power cable (purchase separately) |
Note: Select a service disconnect meeting the requirements of the local, regional, and national codes.
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system. Items that are not included with the system must be purchased separately.
| Name of Accessories | Quantity | Shape |
| Manual | 3 |  |
| Copper nut | 2 |  |
| Air freshening filter | 2 |  |
| Remote controller | 1 |  |
| Remote controller handler (Purchase separately) | 1 |  |
| Battery | 2 |  |
| Heat insulation pipe | 1 |  |
| Drain joint | 1 |  |
| Seal ring | 1 |  |
