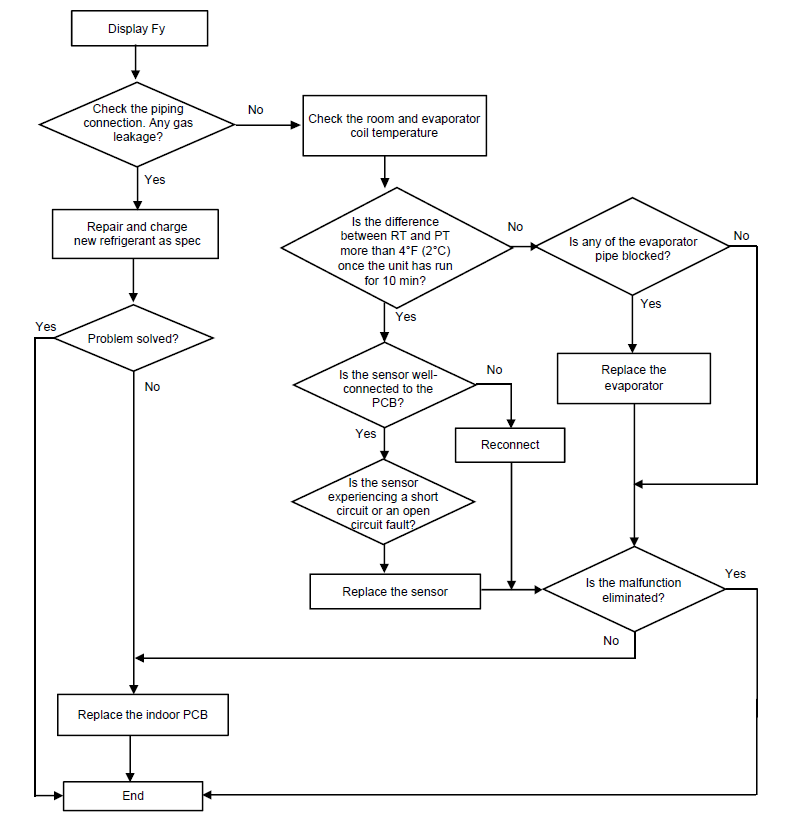

Fy Error Code: Refrigerant Deficiency ProtectionAfter the compressor has run at high frequency for 9 minutes, if the indoor and outdoor coil temperatures have changed very little from their earlier readings but the compressor discharge temperature stays high, the system displays error code &quot;Fy.&quot;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101316-804d2af9-69ce-42c8-a5ce-579962a30953-fy_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates the system is undergoing refrigerant deficiency protection.

Fy Error Code
