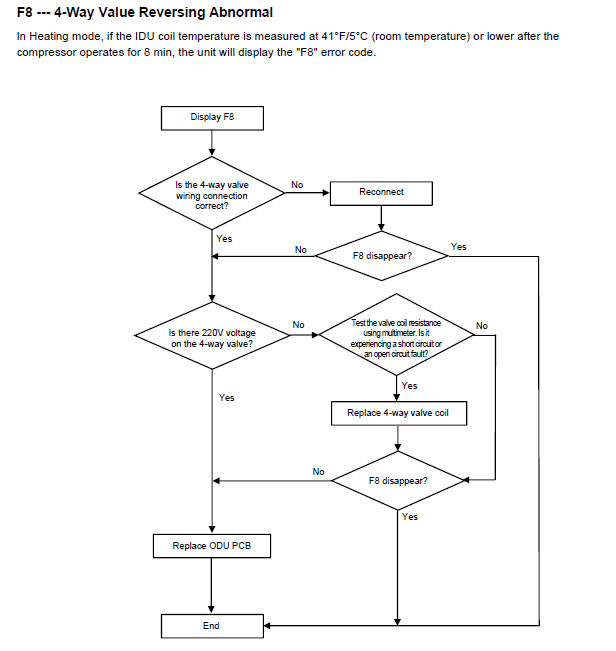

<h2 id="introduction"><u>Introduction</u></h2><p>The &quot;F8&quot; error code indicates the system&apos;s 4-way valve is reversing abnormally. The error code is for Diamante series systems.&#xA0;</p><h2 id="troubleshooting"><u>Troubleshooting</u></h2><p>In Heating mode, if the indoor unit&apos;s coil temperature is measured at 41&#xB0;F/5&#xB0;C (room temperature) or lower after the compressor operates for 8 minutes, the unit will display the error code.&#xA0;</p><h2 id="troubleshooting-diagram"><u>Troubleshooting Diagram</u></h2><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025111320-7733ce61-c026-475e-8cd9-0cf4454182b9-wyt17_f8_troubleshooting.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

This error code indicates the system's 4-way valve is reversing abnormally.

F8 error code

Troubleshooting

Troubleshooting (Diamante Series)
