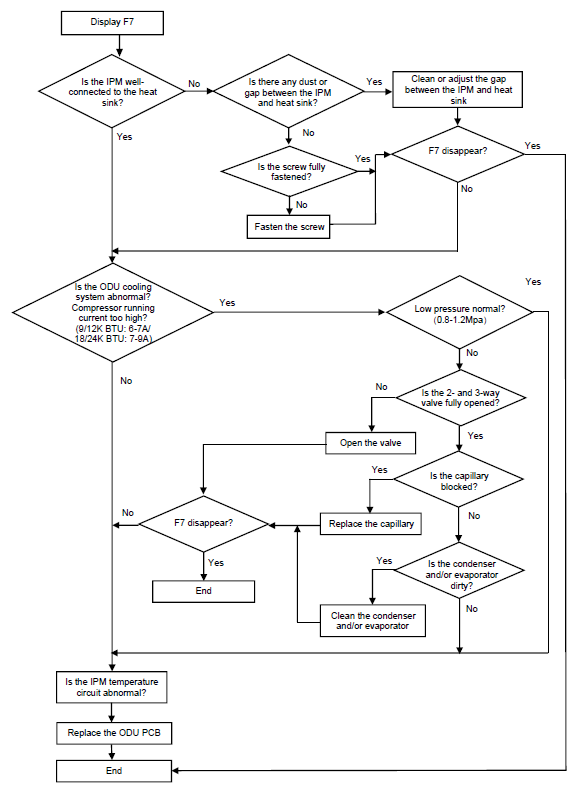

F7 Error Code: Outdoor Unit IPM Abnormal Temperature ProtectionIf the IPM temperature rises above 203&#xB0;F (95&#xB0;C), IPM overheat protection activates and the outdoor unit stops. The system displays error code &quot;F7.&quot;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101315-2e222994-e17a-46a1-a84c-2f15ac836de9-f7_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates the outdoor unit is undergoing IPM abnormal temperature protection.

F7 Error Code

Troubleshooting
