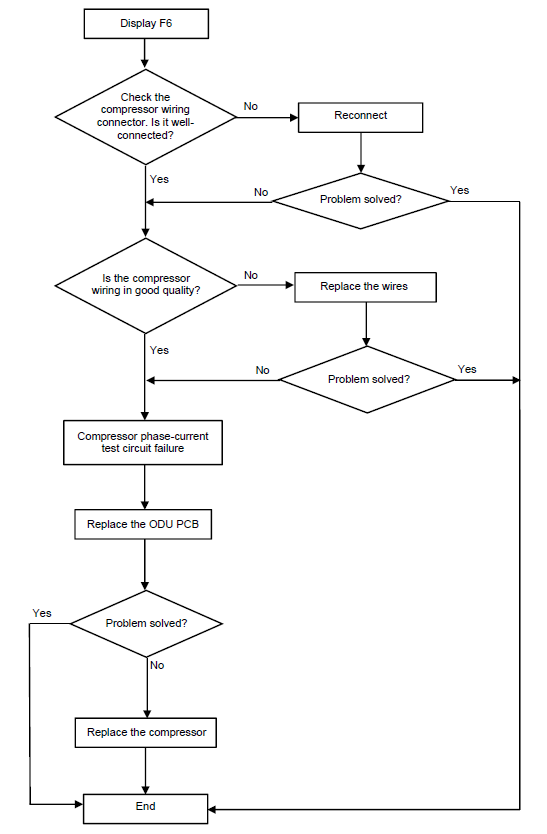

F6 Error Code: Compressor Phase Loss / Phase Reversal ProtectionIf the outdoor unit PCB cannot detect current in one or more phases of the compressor, the system activates phase loss protection, stops, and displays error code &quot;F6.&quot;Diamante wall-mounted systems have a different troubleshooting procedure for this error code than Quantum wall-mounted systems. For that procedure, read this <a href="https://help.pioneerminisplit.com/en-US/f6-error-code-diamante-3341644" target="_blank" rel="noopener noreferrer">article</a>.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101315-bbe7ef14-4c70-4f98-be22-b7b77eec2d21-f6_code_quantum.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates compressor phase loss or phase reversal protection for Quantum wall-mounted systems.

F6 Error Code
