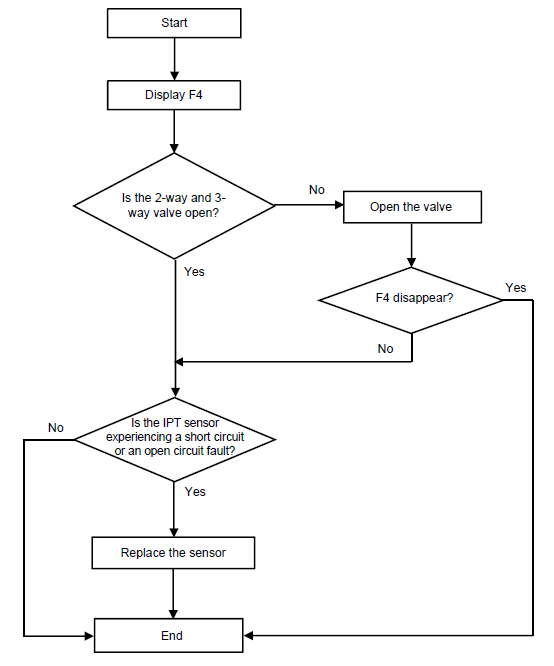

F4 Error Code: Abnormal Refrigerant Flow ProtectionWhen the compressor starts, the system monitors changes in the indoor coil temperature. If the 2-way or 3-way valve on the outdoor unit has not been opened during installation, refrigerant cannot flow through the system. The system then activates refrigerant flow protection, stops, and displays error code &quot;F4.&quot;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101314-7874b8ee-4744-47e9-aa33-0efcb4ca7446-f4_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered">

This code indicates the system is undergoing abnormal refrigerant flow protection.

F4 Error Code
