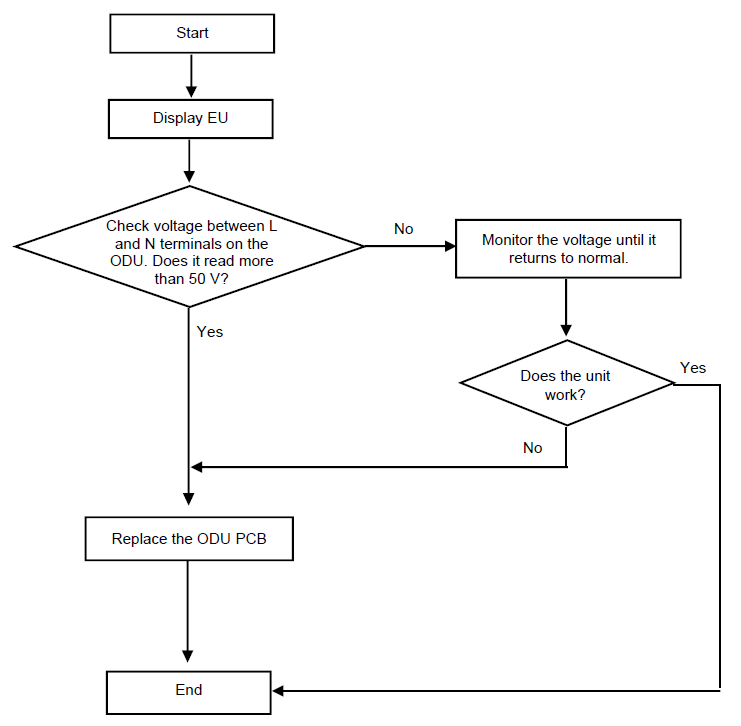

<p><strong>EU Error Code: Outdoor Unit Voltage Detection Circuit Abnormality</strong></p><p>After the power relay is energized, if the measured voltage stays below 50 V for 3 consecutive seconds, the system displays error code &quot;EU.&quot;&#xA0;</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026101313-c5af9452-226c-45ce-be7e-2c3f10cda238-eu_code.png" style="width: 600px;" class="fr-fic fr-dib fr-bordered"></p><h2 id><br></h2>

This code indicates the outdoor unit's voltage test sensor has experienced a fault.

EU Error Code

Troubleshooting
