EL01 Error CodeUpdated an hour ago

EL01 Error Code: Indoor Unit and Outdoor Unit Communication Error

The indoor unit cannot communicate with the outdoor unit.

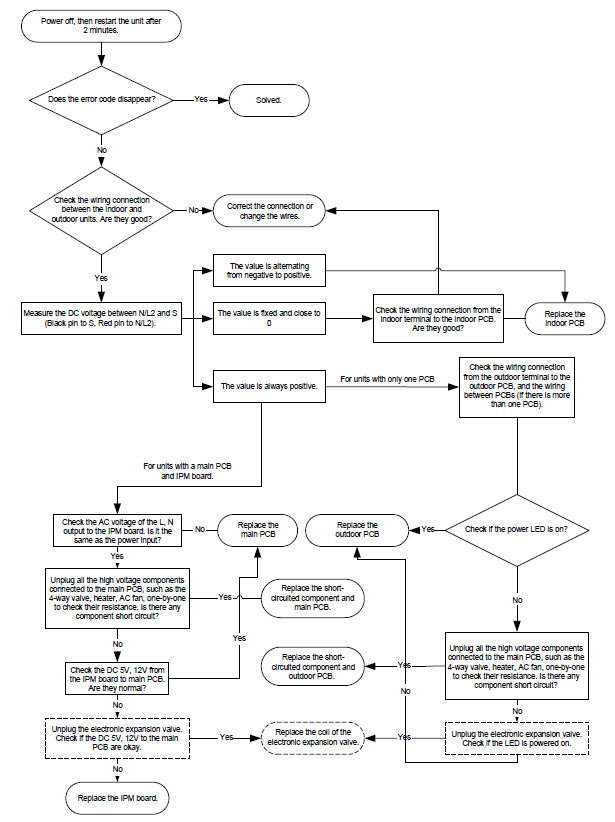

Current Loop Communication (S Communication)

Recommended Parts to Prepare

• Indoor unit PCB
• Outdoor unit PCB
• Reactor

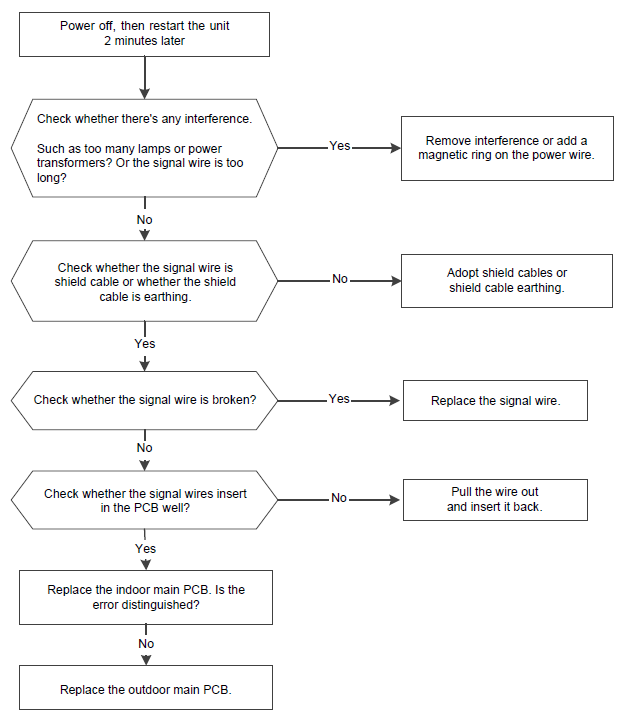

485 Communication (S1, S2 Communication)

Recommended Parts to Prepare

• Indoor unit PCB
• Outdoor unit PCB
• Reactor

Notes

• Use a multimeter to measure the DC voltage between port 2 (or S or L2) and port 3 (or N or S) on the outdoor unit. Connect the red probe to port 2 and the black probe to port 3.
• When the system is operating normally, the voltage alternates between positive and negative values. If the outdoor unit is malfunctioning, the voltage stays positive. If the indoor unit is malfunctioning, the voltage stays at a constant value.

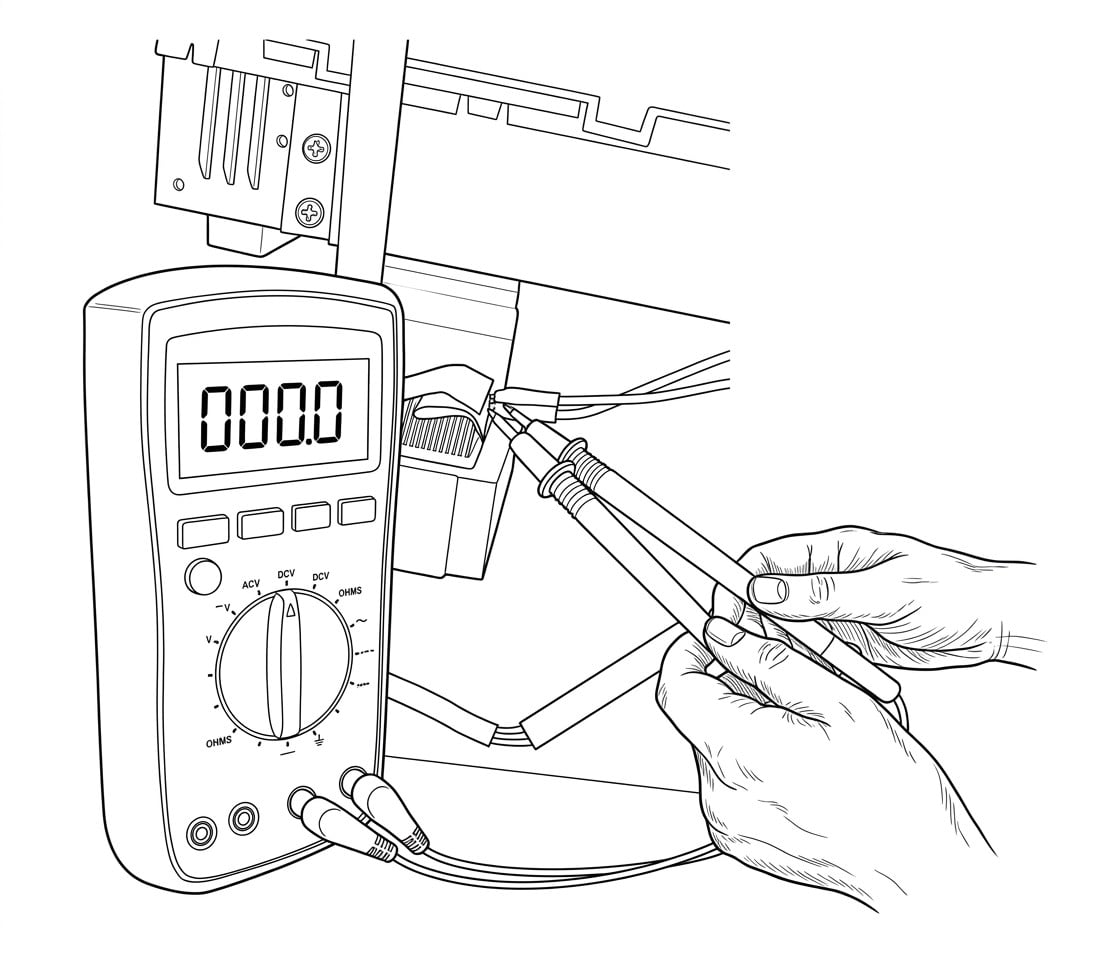

• Use a multimeter to measure the resistance of the reactor that is not connected to the capacitor.
• The reading should be close to 0 Ω. If it is not, the reactor is faulty and should be replaced.
