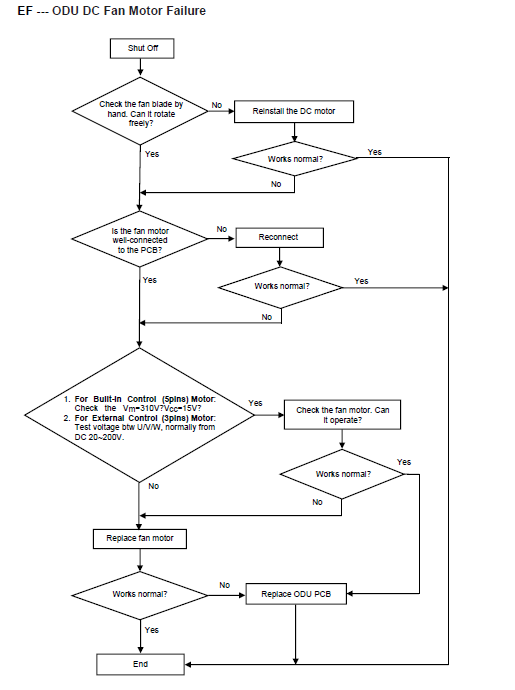

<h2 id="introduction"><u>Introduction</u></h2><p>The &quot;EF&quot; error code indicates the outdoor unit&apos;s DC fan motor has experienced a fault. The error code is for Diamante series systems.&#xA0;</p><h2 id="troubleshooting-diagram"><u>Troubleshooting Diagram</u><u><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025111317-29ab0254-132f-4aa8-95e4-d3af3c8ea96f-wyt17_ef_troubleshooting.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></u></h2>

This error code indicates the outdoor unit's DC fan motor has failed.

EF error code

Troubleshooting

Troubleshooting (Diamante Series)
