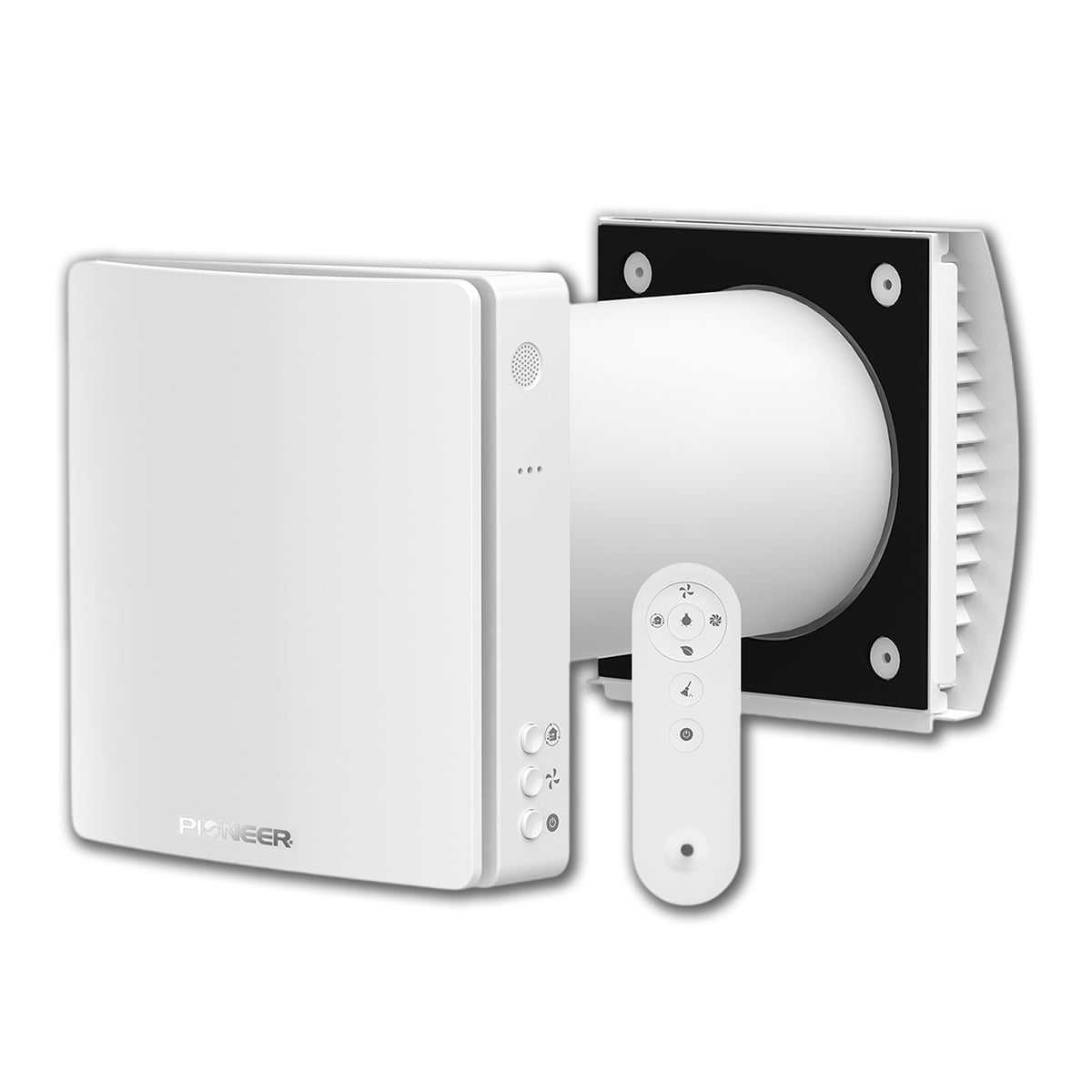

<h2 id="introduction">Introduction</h2>The <a href="https://www.pioneerminisplit.com/collections/energy-recovery-ventilators/products/pioneer-ecoasis-50-ductless-wall-mounted-single-room-wi-fi-energy-recovery-ventilator" target="_blank" rel="noopener noreferrer">ECOasis 50 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV)</a> offers the most energy-efficient way of renewing the air inside homes.&#xA0;The lightweight system neatly recesses within the wall and intelligently exchanges stale indoor room air with fresh, clean outside air. At the same time, the system also filters out and reduces unhealthy indoor air contaminants.&#xA0;Ensuring year-round elimination of air pollutants and impurities, the internal high-tech ceramic energy accumulator housed within offers a heat recovery efficiency of up to 97%.&#xA0;Full System Model NumberERV050AHRMCO2L<h2 id="system-components">System Components</h2>These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026020617-d1a4d80b-d1ed-4974-a5c0-df93c53ed9ff-ecoasis50_system_components.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">

The ECOasis 50 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator offers the most energy-efficient way of renewing the air inside homes.

ECOasis 50 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV) Overview
