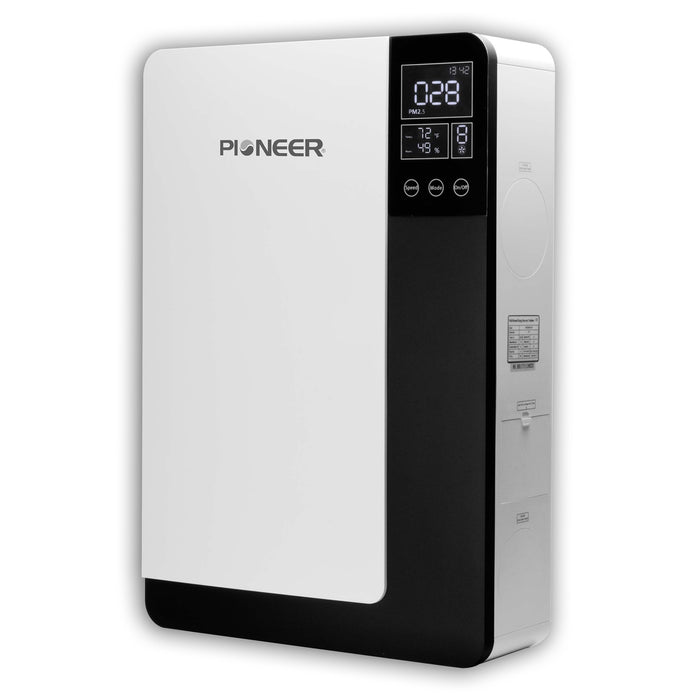

ECOasis 150 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV) OverviewUpdated 2 days ago
Introduction
Elevate your home's air quality with the ECOasis 150 Ductless Wall-Mounted Single-Room Energy Recovery Ventilator (ERV). The cutting-edge system incorporates a PM2.5 sensor, comprehensive air filtration, and a 82% efficiency heat exchanger to deliver a 99% purification efficiency.
Helping maintain a healthy, comfortable indoor environment, this system is equipped with built-in Wi-Fi and a user-friendly touch screen panel for effortless control and monitoring.
The versatile unit is ideal for room sizes ranging from 200-500 square feet, ensuring optimal air quality in most living spaces.
Full System Model Number
ERV150AHRPM25L
For more information, see this catalog.

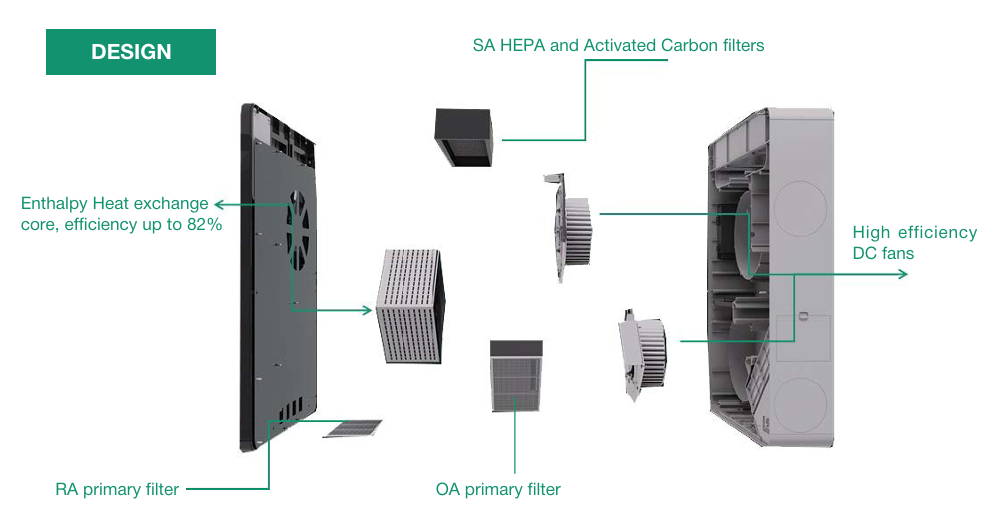

System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system.
| Quantity | Name | Appearance |
| 1 | Installation panel |  |
| 1 | Power cable |  |
| 1 | Remote controller |  |
| 2 | PVC straight ducts |  |
| 2 | OA / EA side / Back cover |  |
| 2 | Air vent flange |  |
| 1 | Air inlet grille |  |
| 1 | Air outlet grille |  |
| 2 | Rain proof cover |  |
| 2 | Rubber sealing ring |  |
| 2 | Back seal ring |  |
| 2 | Side sealing ring |  |
| 5 | Knock-on anchor bolt |  |
| 8 | M3x6 screws |  |
| 8 | M3 nuts |  |
| 4 | Tapping screws |  |
| 1 | Back plate insulation foam |  |
